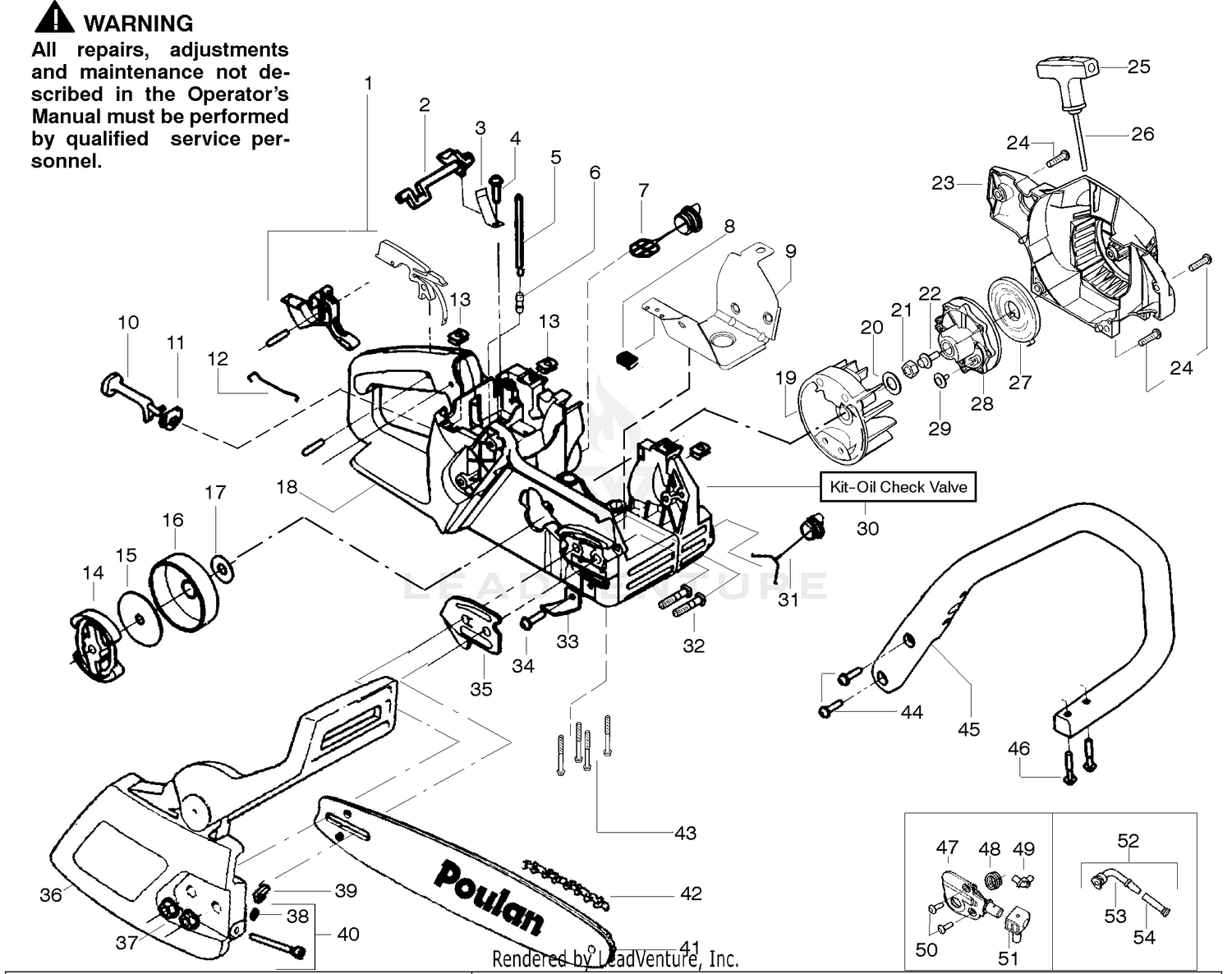

| Ref | Part Number | Description |
|---|
| 1 |
232-24 |
STEM-VALVE Price: $4.03 |
| 2 |
324-4 |
SCREW-HH Price: $0.95 |
| 2 |
530038227 |
Lever-Switch Price: $1.99 |
| 3 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 3 |
530016149 |
Spring-Switch Price: $1.99 |
| 4 |
5-3177 |
WASHER Price: $1.97 |
| 4 |
530015775 |
Screw Price: $1.99 |
| 5 |
3248-4 |
DISCONTINUED Price: Call Us |
| 5 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 6 |
5-2570 |
DISCONTINUED Price: Call Us |
| 6 |
530023877 |
Fitting - Fuel line Price: $1.99 |
| 7 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 7 |
5_0786 |
Key, Square Price: Call Us |
| 8 |
530055322 |
Clip - "U" Price: $1.99 |
| 9 |
5-3868 |
DISCONTINUED Price: Call Us |
| 9 |
530055183 |
Shield - Heat Price: $5.99 |
| 10 |
3272-15 |
PIN-COTTER Price: $0.47 |
| 10 |
530047989 |
Lever-Choke Price: $1.99 |
| 11 |
3257-23 |
KEY-WOODRUFF Price: $6.79 |
| 11 |
530049005 |
Grommet-Choke lever Price: $1.99 |
| 12 |
3-9371 |
BRAKE DRUM Price: $133.65 |
| 12 |
530037809 |
Wire-Throttle Price: $1.99 |
| 13 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 13 |
530015922 |
Nut-Speed Price: $1.99 |
| 14 |
5-3956 |
DISCONTINUED Price: Call Us |
| 14 |
530014949 |
Assy.-Clutch Price: $7.99 |
| 15 |
530015611 |
Washer-Clutch Price: $1.99 |
| 16 |
3214-34 |
Capscrew, Flat Hd. Socket Price: Call Us |
| 16 |
530047061 |
Assy-Drum W/brg. Price: $11.99 |
| 17 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 17 |
530015907 |
Washer - Thrust Price: $1.99 |
| 18 |
323-5 |
SCREW-HH This part replaces 323-33. Price: $0.41 |
| 18 |
545034001 |
Assy-Chassis Price: $49.99 |
| 19 |
530047534 |
FLYWHEEL ASSY This part replaces 530039187. Price: $22.99 |
| 20 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 21 |
5-3275 |
DISCONTINUED Price: Call Us |
| 21 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 22 |
5-3278 |
DISCONTINUED Price: Call Us |
| 22 |
530015920 |
Screw Price: $1.99 |
| 23 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 23 |
530054175 |
Housing-Fan Price: $4.99 |
| 24 |
530015892 |
Screw Price: $1.99 |
| 25 |
32151-21 |
DISCONTINUED Price: Call Us |
| 25 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 26 |
3-9358 |
DISCONTINUE Price: Call Us |
| 26 |
530069232 |
Kit-Rope Price: $3.99 |
| 27 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 27 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 28 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 28 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 29 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 29 |
530016080 |
Screw Price: $1.99 |
| 30 |
3-9362 |
DISCONTINUED Price: Call Us |
| 30 |
530071666 |
Kit-Oil Check Valve Price: $7.99 |
| 31 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 31 |
530057236 |
Assy-Oil Cap Price: $5.99 |
| 32 |
5-3914 |
DISCONTINUED Price: Call Us |
| 32 |
530016133 |
Bolt - Bar Price: $1.99 |
| 33 |
323-32 |
SCREW-HH Price: $1.29 |
| 33 |
530029850 |
Chain Catcher Price: $1.99 |
| 34 |
5-1665 |
DISCONTINUED Price: Call Us |
| 34 |
530015814 |
Screw Price: $1.99 |
| 35 |
281-1 |
PLUG-PIPE, SQH Price: $4.56 |
| 35 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 36 |
237-61 |
O-RING Price: $6.87 |
| 36 |
545139902 |
Assy.-Chain Brake Price: $22.99 |
| 37 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 37 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 38 |
3-9355 |
DISCONTINUE Price: Call Us |
| 38 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 39 |
3-9356 |
DISCONTINUED Price: Call Us |
| 39 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 40 |
3-9357 |
DISCONTINUED Price: Call Us |
| 41 |
5-3277 |
DISCONTINUED Price: Call Us |
| 41 |
952044370 |
BAR 16" .050 3/8 .041 56DL Price: $24.99 |
| 42 |
32121-41 |
PIN-ROLL Price: $6.19 |
| 42 |
581562201 |
ACCY P/PP CHN 16" 56DL 3/8 This part replaces 952051211. Price: $19.99 |
| 43 |
253-44 |
SEAL-OIL Price: $24.63 |
| 43 |
530016132 |
Screw Price: $1.99 |
| 44 |
5-3268 |
DISCONTINUED Price: Call Us |
| 44 |
530015814 |
Screw Price: $1.99 |
| 45 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 45 |
530059173 |
Handle-Front Price: $17.99 |
| 46 |
321-8 |
SCREW-HH Price: $0.34 |
| 46 |
530015940 |
Screw Price: $1.99 |
| 47 |
321-6 |
SCREW-HH Price: $0.25 |
| 48 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 48 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 49 |
3-8863 |
DISCONTINUED Price: Call Us |
| 49 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 50 |
3220-7 |
NUT-JAM Price: $4.09 |
| 50 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 51 |
5-3927 |
DISCONTINUED Price: Call Us |
| 51 |
530019206 |
Block-Seal Price: $1.99 |
| 52 |
5-3875 |
DISCONTINUED Price: Call Us |
| 53 |
5-2643 |
COSHAFT WA Price: $417.01 |
| 53 |
530038373 |
Pickup-Oiler Price: $1.99 |
| 54 |
3-8952 |
DISCONTINUE Price: Call Us |
| 55 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 56 |
3220-17 |
NUT-JAM, LH Price: $6.25 |
| 57 |
5-3928 |
DISCONTINUED Price: Call Us |
| 58 |
3-9011 |
DISCONTINUED Price: Call Us |
| 59 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 61 |
323-10 |
SCREW-HH Price: $0.89 |
| 62 |
3218-3 |
NUT-JAM Price: $0.25 |
| 63 |
5-2638 |
DISCONTINUED Price: Call Us |
| 64 |
3242-2 |
SCREW-SQH Price: $1.29 |
| 65 |
3-8943 |
DISCONTINUED Price: Call Us |
| 66 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 67 |
5-2651 |
DISCONTINUED Price: Call Us |
| 68 |
5-3281 |
DISCONTINUED Price: Call Us |
| 69 |
3-6998 |
DISCONTINUED Price: $2.00 |
| 70 |
5-2648 |
DISCONTINUED Price: Call Us |
| 71 |
5-2646 |
DISCONTINUED Price: Call Us |
| 72 |
5-2652 |
DISCONTINUED Price: Call Us |
| 73 |
3274-19 |
SCREW-HSH Price: $1.42 |
| 74 |
5-2647 |
SPROCKET Price: $139.78 |
| 75 |
3296-36 |
DISCONTINUED Price: Call Us |
| 76 |
217-74 |
BOLT-WHEEL Price: $4.87 |
| 77 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 78 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER This part replaces 231-41. Price: $147.85 |
| 79 |
242-44 |
DISCONTINUED Price: Call Us |
| 80 |
5-1336 |
KEY-SQUARE Price: $8.92 |
| 82 |
323-8 |
SCREW-HH Price: $1.20 |
| 83 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 84 |
3220-5 |
NUT-JAM Price: $0.65 |
| 85 |
3296-24 |
NUT-HEX Price: $4.44 |
| 86 |
327-20 |
DISCONTINUED Price: Call Us |
| 87 |
3-9024 |
DISCONTINUED Price: Call Us |
| 88 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 89 |
5-2635 |
DISCONTINUED Price: Call Us |
| 90 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 91 |
3245-31 |
SCREW-HSH Price: $12.15 |
| 92 |
251-220 |
DISCONTINUED Price: Call Us |
| 93 |
71-1360 |
BEARING This part replaces 251-219. Price: $36.88 |
| 94 |
251-221 |
DISCONTINUED Price: Call Us |
| 95 |
322-1 |
SCREW-HH Price: $0.22 |
| 96 |
3253-4 |
WASHER-LOCK Price: $0.25 |
