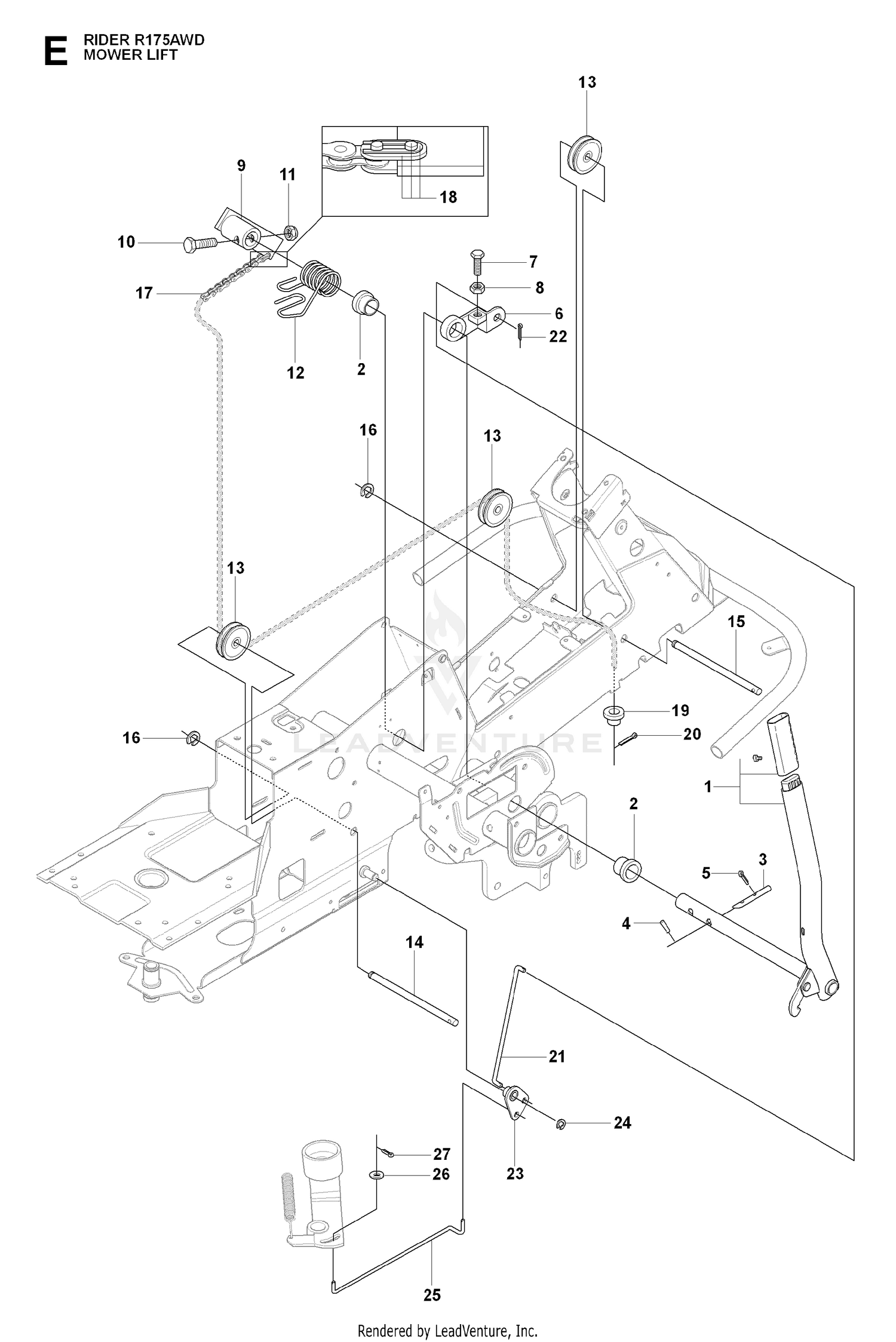

MOWER LIFT / DECK LIFT
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 721125930 | PIN Price: $2.99 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 506905401 | Lever Price: $47.37 |
| 10 | 115-3443 | CRANKCASE ASM Price: $1,731.92 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 506905901 | BUSHING Price: $20.99 |
| 20 | 721618701 | COTTER PIN Price: $3.99 |
| 20 | 98-9398 | CAP-SEALING Price: $6.08 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 721618301 | Split Pin Price: $1.99 |
| 30 | 98-7539 | CAP-SEALING Price: $6.44 |
| 40 | 98-9687 | PLUG Price: $2.86 |
| 50 | 105-3779 | PLUG Price: $8.05 |
| 60 | 98-9597 | PLUG Price: $17.66 |
| 70 | 98-7487 | PLUG Price: $3.18 |
| 80 | 98-9379 | PLUG-EXPANSION Price: $0.76 |
| 90 | 98-9668 | PLUG-EXPANSION Price: $2.17 |
| 100 | 98-9375 | PIN-STRAIGHT Price: $0.41 |
| 110 | 98-9377 | PIN-STRAIGHT Price: $1.00 |
| 120 | 98-9376 | PIN-STRAIGHT Price: $0.41 |
| 130 | 98-9387 | PIN-PIPE Price: $2.92 |
| 140 | 98-9539 | PIN-PIPE Price: $1.15 |
| 150 | 98-9599 | PLUG Price: $6.08 |
| 160 | 98-9630 | PIN-SPRING, START Price: $1.47 |
| 170 | 98-9675 | PLUG Price: $8.54 |
| 180 | 98-9656 | BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 | 120-2559 | PLUG Price: $1.19 |
| 200 | 98-7428 | GASKET Price: $0.68 |
| 210 | 99-3447 | PLUG Price: $3.11 |
| 220 | 106-7056 | GASKET Price: $1.48 |
