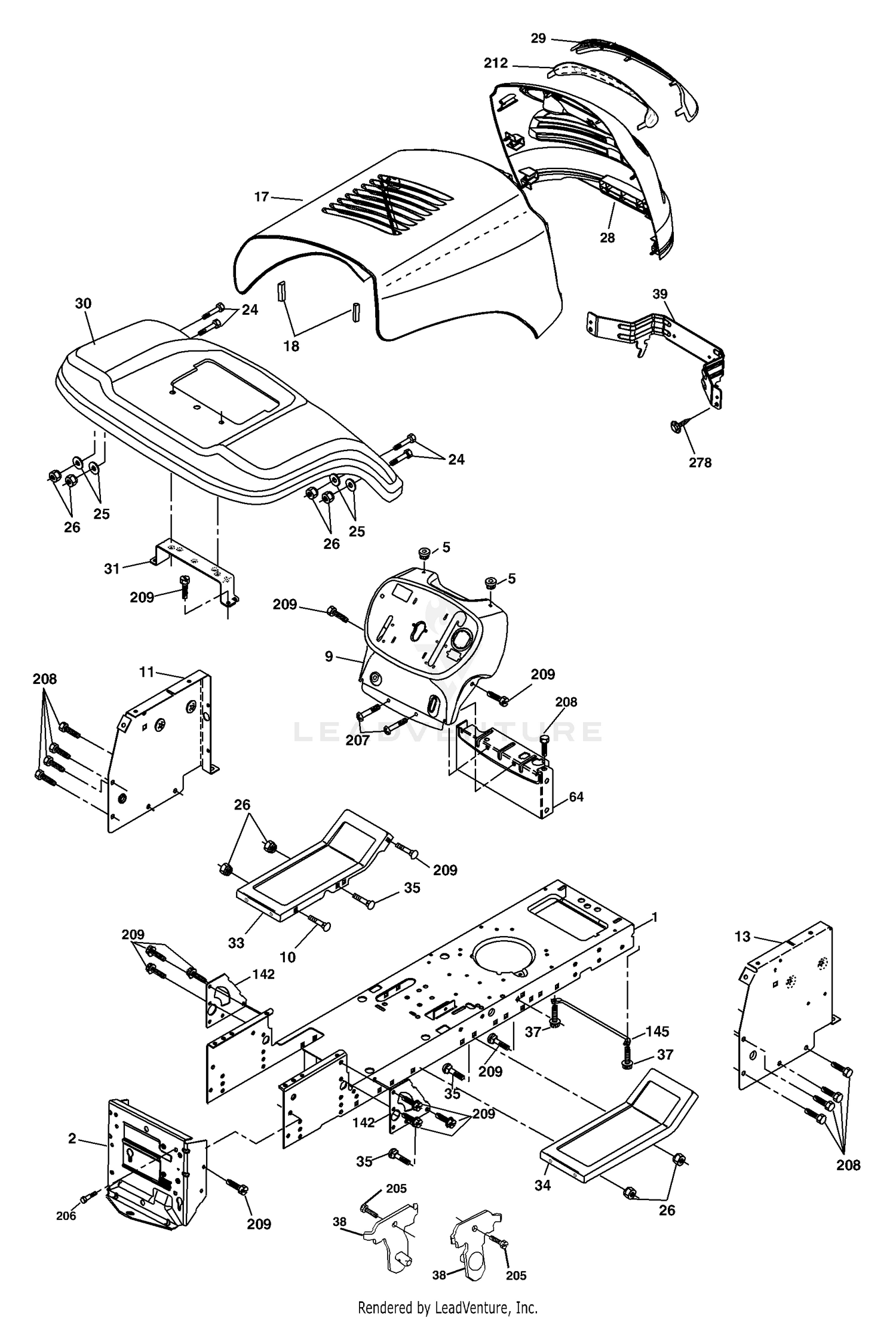

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
94-1410 |
HOLDER-CAN, BEVERAGE Price: $5.81 |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 2 |
321-4 |
SCREW-HH Price: $0.99 |
| 3 |
80-9330 |
AUDIO ALARM ASM Price: $137.61 |
| 4 |
83-1530 |
BRACKET-SUPPORT, BUZZER Price: $13.54 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 6 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 7 |
105-4320 |
SWITCH Price: $94.90 |
| 8 |
83-2280 |
TIMER-DELAY Price: $126.04 |
| 9 |
193510X010 |
Dash Price: Call Us |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
83-0040 |
CONTROL-CHOKE Price: $36.29 |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 11 |
83-0030 |
CONTROL-THROTTLE Price: $39.07 |
| 12 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
105-4306-03 |
BRACKET-RELAY Price: $18.66 |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 14 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 15 |
83-1150 |
ENGINE GROUND WIRE ASM Price: $19.40 |
| 16 |
3290-134 |
SCREW Price: $0.27 |
| 17 |
187559X428 |
Hood Price: Call Us |
| 17 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 18 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 19 |
105-5410 |
HOSE-HYD Price: $25.01 |
| 20 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 21 |
99-3017 |
FITTING Price: $67.26 |
| 22 |
92-5821 |
HEAD-FILTER Price: $136.21 |
| 23 |
107-9531 |
FILTER-OIL, HYD This part replaces 105-0438. Price: $10.71 |
| 24 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 25 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 26 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 27 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 28 |
105-5471 |
DECAL-PANEL, LEFT CONTROL Price: $37.82 |
| 29 |
187567X599 |
Lens Grille Bar Price: Call Us |
| 30 |
104-1476 |
RING-RUBBER Price: $18.49 |
| 30 |
192526X428 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 31 |
321-6 |
SCREW-HH Price: $0.25 |
| 32 |
105-4309 |
PLATE-FILTER Price: $9.16 |
| 33 |
179716X428 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
187569 |
Insert Lens Refl ect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 5479J |
Plug |
Button Blk 359 Dia Choke Price: Call Us 5479J |
