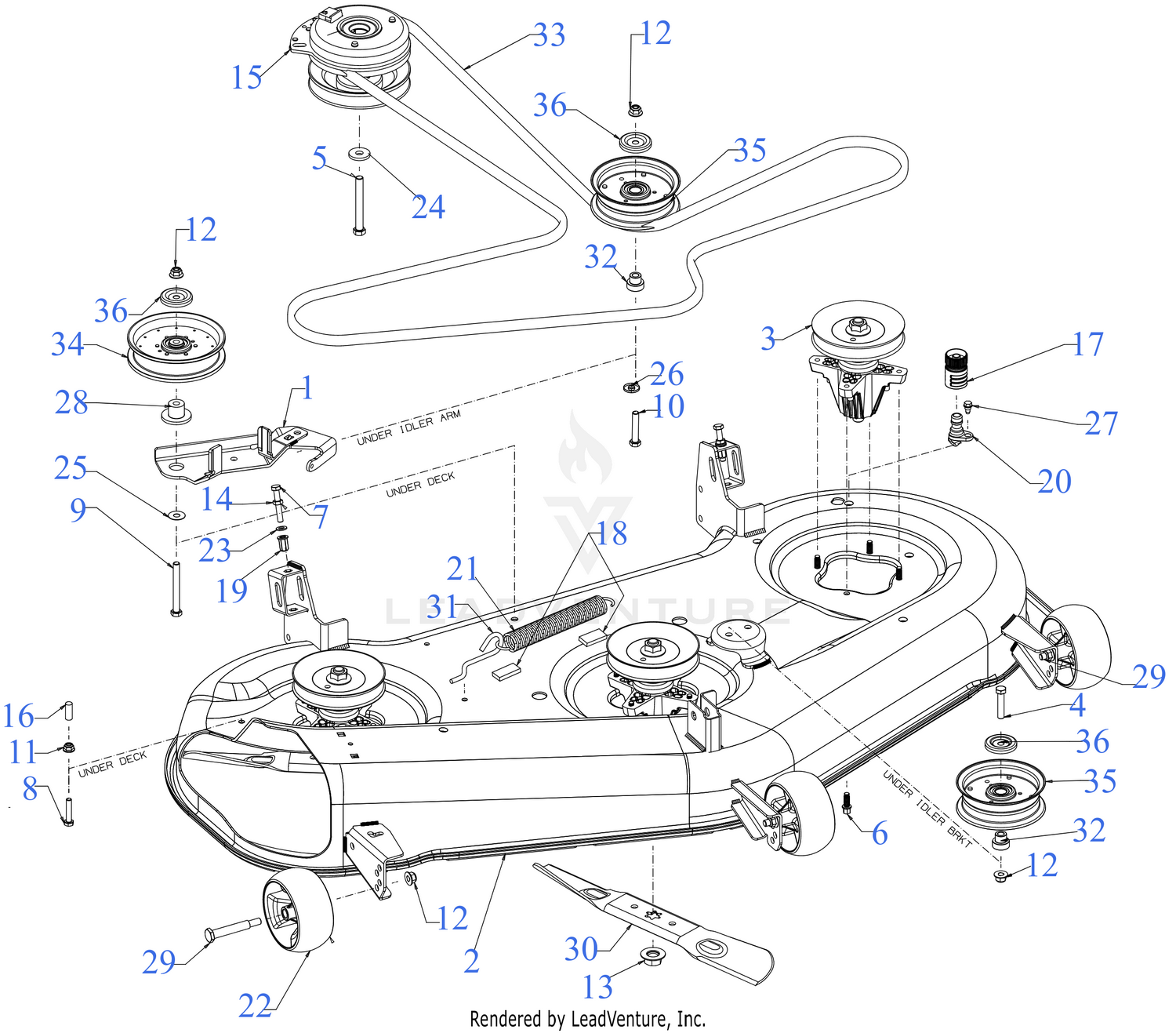

| Ref | Part Number | Description |
|---|
| 4 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 5 |
710-04379A |
SCREW 7/16-20 x 3.5 GR5 Price: $5.35 |
| 6 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 7 |
710-07494 |
SCREW-FULL THREAD 5/16-18 GR5 Price: $3.91 |
| 8 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 9 |
710-3130 |
SCREW 3/8-16 x 3.25 GR8 Price: $8.85 |
| 10 |
710-3144 |
SCREW 3/8-16 x 2.0 GR5 Price: $4.02 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04065 |
NUT Price: $3.68 |
| 13 |
712-0417A |
HEX NUT Price: $6.50 |
| 14 |
712-3007 |
HEX NUT Price: $6.06 |
| 15 |
917-05209 |
ELECTRIC PTO CLUTCH Price: $478.71 |
| 16 |
720-05075 |
VINYL CAP Price: $3.66 |
| 17 |
921-04041 |
WATER NOZZLE ADAPTER Price: $20.19 |
| 18 |
721-04382 |
FOAM TAPE .75" WIDE x .25" THICK Price: $5.89 |
| 19 |
728-05043 |
NUT RIVET 5/16-18 Price: $4.46 |
| 20 |
731-07487 |
DECK WASH NOZZLE Price: $3.86 |
| 21 |
732-04927 |
EXTENSION SPRING Price: $19.91 |
| 22 |
734-04155 |
DECK WHEEL Price: $19.04 |
| 23 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 24 |
736-0322 |
FLAT WASHER .445 x 1.248 x .170 Price: $8.42 |
| 25 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 26 |
736-3072 |
WASHER Price: $4.11 |
| 27 |
738-04502 |
SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
| 28 |
738-05081 |
SHOULDER SPACER Price: $6.51 |
| 29 |
938-3056 |
SHOULDER BOLT .50 x 2.5 x 3/8 -16 Price: $8.53 |
| 31 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 32 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 33 |
954-04329A |
V-BELT B SEC x 148.25 Price: $93.27 |
| 34 |
756-04511B |
FLAT IDLER PULLEY Price: $49.33 |
| 35 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
