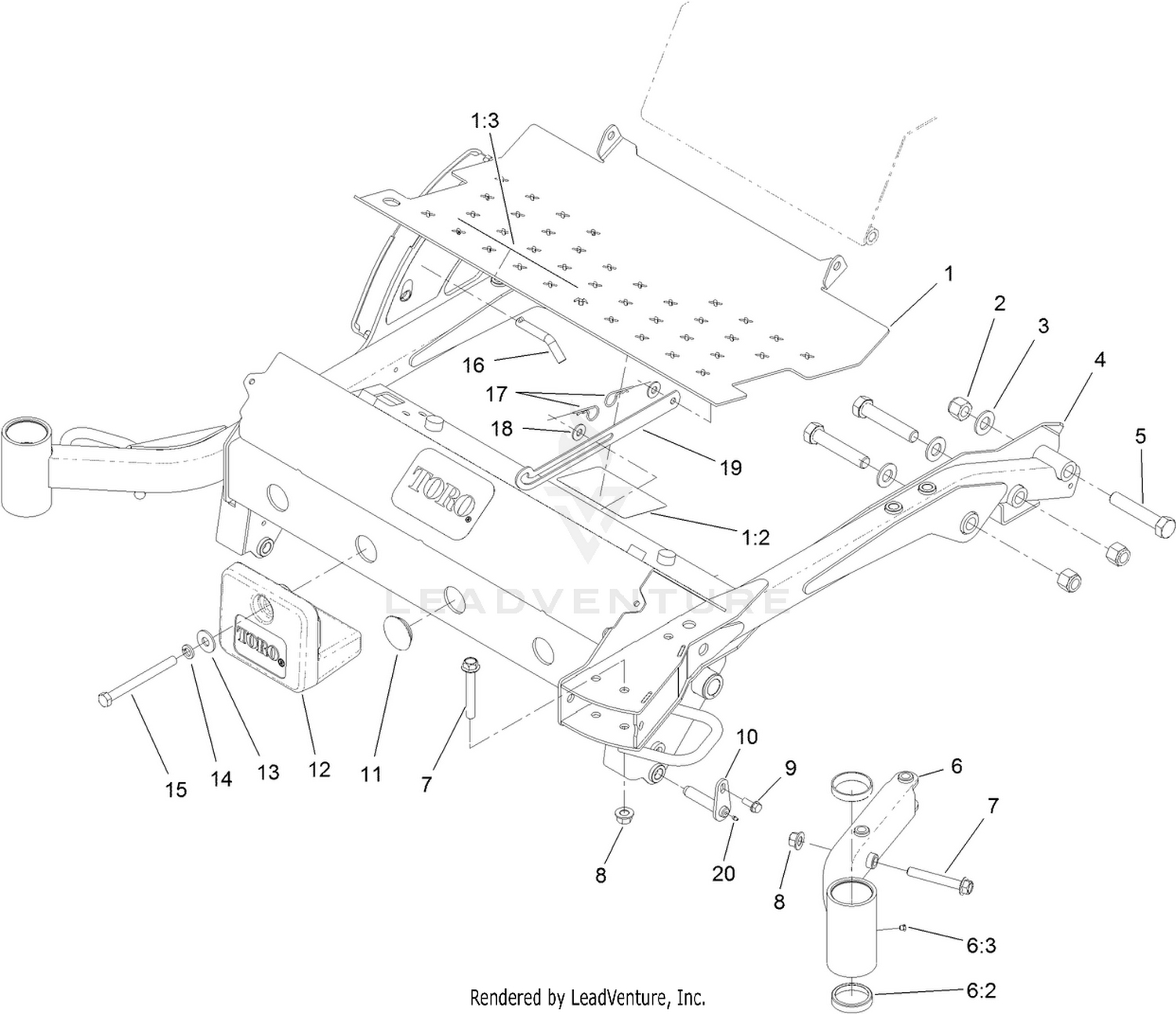

Carrier Frame and Weight Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-9165 | FLOORPLATE ASM Price: $356.12 |
| 2 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
| 3 | 92-5836 | WASHER Price: $5.34 |
| 4 | 121-3356 | CARRIER FRAME ASM Price: $3,139.47 |
| 5 | 328-7 | SCREW-HH Price: $4.00 |
| 6 | 121-3340 | CASTOR ARM ASM Price: $434.85 |
| 7 | 114-8419 | SCREW-HHF Price: $4.17 |
| 8 | 99-5107 | NUT-LOCK Price: $1.77 |
| 9 | 32144-41 | SCREW-TAPTITE Price: $4.79 |
| 10 | 112-1602 | PIN-RETAINER Price: $60.94 |
| 11 | 121-3397 | PLUG-GROMMET Price: $3.37 |
| 12 | 125-2655-03 | WEIGHT Price: $193.78 |
| 13 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 14 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 15 | 325-22 | SCREW-HH Price: $4.26 |
| 16 | 112-9544 | PIN-HOC Price: $6.66 |
| 17 | 3290-255 | PIN-COTTER, HAIR Price: $7.89 |
| 18 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 19 | 121-3394-03 | PROP-FLOOR Price: $9.62 |
