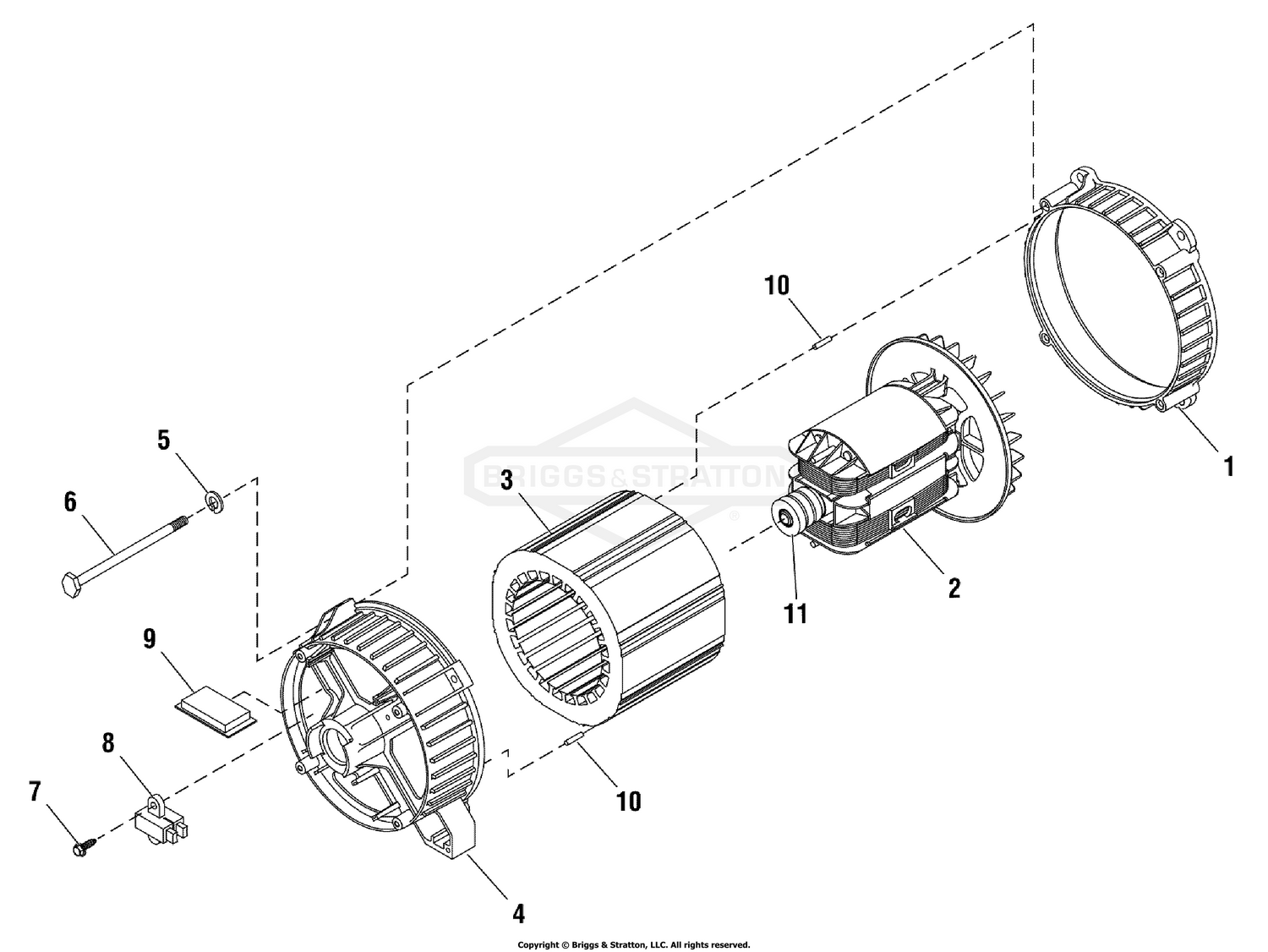

Alternator (200891)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 209599GS | ADAPTER, Alternator Price: $33.00 |
| 2 | 191952GS | ROTOR Price: $387.44 |
| 3 | 191953GS | STATOR Price: $739.99 |
| 4 | 193336GS | RBC, (with O-Ring p/n 189197GS) This part replaces 186060GS. Price: $36.50 |
| 6 | 66449LGS | BOLT Price: $28.08 |
| 7 | 49815GS | HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 8 | 66386GS | BRUSH ASSEMBLY Price: $21.52 |
| 9 | 205858GS | REGULATOR, Voltage Price: $98.29 |
| 10 | 81917GS | PIN Price: $2.79 |
