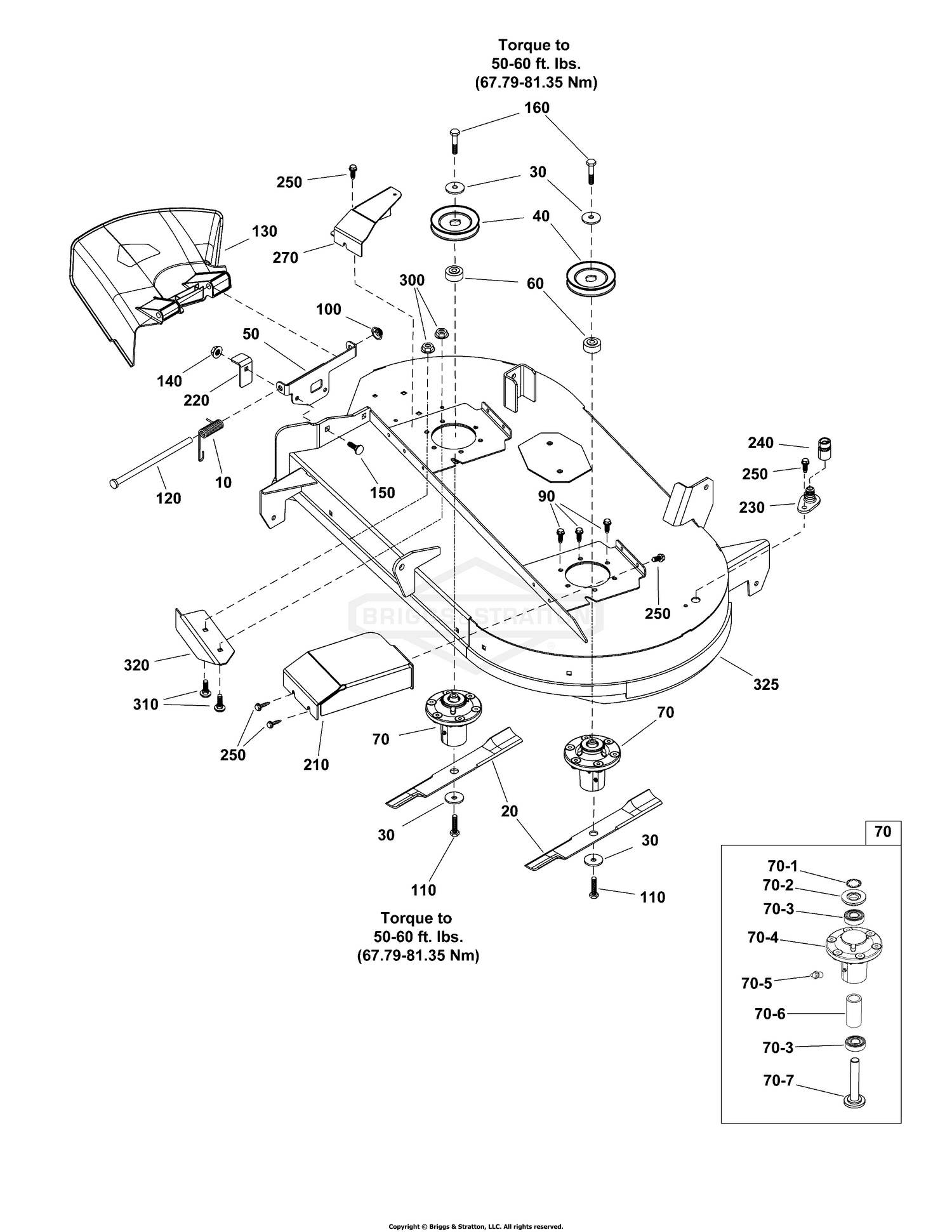

| Ref | Part Number | Description |
|---|
| 10 |
7035813SM |
SPRING, TORSION, SIDE Price: $22.45 |
| 20 |
1758878S |
BLADE SET, 42" DECK (Set of 2 Blades) Price: $51.25 |
| 30 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 40 |
1737835YP |
PULLEY, 4.50 Price: $18.70 |
| 50 |
1758982AYP |
BRACKET, DEFLECTOR Price: $37.82 |
| 60 |
1737457YP |
SPACER, Pulley Price: $9.62 |
| 70 |
84003173 |
ARBOR ASSEMBLY Price: $89.58 |
| 90 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 100 |
703179 |
PUSHNUT, CAP TYPE Price: $3.17 |
| 110 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 This part replaces 2820676SM. Price: $4.70 |
| 120 |
7104640YP |
ROD, Deflector Price: $26.08 |
| 130 |
7104733YP |
CHUTE, SIDE DISCHARGE Price: $81.65 |
| 140 |
5025128SM |
NUT, 3/8-16 HEX SERRA Price: $2.97 |
| 150 |
703815 |
BOLT, RD SQ 3/8-16X1 Price: $3.72 |
| 160 |
1921212SM |
CAPSCREW, Hex Head, 7/16-14 X 1 1/2 This part replaces 1921212FS. Price: $3.85 |
| 210 |
1758992BMYP |
COVER, Pulley, LH Price: $58.97 |
| 220 |
1758593BMYP |
PROP, DEFLECTOR Price: $16.98 |
| 250 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 270 |
1759616AYP |
COVER, Pulley, RH Price: $28.34 |
| 300 |
703115 |
NUT This part replaces 5025392FS. Price: $3.06 |
| 310 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 320 |
84007914 |
BAFFLE Price: $8.99 |
