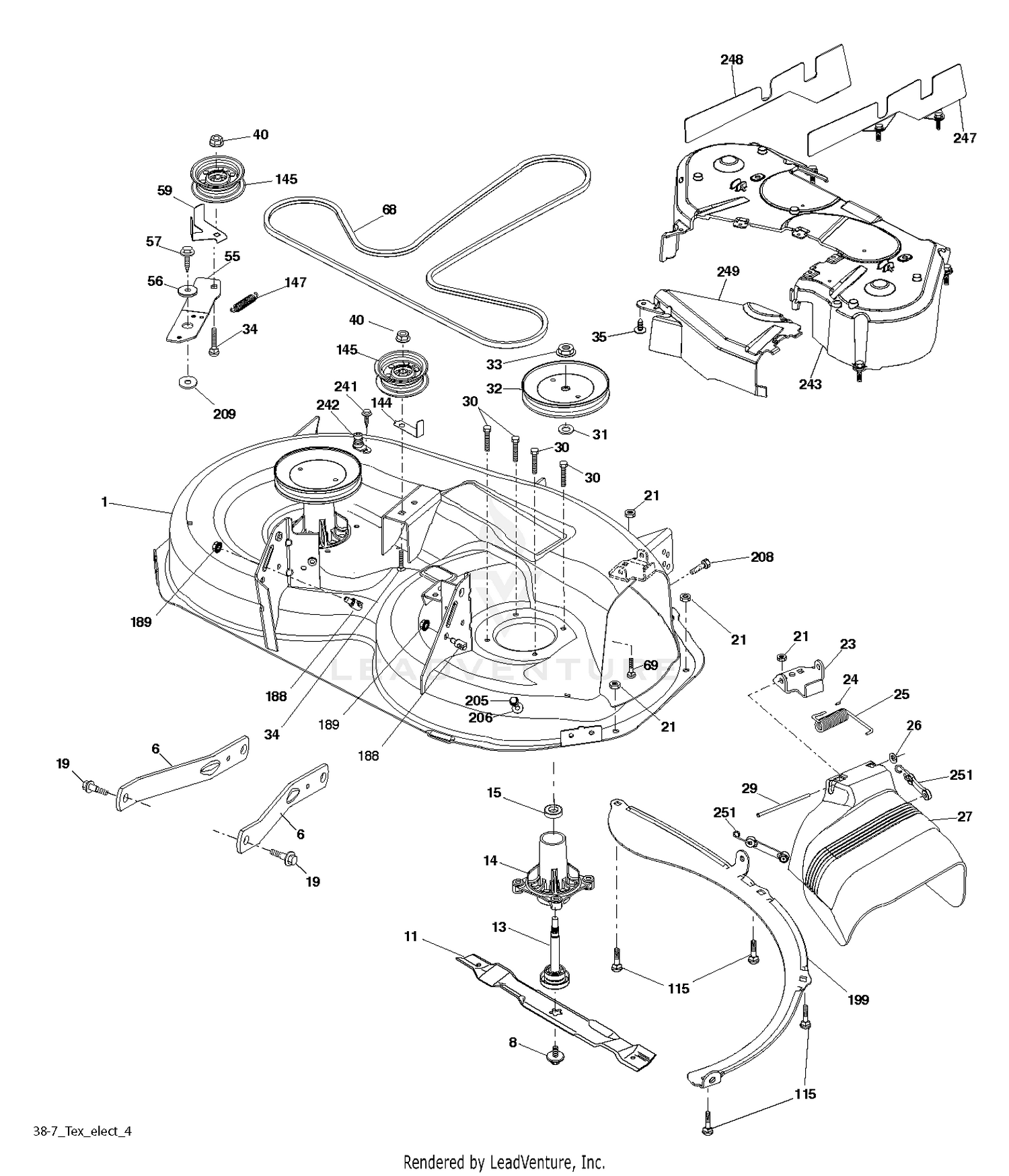

| Ref | Part Number | Description |
|---|
| 1 |
256-247 |
BUSHING-FLANGE Price: $2.17 |
| 1 |
583498001 |
DECK SVCX1.38"194251X418 KIT This part replaces 532444163. Price: $249.99 |
| 2 |
69-7890-03 |
RH BRAKE ARM ASM This part replaces 69-7890. Price: $127.42 |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
69-9210-03 |
LEVER-LATCH, BRAKE This part replaces 69-9210. Price: $15.85 |
| 5 |
321-4 |
SCREW-HH Price: $0.99 |
| 6 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
69-7720-03 |
BRAKE PAWL ASM This part replaces 69-7720. Price: $53.60 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
69-9200 |
PIN Price: $22.07 |
| 9 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 10 |
321-2 |
SCREW-HH Price: $2.79 |
| 11 |
581116302 |
BLADE.2 IN 1.38"DECK.BLACK This part replaces 532193957. Price: $14.99 |
| 11 |
69-7790-03 |
PIN ASM This part replaces 69-7790. Price: $31.86 |
| 12 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 13 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
3296-9 |
NUT-HEX Price: $0.25 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
106-0485-03 |
MOUNT-PEDAL, BRAKE This part replaces 69-7840. Price: $126.17 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 19 |
49-6171 |
PAD-BRAKE, LH Price: $26.16 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
69-7700-03 |
PEDAL ASM This part replaces 69-7700. Price: $51.40 |
| 21 |
323-4 |
SCREW-HH Price: $1.02 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
69-5670 |
CABLE-BRAKE Price: $133.04 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
69-7880-03 |
LH BRAKE ARM ASM This part replaces 69-7880. Price: $127.42 |
| 24 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
597316601 |
Shields This part replaces 532401618. Price: $44.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 68 |
583591101 |
BELT.38ELECTRICAL.DECK.DRIVE This part replaces 532447559. Price: $59.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER This part replaces 532193414. Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 205 |
817640416 |
This part replaces 817490416. Price: $1.92 |
| 206 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 243 |
532432363 |
Price: Call Us |
| 247 |
590528901 |
Guards This part replaces 532432361. Price: $7.99 |
| 248 |
583479201 |
ASSY.SHIELD.DECK.38 This part replaces 532432360. Price: $22.99 |
| 249 |
583298901 |
COVER.CABLE.CLUTCH.38/42"TEX This part replaces 532406514. Price: $17.99 |
| 251 |
583508201 |
KIT.STRAP.BUNGEE.DEFLECTOR.SVC This part replaces 532436087. Price: $7.99 |
