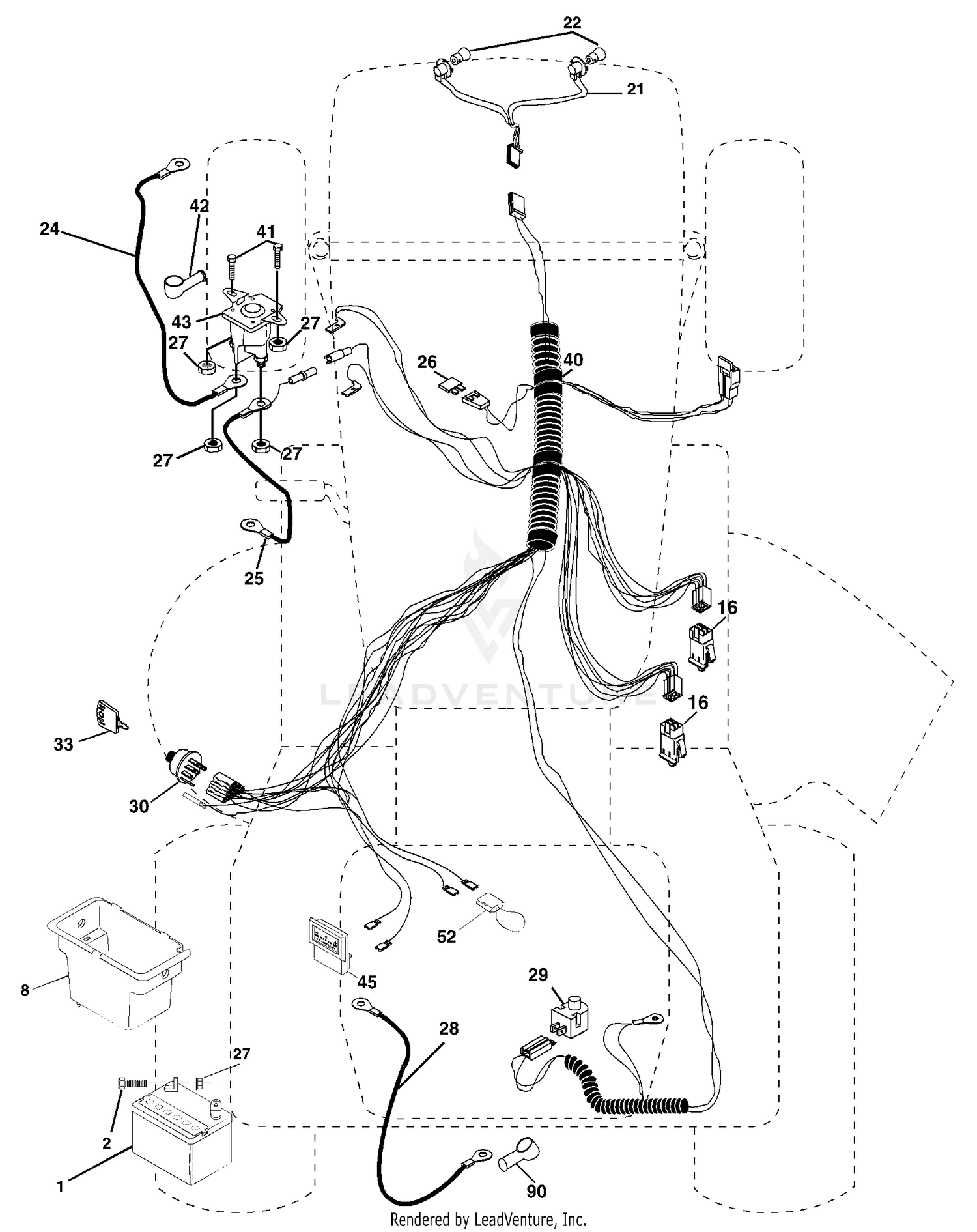

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 1 |
3269-25 |
RIVET-POP Price: $0.27 |
| 2 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20unc x 3/4 Price: Call Us |
| 3 |
40-9520 |
SPACER Price: $0.33 |
| 4 |
40-0330 |
CUSHION-RUBBER Price: $8.08 |
| 5 |
32122-28 |
SCREW Price: $5.02 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 7 |
69-6730-01 |
SKID ASM Price: $264.77 |
| 8 |
176689 |
Battery Box Price: Call Us |
| 8 |
32128-23 |
NUT-HF Price: $1.51 |
| 9 |
3233-9 |
SCREW-CARR Price: $1.97 |
| 10 |
32128-21 |
NUT-HF Price: $0.39 |
| 11 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 12 |
106-0039 |
LH WING DECK ASM This part replaces 13-4989. Price: $1,850.37 |
| 13 |
69-6640-01 |
HINGE-FRONT, LEFT Price: $157.33 |
| 14 |
69-6900 |
SHAFT-HINGE Price: $62.29 |
| 15 |
69-6260 |
MAGNET Price: $58.32 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 16 |
95-3297 |
BEARING-THRUST Price: $4.11 |
| 17 |
69-6670-01 |
HINGE-REAR, LEFT Price: $162.98 |
| 18 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 19 |
94-6760-01 |
BRACKET-LH Price: $94.57 |
| 20 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 21 |
183759 |
Harness Socket Light Price: Call Us |
| 21 |
69-6870 |
PLATE-MAGNET Price: $4.91 |
| 22 |
4152J |
Bulb, Light # 1156 Price: Call Us |
| 22 |
69-6850 |
DISCONTINUED Price: Call Us |
| 23 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 23 |
93-7824 |
DECAL-DANGER Price: $17.85 |
| 24 |
106-6753 |
DECAL-DANGER, CE This part replaces 93-7815. Price: $8.07 |
| 24 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 24 |
4799J |
Cable Battery Price: Call Us |
| 25 |
106-8120 |
DECAL-DANGER, CE This part replaces 93-7273. Price: $9.83 |
| 25 |
146147 |
Cable Battery 6 Ga. Red w/16 wire Price: Call Us |
| 25 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 26 |
175158 |
Fuse Price: Call Us |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 Unc Price: Call Us |
| 27 |
82-4910 |
ROLLER Price: $26.42 |
| 28 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 28 |
4207J |
Cable Ground 6ga. 12 black Price: Call Us |
| 29 |
121305X |
Switch Plunger Nc Gray Price: Call Us |
| 29 |
88-9270-01 |
BRACKET-ROLLER, LH Price: $110.38 |
| 30 |
175566 |
Switch Ign Price: Call Us |
| 30 |
5-0838 |
WASHER Price: $1.09 |
| 31 |
323-7 |
SCREW-HH Price: $0.65 |
| 32 |
94-9824-01 |
BAR-GUARD, FRONT WING LH This part replaces 94-9824. Price: $103.08 |
| 33 |
140401 |
Key Ign Molded Generic Price: Call Us |
| 33 |
32144-11 |
SCREW-THD ROLL, HWH This part replaces 32104-31. Price: $6.99 |
| 34 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 35 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 40 |
179720 |
Harness Ign Price: Call Us |
| 41 |
71110408 |
Bolt Fin Hex 1/4-20 uncx 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
178861 |
Solenoid Price: Call Us |
| 45 |
121433X |
Ammeter Rectangular Price: Call Us |
| 52 |
141940 |
Protection Loop Price: Call Us |
