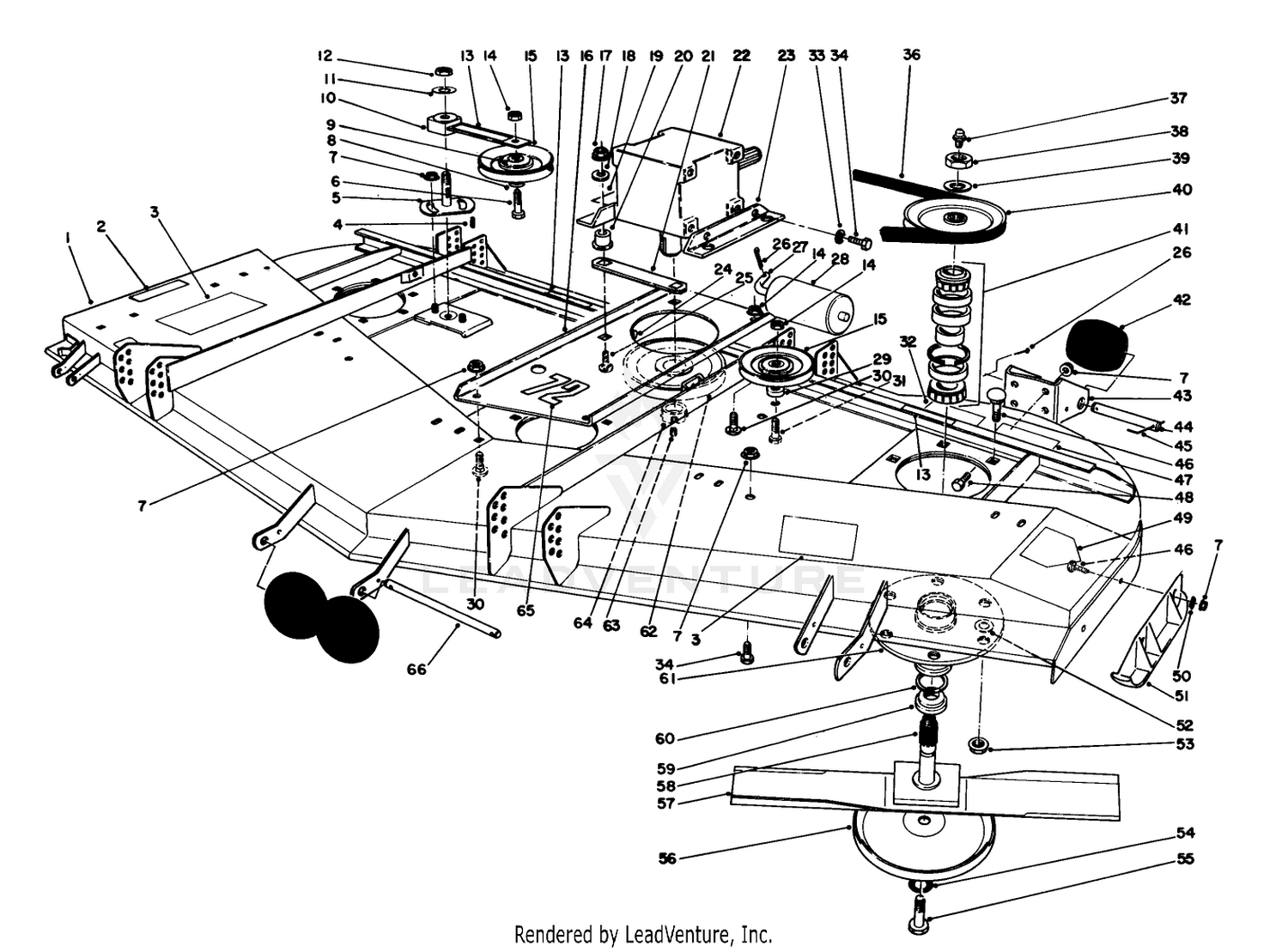

| Ref | Part Number | Description |
|---|
| 1 |
57-0300 |
DISCONTINUED Price: Call Us |
| 2 |
66-6380 |
DECAL-DANGER Price: $8.97 |
| 3 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 4 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 5 |
44-6300 |
PLATE-IDLER Price: $101.69 |
| 6 |
3211-8 |
SCREW-HH Price: $3.50 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 9 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 10 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 11 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 12 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 13 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 14 |
3296-5 |
NUT-HEX Price: $3.09 |
| 15 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 16 |
68-8530-01 |
BASE-GEARBOX This part replaces 68-8530. Price: $162.93 |
| 17 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 18 |
63-8410 |
WASHER Price: $1.76 |
| 19 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 20 |
63-9750 |
MOUNT Price: $18.92 |
| 21 |
68-9890-01 |
COVER-GEARBOX, FRONT This part replaces 68-9890. Price: $47.21 |
| 22 |
108-1370 |
GEARBOX REPLACEMENT KIT This part replaces 68-6810. Price: $862.61 |
| 23 |
68-8560-03 |
BRACKET-GEARBOX This part replaces 68-8560. Price: $57.56 |
| 24 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 25 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 26 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 27 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 28 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 29 |
44-6390 |
SPACER Price: $18.19 |
| 30 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 31 |
3211-9 |
SCREW-HH Price: $1.09 |
| 32 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
| 33 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 34 |
323-4 |
SCREW-HH Price: $1.02 |
| 36 |
57-0240 |
V-BELT Price: $80.80 |
| 37 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 38 |
32146-20 |
NUT-HEX Price: $3.23 |
| 39 |
7-4150 |
WASHER Price: $1.19 |
| 40 |
57-0560 |
PULLEY & HUB ASM, WELDED Price: $84.23 |
| 41 |
46-8530 |
BEARING ASM Price: $93.99 |
| 42 |
29-4820 |
ROLLER Price: $14.88 |
| 43 |
57-0580-01 |
ROLLER BRKT L REAR This part replaces 57-0580. Price: $58.65 |
| 44 |
57-0680 |
SHAFT-ROLLER Price: $8.76 |
| 45 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 46 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 47 |
68-7270 |
DECAL - WARNING Price: $25.31 |
| 48 |
323-7 |
SCREW-HH Price: $0.65 |
| 49 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 50 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 51 |
57-0570-01 |
SKID This part replaces 57-0570. Price: $242.84 |
| 52 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 53 |
32128-21 |
NUT-HF Price: $0.39 |
| 54 |
67-5770 |
WASHER Price: $3.05 |
| 55 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 56 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 57 |
94-1861-03 |
BLADE-24.75IN This part replaces 57-0250. Price: $36.50 |
| 58 |
27-0920 |
SHAFT Price: $158.07 |
| 59 |
27-0950 |
SPACER Price: $29.99 |
| 60 |
253-139 |
SEAL-OIL Price: $12.45 |
| 61 |
61-4160 |
HOUSING-SPINDLE Price: $131.00 |
| 62 |
63-9900 |
GEARBOX PULLEY ASM Price: $135.09 |
| 63 |
3245-9 |
SCREW-SET, HSH Price: $0.81 |
| 64 |
27-6140 |
BUSHING-LOCK, TAPER Price: $84.79 |
| 65 |
57-0280 |
DECAL Price: $12.24 |
| 66 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
