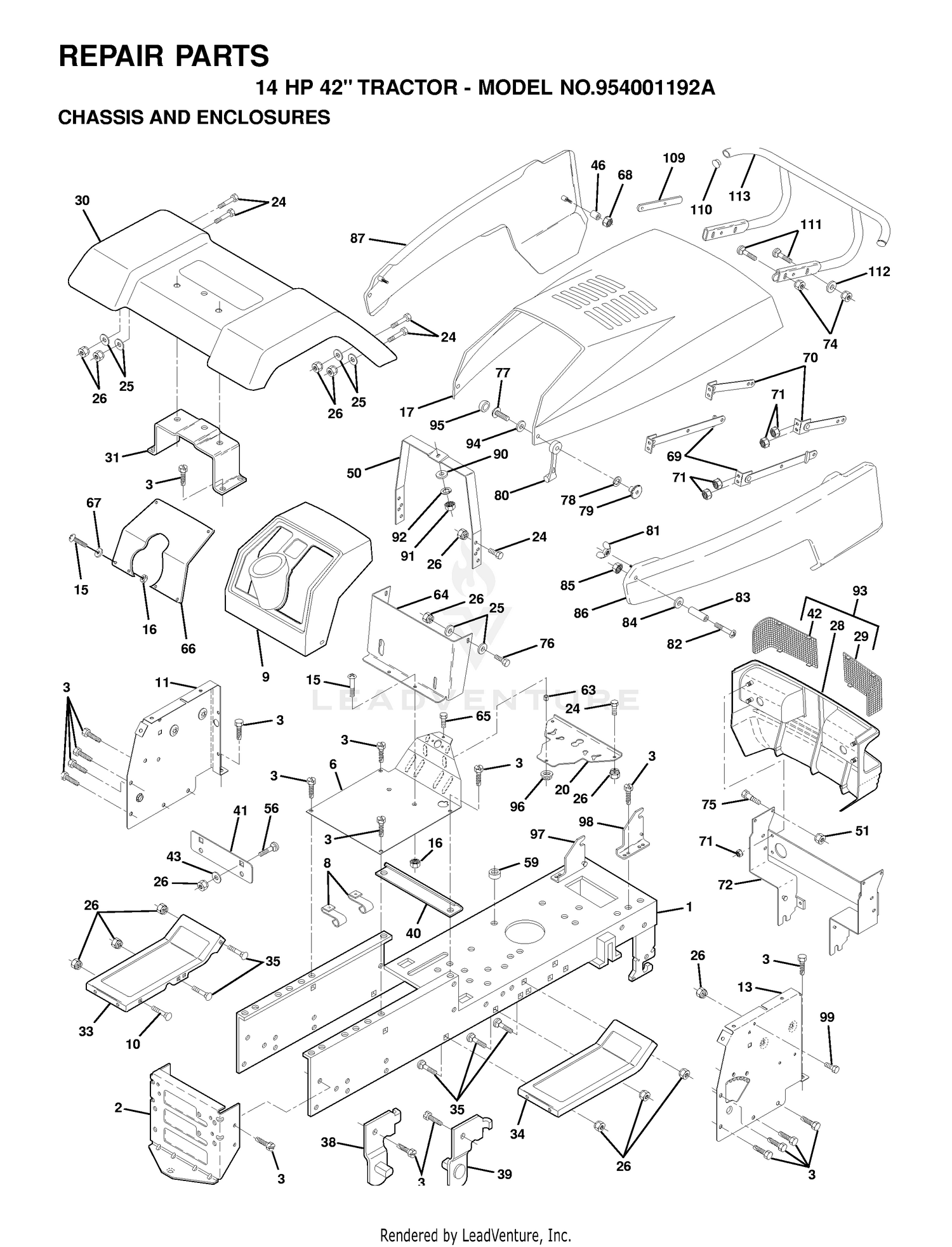

| Ref | Part Number | Description |
|---|
| 1 |
532145501 |
CHASSIS WELD 11GA.95 This part replaces 532140341. Price: $130.75 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 6 |
532125453 |
SADDLE LT Price: $24.99 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 9 |
532140452 |
DASH Price: $32.53 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532136967 |
PANEL DASH LH Price: $13.98 |
| 13 |
532136970 |
PANEL DASH RH Price: $13.87 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
532125454 |
HOOD.HUSQVARNA.ORANGE Price: $361.99 |
| 20 |
532140181 |
PLATE, BATTERY Price: $3.68 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532157236 |
GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127325. Price: $119.99 |
| 29 |
532157069 |
LENS.RH.HUSQVARNA.YTGT.CL This part replaces 532124251. Price: $12.99 |
| 30 |
532166886 |
FENDER This part replaces 532143050. Price: $76.53 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 33 |
532124899 |
ROLL PIN NLA Price: $32.06 |
| 34 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532124914. Price: $9.15 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $6.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $6.99 |
| 40 |
532139977 |
SPACER Price: $5.46 |
| 41 |
532153764 |
CONSOLE This part replaces 532139978. Price: $12.99 |
| 42 |
532157068 |
LENS LH This part replaces 532124250. Price: $13.99 |
| 43 |
819171416 |
Washer 1 17/32 X 7/8 X 16 Ga Price: $3.99 |
| 46 |
532127316 |
RETAINER Price: $3.12 |
| 50 |
532124130 |
SUPPORT ASS'Y Price: $12.22 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 56 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 59 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 63 |
532121236 |
SPACER Price: $2.38 |
| 64 |
532104783 |
DASH ASSY LT NLA Price: $19.83 |
| 65 |
874760532 |
Bolt Fin Hex 5/16 - 18 Unc x 2 Gr. 2 Price: $2.99 |
| 66 |
532143049 |
DASH PLATE Price: $18.99 |
| 67 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 68 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532106784 |
STRAP ASSY LT Price: $82.19 |
| 70 |
532104618 |
STRAP ASSY LT Price: $82.19 |
| 71 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 72 |
532126025 |
SUPT, ASS'Y GRILL Price: $51.81 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 75 |
532007605 |
BOLT This part replaces 532123481. Price: $4.99 |
| 76 |
874760620 |
BOLT This part replaces 874780620. Price: $4.99 |
| 77 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $7.99 |
| 78 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 79 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 80 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 81 |
532146525 |
NUT.WING.LCK.NYL.NOTCH.1/4-20 This part replaces 532123198. Price: $3.99 |
| 82 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $4.99 |
| 84 |
819070818 |
WASHER Price: $5.99 |
| 85 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 86 |
532137946 |
SIDE PANEL RH This part replaces 532138886. Price: $66.23 |
| 87 |
532150302 |
PANEL ASSY This part replaces 532125393. Price: $147.84 |
| 90 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 91 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 92 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 93 |
532157236 |
GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127321. Price: $119.99 |
| 94 |
532110357 |
WASHER LT Price: $2.99 |
| 95 |
532110356 |
SNAP CAP LT Price: $3.99 |
| 96 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 97 |
532110853 |
SUPPORT RH YTH Price: $3.74 |
| 98 |
532110852 |
SUPPORT LH YTH Price: $3.79 |
| 99 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 109 |
532170310 |
BUMPER BRACKET This part replaces 532141461. Price: $4.99 |
| 110 |
532143679 |
PLUG PLASTIC Price: $2.99 |
| 111 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 112 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 113 |
954040608 |
This part replaces 532141460. Price: $51.95 |
| 532005479 |
PLUG |
BUTTON T Price: $4.99 532005479 |
| 532121794 |
COVER |
ACCESS Price: $3.99 532121794 |
| 532125085 |
PLUG-DASH |
T Price: $5.54 532125085 |
