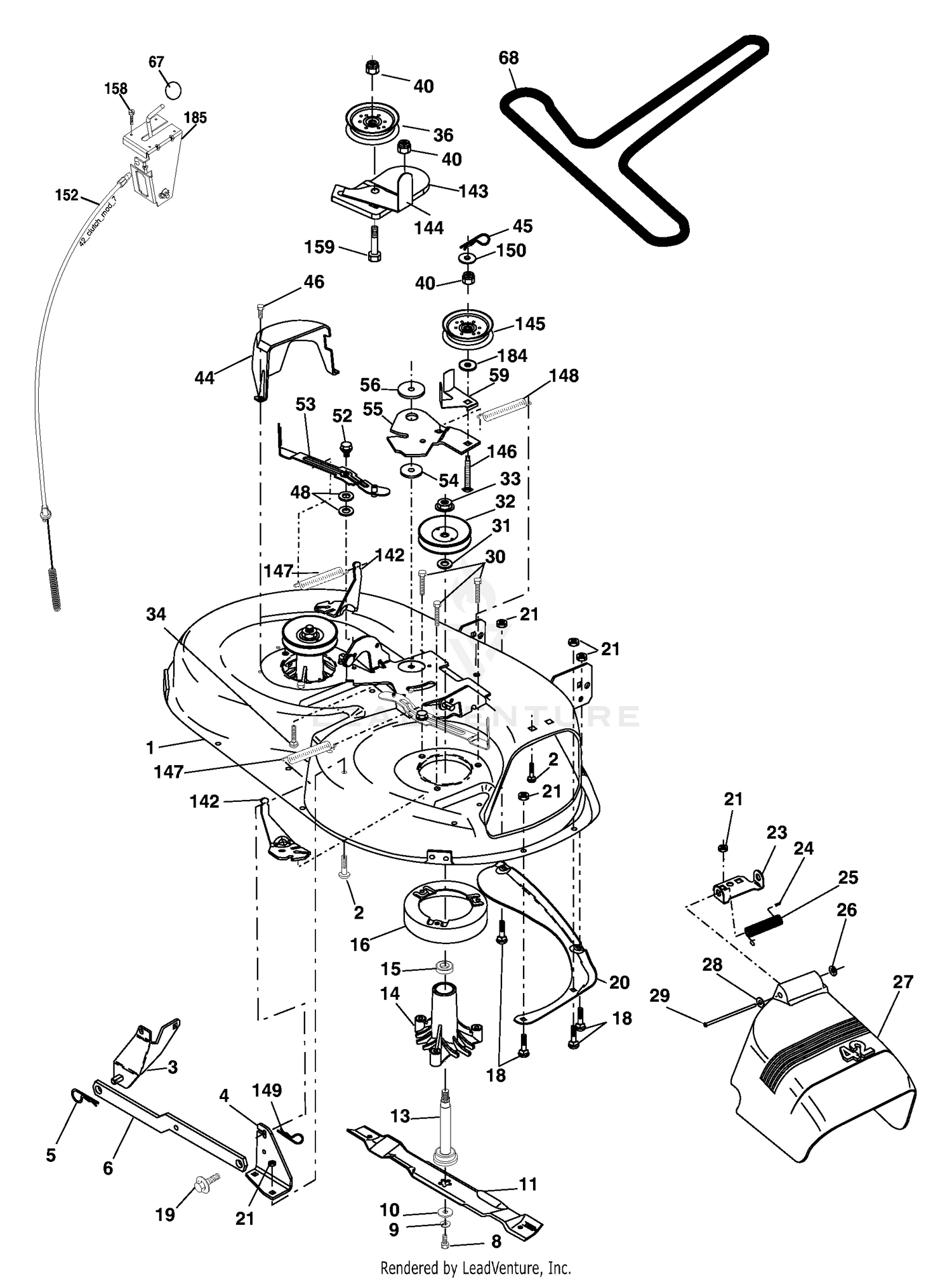

| Ref | Part Number | Description |
|---|
| 1 |
165892 |
Mower Deck Assembly, 42" Price: Call Us |
| 1 |
98-7638 |
LEVER-GOVERNOR Price: $16.01 |
| 2 |
72140506 |
Bolt 5/16-18 x 3/4 Price: Call Us |
| 2 |
98-7639 |
FORK LEVER ASM Price: $500.04 |
| 3 |
138017 |
Bracket Assembly,Sway Bar, Front Price: Call Us |
| 4 |
165460 |
Bracket Sway Bar 38/42" eck Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt, Hex 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 10 |
98-7645 |
BOLT Price: $1.21 |
| 11 |
98-7646 |
BOLT Price: $0.99 |
| 12 |
98-7536 |
WASHER-PLAIN Price: $0.28 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
98-7648 |
WASHER-PLAIN Price: $0.04 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
98-7649 |
SPRING-START Price: $18.62 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
98-7650 |
SPRING-GOVERNOR Price: $9.23 |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol DOD PT Hex Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock Flg. 3/8-16 unc Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, L.H. Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thd. Roll 1/4-20 x 5/8 Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard, TUV Idler Price: Call Us |
| 67 |
149846 |
Knob Custom Oval Price: Call Us |
| 68 |
144959 |
V-Belt Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Zinc Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Cable Clutch 42 In Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Assy. Cable Clutch Price: Call Us |
