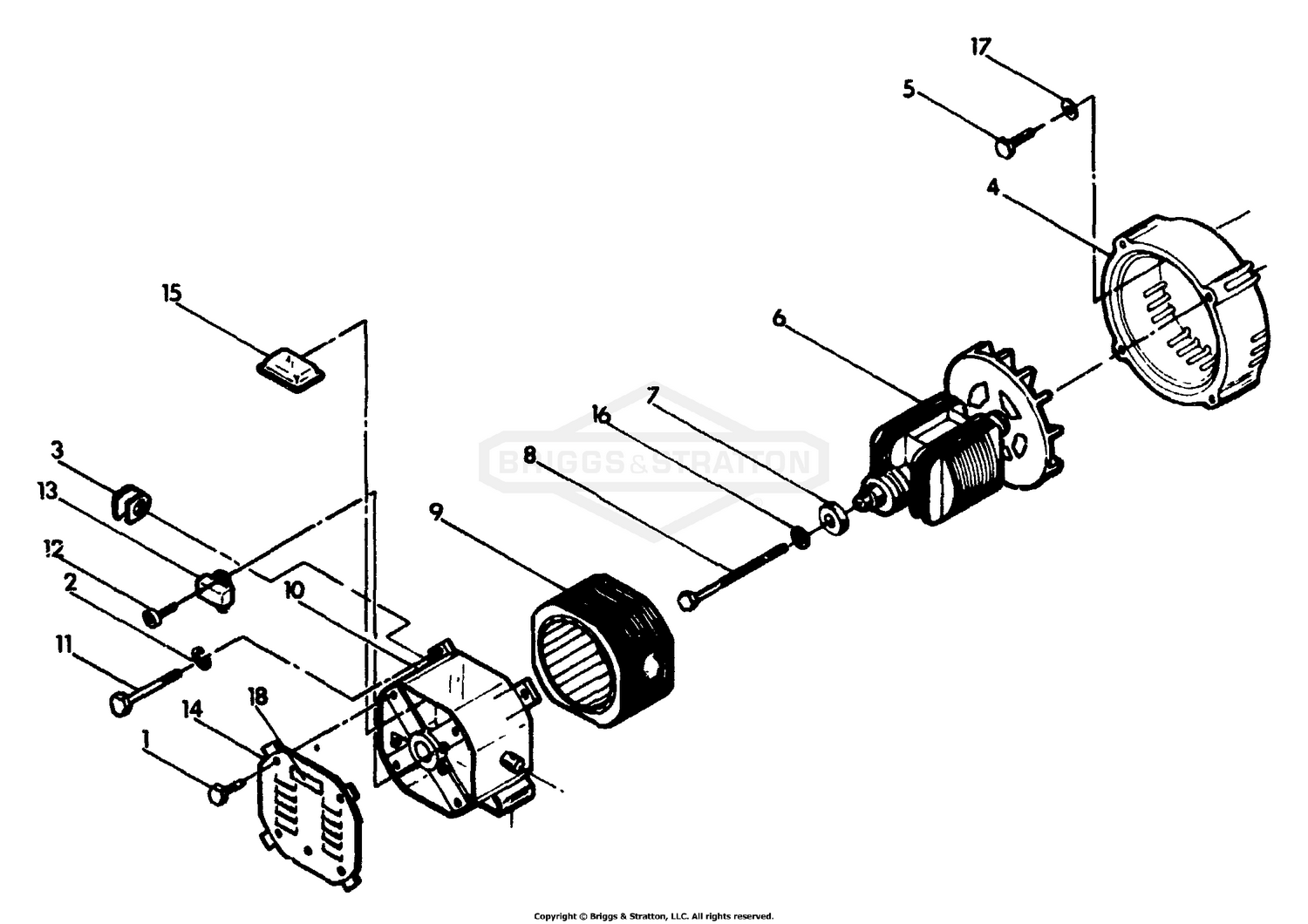

Generator No. 70454

Generator No. 70454

Parts (18)

RefPart NumberDescription
1 74908GS TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69
2 5022097SM CAP This part replaces 22097. Price: $2.75
3 67022GS GROMMET, RUBBER This part replaces 67022. Price: $2.55
4 66365DGS ADPTR, HSNG, 8 HP This part replaces 66365D. Price: $56.99
5 23541 CAPSCREW, HEX HEAD-5/16"-24 x 2-1/2" Price: Call Us
6 74716 ROTOR & FAN ASSEMBLY Price: Call Us
7 65791GS BEARING This part replaces 65791. Price: $32.00
8 75431GS CAPSCREW, Hex Head This part replaces 75431. Price: Call Us
9 74709 STATOR ASSEMBLY Price: Call Us
10 66825 CARRIER, REAR BEARING Price: Call Us
11 66449D BOLT, STATOR-M6-1.00 x 130MM Price: Call Us
12 49815GS HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96
13 66386GS ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52
14 67025 COVER, BEARING CARRIER Price: Call Us
15 66850GS ASSY, RECTIFIER, BRIDGE This part replaces 66850. Price: Call Us
16 67451 FLATWASHER, (SPECIAL)-M8 Price: Call Us
17 22129GS WASHER, Lock This part replaces 22129. Price: $2.61
73083 COVER, BEARING CARRIER Price: Call Us 73083
