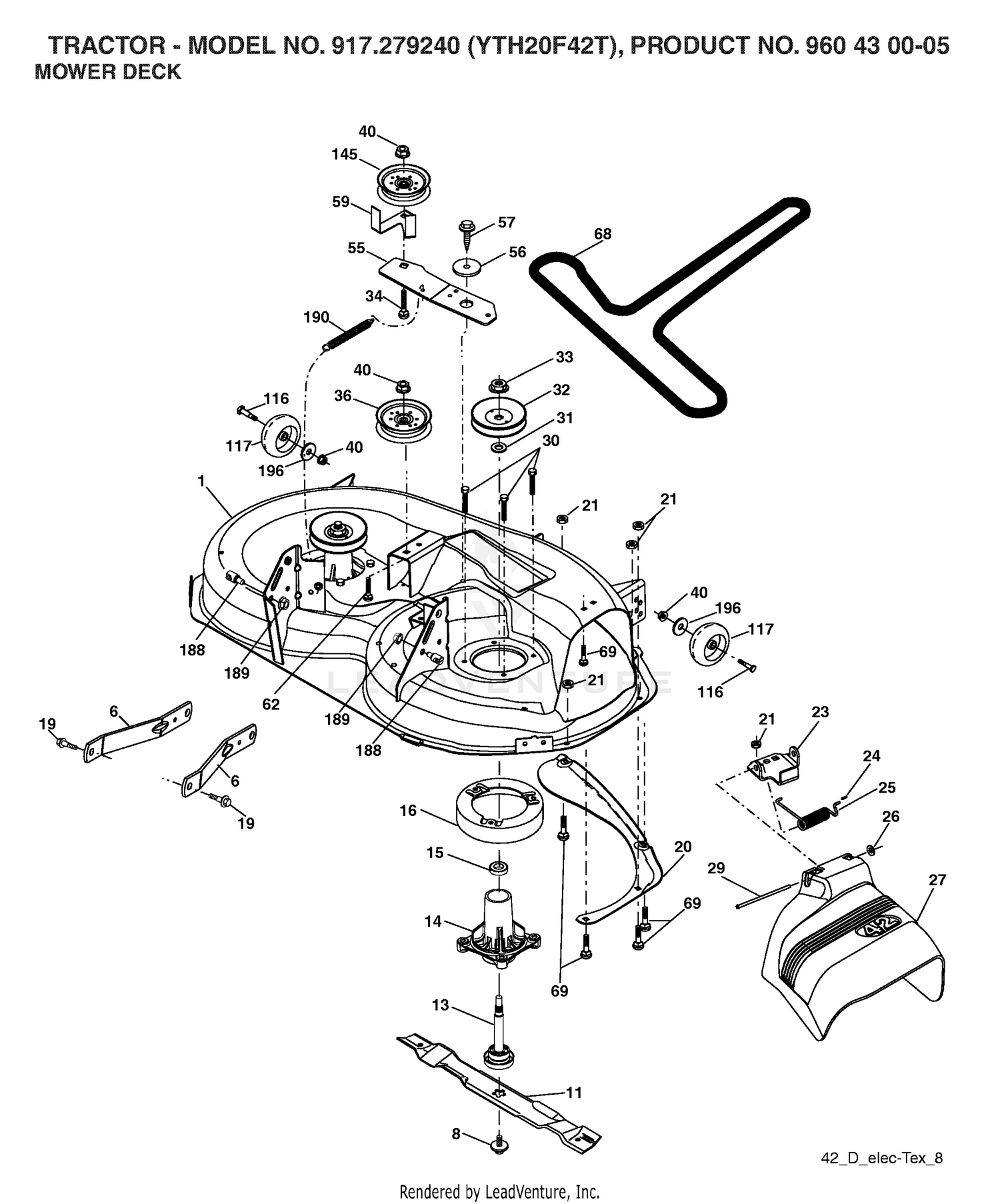

| Ref | Part Number | Description |
|---|
| 1 |
322-10 |
SCREW-HH Price: $0.70 |
| 1 |
598602801 |
Decks This part replaces 532196495. Price: $349.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
13-6050 |
BUSHING Price: $300.98 |
| 4 |
13-6020-01 |
SHEAVE This part replaces 13-6020. Price: $748.39 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 6 |
3247-6 |
SCREW-SET Price: $1.02 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
13-6110-01 |
SPROCKET This part replaces 13-6110. Price: $843.65 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
94-7484 |
BEARING This part replaces 251-245. Price: $152.51 |
| 9 |
3217-9 |
NUT-HH Price: $0.37 |
| 10 |
13-3720 |
SQUARE KEY Price: $8.42 |
| 11 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 11 |
594893101 |
BLADE.42"MULCH.PREMIUM This part replaces 532139775. Price: $14.99 |
| 12 |
325-6 |
SCREW-HH Price: $1.42 |
| 13 |
13-5910 |
SIDE DRIVE SHAFT Price: $246.00 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
5-0738 |
KEY Price: $13.57 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
13-6690 |
COUPLING HALF Price: $257.08 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3247-3 |
SCREW-SET Price: $7.86 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
13-5990 |
DISCONTINUED Price: Call Us |
| 18 |
325-4 |
SCREW-HH Price: $0.95 |
| 19 |
42-1870-01 |
REAR UNIV. SHAFT This part replaces 13-6010. Price: $1,132.32 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
2115-80 |
ZERK Price: $0.76 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
13-5900 |
FRONT DRIVE SHAFT Price: $308.62 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
251-246 |
COLLAR W/SET SCREWS Price: $12.82 |
| 23 |
3257-8 |
KEY-WOODRUFF Price: $4.56 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
2115-84 |
SEE PART BULT#753 Price: Call Us |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
2115-87 |
SEE PART BULL 753 Price: Call Us |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 27 |
72-7990 |
CROSS AND BEARING KIT This part replaces 2115-79. Price: $139.26 |
| 28 |
2115-77 |
SEE PARTS BULT#753 Price: Call Us |
| 29 |
2115-89 |
SEE PART BULL 753 Price: Call Us |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
2115-88 |
DISCONTINUED - SEE PB#753 Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
2115-92 |
DISCONTINUED Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
2115-92 |
DISCONTINUED This part replaces 2115-93. Price: Call Us |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
2115-86 |
DISCONTINUED Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
2115-85 |
ZERK Price: $4.38 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
2115-91 |
DISCONTINUED Price: Call Us |
| 36 |
42-1860 |
FRT UNIV. SHAFT This part replaces 13-6040. Price: $1,173.12 |
| 36 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 37 |
2115-90 |
DISCONTINUED Price: Call Us |
| 38 |
2115-94 |
YOKE Price: $260.15 |
| 39 |
325-5 |
SCREW-HH Price: $1.20 |
| 40 |
283-33 |
DISCONTINUED Price: Call Us |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
3247-2 |
SCREW-SET, HSH Price: $0.68 |
| 42 |
2115-81 |
YOKE Price: $451.36 |
| 43 |
2115-76 |
CENTER PARTS KIT Price: $216.02 |
| 44 |
2115-83 |
DISCONTINUED Price: Call Us |
| 45 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 46 |
2115-82 |
YOKE & SHAFT Price: $716.41 |
| 47 |
2115-78 |
LOCK RING Price: $6.57 |
| 48 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 49 |
13-6680 |
CHAIN Price: $176.29 |
| 50 |
13-6670 |
CONNECTING PIN Price: $12.28 |
| 51 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 52 |
13-4570-01 |
IDLER SPROCKET This part replaces 13-4570. Price: $102.29 |
| 53 |
13-4590 |
CHAIN Price: $450.55 |
| 55 |
325-11 |
SCREW-HH Price: $1.93 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 198 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
