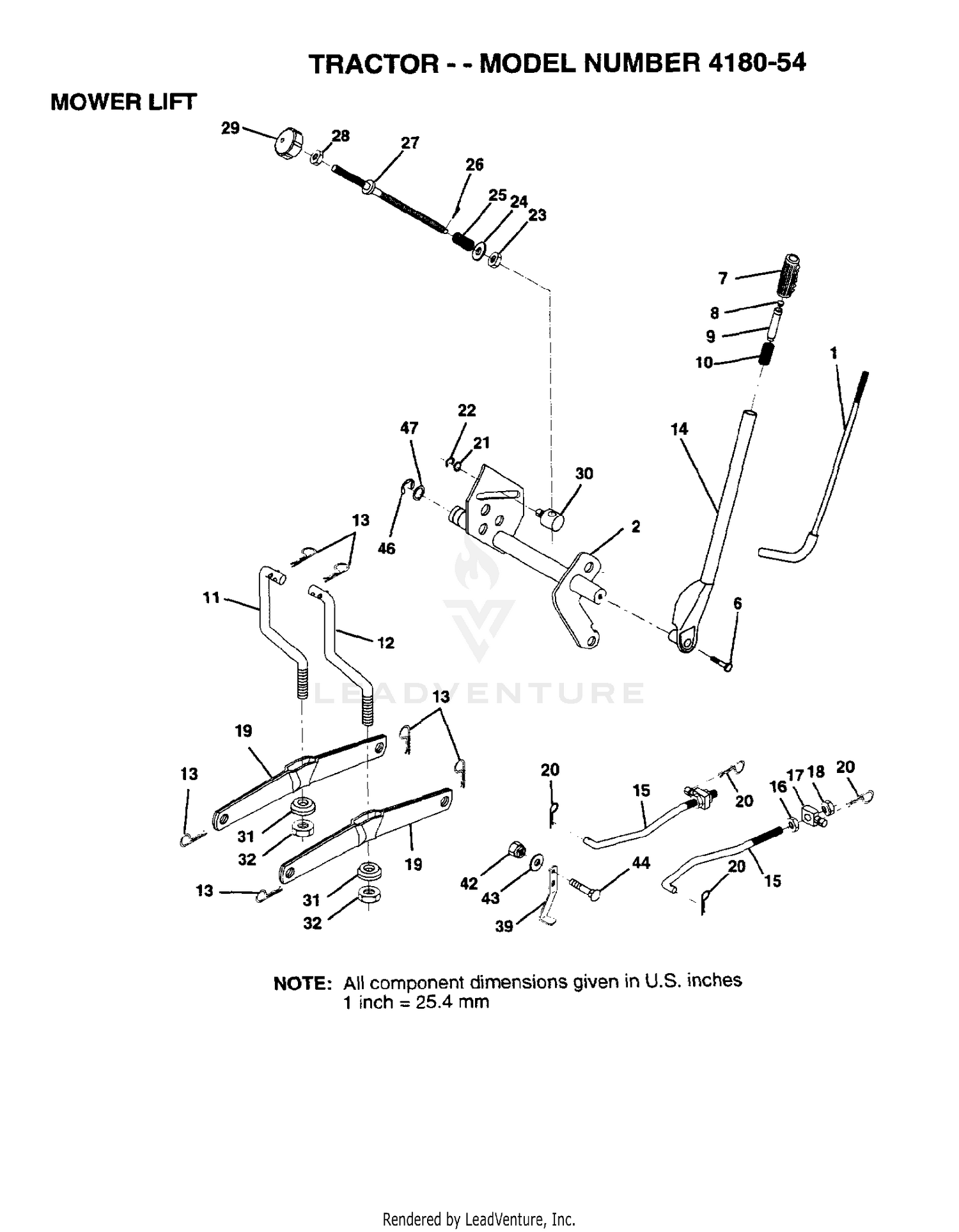

| Ref | Part Number | Description |
|---|
| 1 |
532121006 |
LEVER ROD LT Price: $19.99 |
| 1 |
X-20-1 |
Washer Price: Call Us |
| 2 |
532140673 |
Price: Call Us |
| 2 |
X-22-9 |
Washer Price: Call Us |
| 3 |
X-25-63 |
Washer Price: Call Us |
| 4 |
X-50-37 |
Screw-R.H.M. Price: Call Us |
| 5 |
x-81-1 |
Nut Price: Call Us |
| 6 |
210186-1 |
Stud, Cleaner Price: Call Us |
| 6 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874780624. Price: $3.99 |
| 7 |
235339 |
Brace, Elbow Price: Call Us |
| 7 |
532109413 |
GRIP Price: $2.99 |
| 8 |
275341 |
Gasket-Air Horn Price: Call Us |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
45-054-03 |
Elbow, Air Cleaner Price: Call Us |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
151834 |
Cleaner, Air Price: Call Us |
| 10 |
532002876 |
SPRING Price: $3.99 |
| 11 |
532145537 |
LIFT LINK LH Price: $14.99 |
| 11 |
X-276-7 |
Nut-Wing Price: Call Us |
| 12 |
532145536 |
LIFT LINK RH Price: $7.99 |
| 13 |
532085902 |
RETAINER SPRING This part replaces 532004939. Price: $1.99 |
| 14 |
532121002 |
Lever Assembly, Hand Kit (Inc. 67) (AYP part number) Price: $74.99 |
| 15 |
532127218 |
FRONT LINK Price: $9.99 |
| 16 |
873350800 |
NUT.HEX.JAM.1/2-13 Price: $1.99 |
| 17 |
532175689 |
TRUNNION This part replaces 532130171. Price: $2.99 |
| 18 |
539101331 |
NUT 1/2-13 HEX NYLOC ZD This part replaces 873800800. Price: $1.99 |
| 19 |
532139868 |
ARM.REAR.SUSPENSION Price: $11.99 |
| 20 |
532003146 |
SPRING RETAINER Price: $1.99 |
| 21 |
819151216 |
WASHER Price: Call Us |
| 22 |
812000037 |
KLIP RING Price: $3.99 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
819131016 |
WASHER This part replaces 532067510. Price: $3.99 |
| 25 |
532137150 |
SPRING.COMP.INF.H Price: $3.99 |
| 26 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) Price: $1.99 |
| 27 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $4.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $5.99 |
| 30 |
532110810 |
TRUNION LT Price: $14.99 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT This part replaces 532140302. Price: $3.99 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.99 |
| 39 |
532142992 |
MOWER STOP Price: $3.99 |
| 42 |
873680600 |
LOCKNUT Price: $1.99 |
| 43 |
819131612 |
WASHER GT Price: $3.99 |
| 44 |
872240608 |
Bolt, Carriage 3/8-16 x 1 (AYP part number) Price: $2.99 |
| 46 |
812000022 |
E-RING Price: $3.99 |
