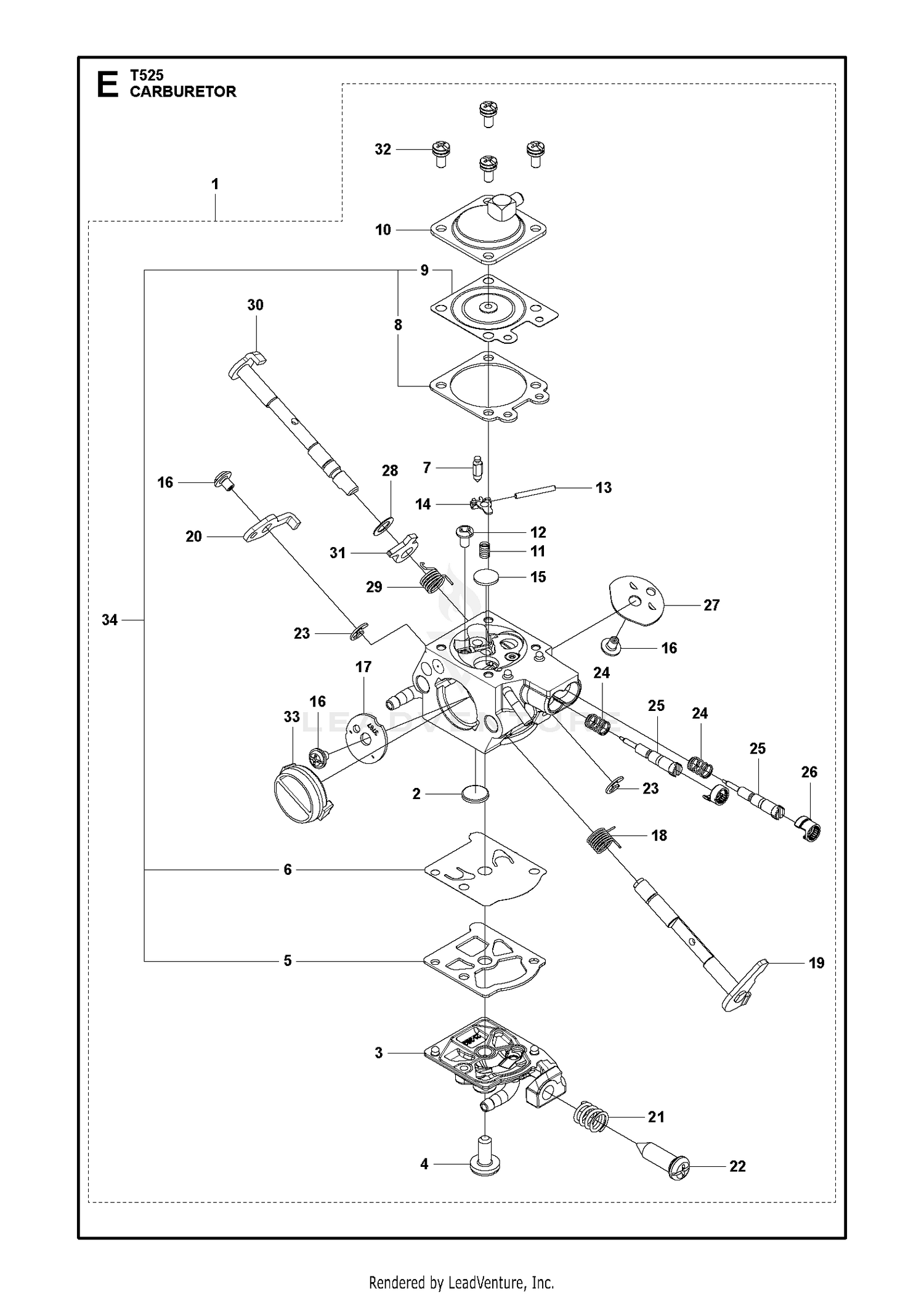

CARBURETOR
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 587870502 | CARBURETTOR T525 This part replaces 587870501. Price: $69.99 |
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 3 | 590219101 | COVER ASSY PUMP Price: $22.99 |
| 4 | 520976301 | SCREW Price: $2.99 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 6 | 596968101 | PUMPS Price: $8.99 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 8 | 516972101 | GASKET Price: $4.99 |
| 9 | 505306801 | DIAPHRAGM Price: $12.99 |
| 10 | 522646001 | COVER Price: $12.99 |
| 11 | 511967601 | SPRING 848L9581C0 Price: $3.99 |
| 12 | 520977301 | SCREW Price: $4.99 |
| 13 | 520977401 | PIN Price: $4.99 |
| 14 | 520977201 | LEVER Price: $4.99 |
| 15 | 516342901 | PLUG Price: $6.99 |
| 16 | 520759801 | SCREW Price: $2.99 |
| 18 | 590219401 | SPRING Price: $3.99 |
| 19 | 590219501 | SHAFT ASSY THROTTLE Price: $24.99 |
| 20 | 590219701 | LEVER THROTTLE Price: $11.99 |
| 21 | 513593201 | SPRING Price: $4.99 |
| 22 | 577815701 | SCREW, IDLE Price: $8.99 |
| 23 | 505056501 | E-RING Price: $3.99 |
| 24 | 578912801 | SPRING Price: $3.99 |
| 25 | 579190901 | NEEDLE HIGH SPEED Price: $11.99 |
| 26 | 578913001 | CAP LIMITER Price: $8.99 |
| 27 | 521790001 | VALVE T207581450 Price: $4.99 |
| 28 | 516524201 | WASHER Price: $2.99 |
| 29 | 590219801 | SPRING Price: $3.99 |
| 30 | 590219901 | SHAFT ASSY CHOKE Price: $22.99 |
| 31 | 521581101 | LEVER Price: $17.99 |
| 32 | 520978801 | SCREW ASSY Price: $2.99 |
| 33 | 590237301 | RING MANIFOLD Price: $7.99 |
| 34 | 585597401 | GASKET KIT Price: $17.99 |
