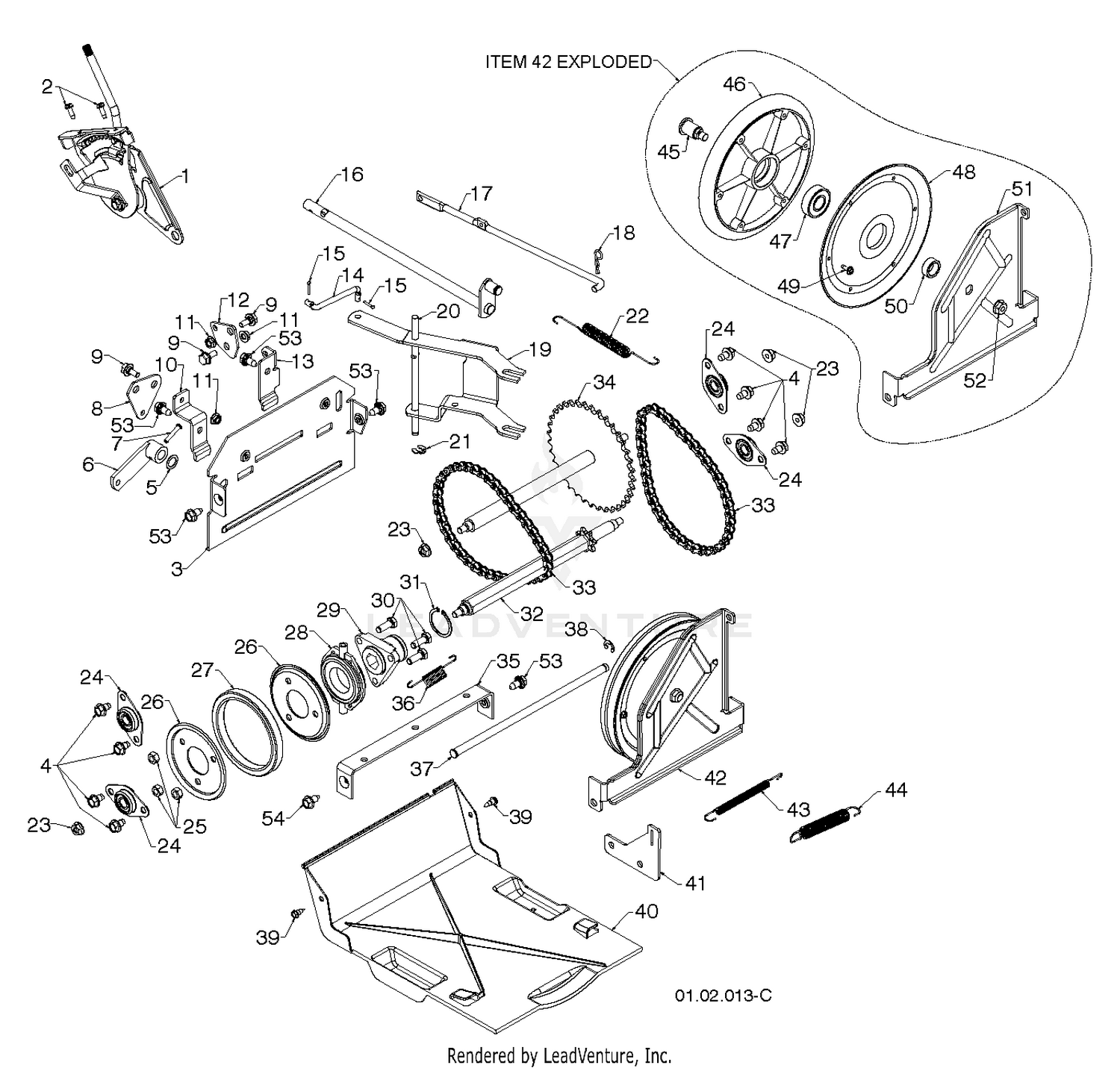

| Ref | Part Number | Description |
|---|
| 1 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 1 |
532198875 |
HEAD ASSY SPEED Price: $44.99 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $3.99 |
| 3 |
532438837 |
PLATE.END.CHAIN.ASM.YELLOW Price: $8.99 |
| 3 |
77-6601 |
PIVOT PIN ASM Price: $153.60 |
| 4 |
325-5 |
SCREW-HH Price: $1.20 |
| 4 |
817490508 |
SCREW LT Price: $3.99 |
| 5 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 5 |
532057079 |
THRUST WASHER Price: $2.99 |
| 6 |
325-6 |
SCREW-HH Price: $1.42 |
| 6 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 7 |
532198580 |
CLEVIS PIN Price: $3.99 |
| 7 |
77-6160-03 |
BRACKET-MOUNT, REAR Price: $250.57 |
| 8 |
532415450 |
PLATE.SHIFTER.BZP Price: $2.99 |
| 8 |
77-6690 |
SPACER This part replaces 77-6690-03. Price: $4.75 |
| 9 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 9 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $2.99 |
| 10 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 10 |
532415433 |
BRACKET.SHIFTER.PLATE.BZP Price: $2.99 |
| 11 |
322-6 |
SCREW-HH Price: $0.45 |
| 11 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 12 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 12 |
95-6292-01 |
BRACKET-MOUNT, LH Price: $118.01 |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
532416864 |
BRACKET.CLUTCH.PLATE.BZP Price: $2.99 |
| 14 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 14 |
532187101 |
LINK, SPEED CONTROL Price: $59.99 |
| 15 |
532700279 |
RETAINER CLIP Price: $3.99 |
| 15 |
95-6291-01 |
BRACKET-MOUNT, RH Price: $118.01 |
| 16 |
532429668 |
KIT.CONTROL.SHAFT.SNO This part replaces 532427542. Price: $29.99 |
| 16 |
95-6294-01 |
BRACKET-COUPLER, QUICK Price: $153.85 |
| 17 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 17 |
532402568 |
ROD.CLUTCH.SWING.PLATE Price: $9.99 |
| 18 |
323-6 |
SCREW-HH Price: $0.66 |
| 18 |
532169675 |
SPRING RETAINER Price: $3.99 |
| 19 |
581422501 |
BRACKET.YOKE.SHIFTER.BLACK This part replaces 532401732. Price: $17.99 |
| 19 |
77-6602 |
PIVOT PIN ASM Price: $99.14 |
| 20 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 20 |
532402310 |
ROD.PIVOT.SHIFTER Price: $3.99 |
| 21 |
325-12 |
SCREW-HH Price: $2.27 |
| 21 |
812000036 |
KLIP RING TI Price: $3.99 |
| 22 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 22 |
532402878 |
SPRING.TRACTION.RETURN Price: $2.99 |
| 23 |
125-9240 |
HOPPER STOP ASM Price: $140.63 |
| 23 |
532751153 |
NUT.LOCK.5/16-18 Price: $1.99 |
| 24 |
532408981 |
BEARING FLANGE BALL Price: $5.99 |
| 24 |
702093 |
SCREW-HH Price: Call Us |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532199509 |
PLATE.RUBBER.WHEEL Price: $5.99 |
| 27 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532440620. Price: $12.99 |
| 28 |
532175344 |
TRUNNION BEARING ASSY Price: $19.99 |
| 29 |
532178613 |
HUB, RUBBER WHEEL Price: $19.99 |
| 30 |
874760514 |
BOLT Price: $3.99 |
| 31 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 32 |
532402187 |
SHAFT.HEX.W/SPOCKET Price: $14.99 |
| 33 |
532401619 |
CHAIN.DRIVE.SNOWTHROWER.#420 Price: $11.99 |
| 34 |
532437303 |
SPROCKET.WELDMENT Price: $29.99 |
| 35 |
532401984 |
BRACKET.YOKE.SHIFTER.SPEED.PNT This part replaces 532415429. Price: $6.99 |
| 36 |
532180135 |
SPRING, BIAS Price: $2.99 |
| 37 |
532402652 |
ROD.PIVOT.SWING.PLATE.SNOW Price: $12.99 |
| 38 |
532428288 |
E-RING.RETAINER.REINFORCED.375 Price: $2.99 |
| 39 |
532184471 |
SCREW, HEX HEAD, TAPPING Price: $2.99 |
| 40 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $17.99 |
| 41 |
532416682 |
BRACKET.TRACTION.SPRING. Price: $3.99 |
| 42 |
585111201 |
PULLEY.PLATE.ASM.DRIVE This part replaces 532402689. Price: $79.99 |
| 43 |
532414557 |
SPRING.TRACTION.IDLER Price: $2.99 |
| 44 |
532178828 |
SPRING, BRAKE Price: $2.99 |
| 45 |
532402504 |
SHAFT.FRICTION.PULLEY.SNOW Price: $7.99 |
| 46 |
585111201 |
PULLEY.PLATE.ASM.DRIVE This part replaces 532401820. Price: $79.99 |
| 47 |
532198791 |
BEARING Price: $11.99 |
| 48 |
532402393 |
RP PULLEY.HALF.TRACTION Price: $59.99 |
| 49 |
817541008 |
SCREW Price: $2.99 |
| 50 |
532402511 |
SPACER BEARING Price: $2.99 |
| 51 |
532422941 |
PLATE.SWING.DRIVE.BLACK Price: $7.99 |
| 52 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $2.99 |
| 53 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $2.99 |
