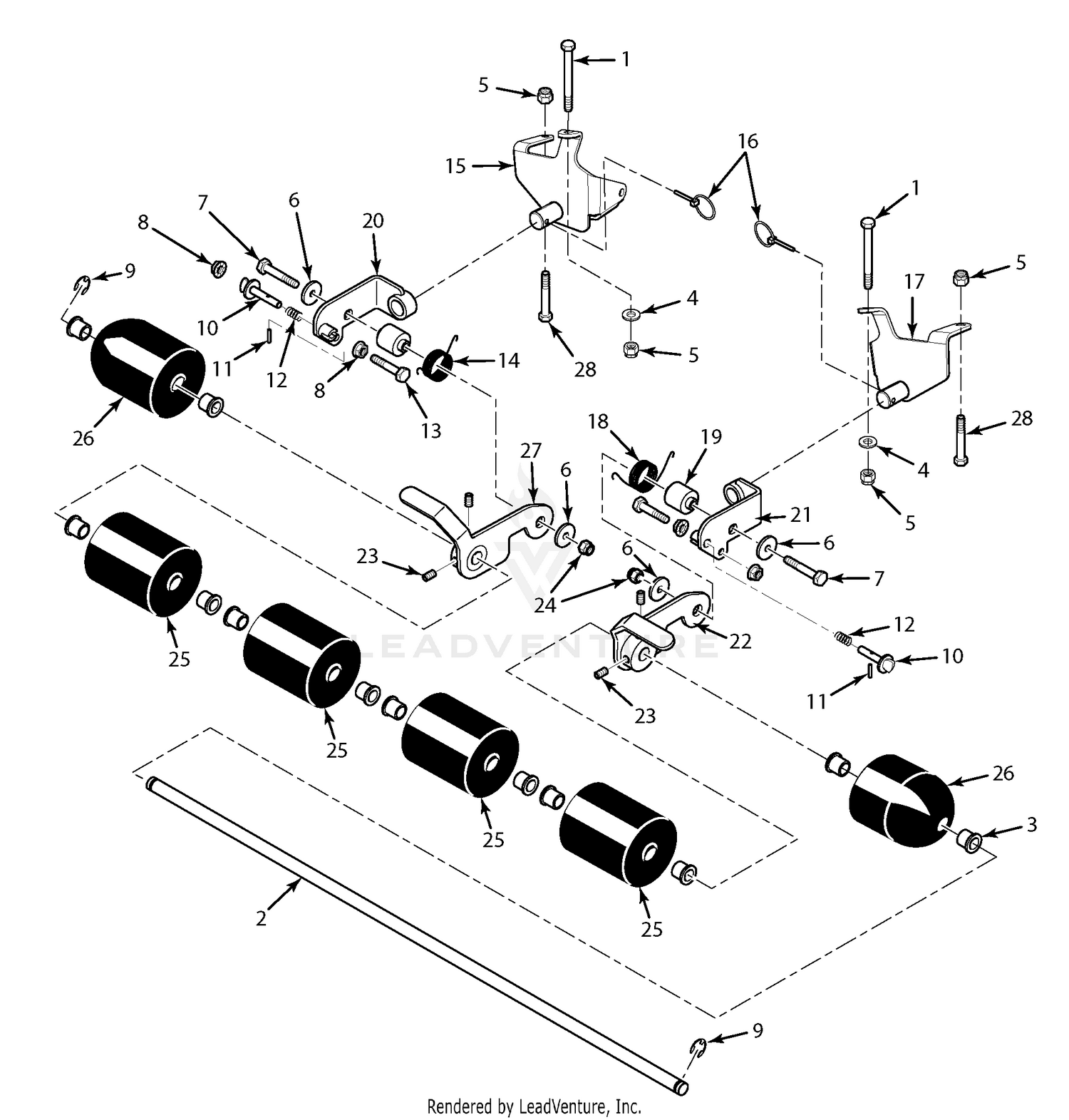

| Ref | Part Number | Description |
|---|
| 1 |
04001-126 |
Bolt, Hex Head 5/16-18 x 5-1/2" Price: Call Us |
| 2 |
43756 |
Roller Shaft Price: Call Us |
| 3 |
48100-24 |
Bushing, .752 Oilite Price: Call Us |
| 4 |
04040-15 |
Flatwasher, 5/16-.378 x .875 x .083 Price: Call Us |
| 5 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 6 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1/2" 7 Gauge Price: Call Us |
| 7 |
04001-22 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 8 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 9 |
04050-02 |
Retaining Ring, .750 External "E" Price: Call Us |
| 10 |
461777 |
Pin, Lift Latch Price: Call Us |
| 11 |
04060-10 |
Pin, Slotted Spring 5/32" x 7/8" Price: Call Us |
| 12 |
482896 |
Spring, Lock Pin Price: Call Us |
| 13 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 14 |
482894 |
Spring, Torsion LH Price: Call Us |
| 15 |
451951 |
Mounting Bracket Weldment, LH Price: Call Us |
| 16 |
04066-02 |
Quick Pin, .188 Dia. Price: Call Us |
| 17 |
451952 |
Mounting Bracket Weldment, RH Price: Call Us |
| 18 |
482895 |
Spring, Torsion RH Price: Call Us |
| 19 |
43648 |
Hub, Striper Price: Call Us |
| 20 |
451669 |
Pivot Weldment, LH Price: Call Us |
| 21 |
451670 |
Pivot Weldment, RH Price: Call Us |
| 22 |
451667 |
Hinge Weldment, RH Price: Call Us |
| 23 |
04012-06 |
Set Screw, 3/8-16 x 1/2" Price: Call Us |
| 24 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 27 |
451668 |
Hinge Weldment, LH Price: Call Us |
