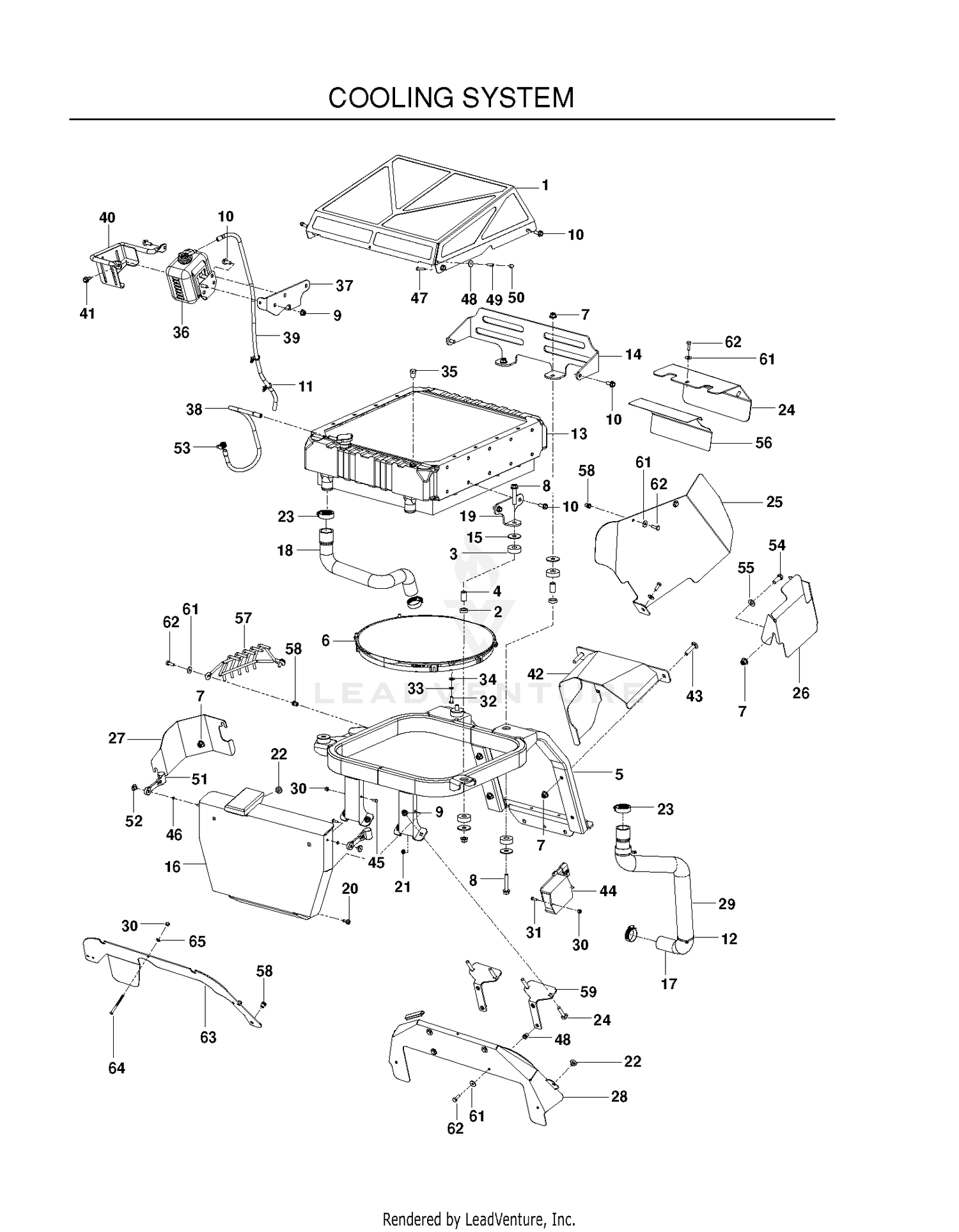

| Ref | Part Number | Description |
|---|
| 1 |
322-14 |
SCREW-HH Price: $1.01 |
| 1 |
574356108 |
SCREEN, DEBRIS, BLK Price: $339.99 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
539116377 |
ISO-MOUNT INSERT Price: $3.99 |
| 3 |
256-219 |
BUSHING Price: $7.59 |
| 3 |
539116378 |
ISO-MOUNT BUSHING Price: $4.99 |
| 4 |
539121367 |
ISO MT. BUSHING Price: $14.99 |
| 4 |
85-8960 |
SPACER Price: $11.44 |
| 5 |
574432702 |
MOUNT, RADIATOR, GRAY Price: $555.99 |
| 5 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 6 |
516018601 |
FAN, ELECTRIC Price: $449.99 |
| 6 |
92-2343-01 |
PEDAL ASM This part replaces 92-2343. Price: $59.71 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 8 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 8 |
525866201 |
HHFS 3/8-16 X 2.0 GD 5 Price: $3.99 |
| 9 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 9 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 10 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 10 |
92-7153 |
DISCONTINUED Price: Call Us |
| 11 |
38-0860 |
DISCONTINUED Price: Call Us |
| 11 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 12 |
539976856 |
TIE, PLASTIC Price: $4.99 |
| 12 |
92-2344 |
TRUNNION Price: $81.16 |
| 13 |
3220-4 |
NUT-JAM Price: $2.49 |
| 13 |
574351601 |
RADIATOR Price: $1,399.99 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
574433802 |
MOUNT, RADIATOR, REAR-BLK Price: $94.99 |
| 15 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
596437601 |
Washers This part replaces 539115516. Price: $2.99 |
| 19 |
574433702 |
MOUNT.RADIATOR.FRONT.BLACK Price: $16.99 |
| 20 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $3.99 |
| 21 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 22 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 23 |
539106321 |
CLAMP Price: $2.02 |
| 24 |
577100302 |
GUARD MUFFLER GRAY Price: $41.99 |
| 25 |
577100402 |
GUARD.LEFT GRAY Price: $66.99 |
| 26 |
577100102 |
GUARD.LH.GRAY Price: $131.99 |
| 27 |
577100002 |
GUARD.RT.REAR.GRAY Price: $26.99 |
| 28 |
577250902 |
Price: Call Us |
| 29 |
575867701 |
SLEEVE, HOSE Price: $7.99 |
| 30 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 31 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 32 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 33 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 34 |
596582301 |
Washers This part replaces 539990055. Price: $2.99 |
| 35 |
574596801 |
FITTING, PIPE, 1/4 NPT Price: $1.99 |
| 36 |
522503501 |
BOTTLE, OVERFLOW Price: $44.99 |
| 37 |
574841002 |
MOUNT, RADIATOR, BLK Price: $25.99 |
| 38 |
574845401 |
HOSE, OVERFLOW, UPPER Price: $3.99 |
| 39 |
574845402 |
HOSE, OVERFLOW, LOWER Price: $5.99 |
| 40 |
575256402 |
GUARD, OVERFLOW, BLK Price: $139.99 |
| 41 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 43 |
539990923 |
RHSNB 3/8-16X1-3/4 Price: $2.99 |
| 44 |
574431401 |
MODULE, FAN REVERSE Price: $279.99 |
| 45 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 46 |
596987301 |
Washers This part replaces 539109552. Price: $2.99 |
| 47 |
539108083 |
SCREW #10-24 X 1-1/8 ZD SPEC Price: $2.99 |
| 48 |
539108084 |
WASHER Price: $3.99 |
| 49 |
532007206 |
SPACER LT This part replaces 539108085. Price: $5.99 |
| 50 |
539108086 |
NUT 10-24 ACORN ZD Price: $3.99 |
| 51 |
532109808 |
LATCH.HOOD. This part replaces 539108088. Price: $5.99 |
| 52 |
596987401 |
Nuts This part replaces 539108089. Price: $2.99 |
| 53 |
576286001 |
CLAMP, WORM GEAR, NO. 4 Price: $1.99 |
| 54 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 55 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 56 |
577100701 |
BARRIER.HEAT Price: $48.99 |
| 57 |
577100601 |
GUARD, MUFFLER Price: $248.99 |
| 58 |
539108147 |
KNURLED INSERT Price: $2.99 |
| 59 |
577251402 |
Price: Call Us |
| 60 |
539990861 |
RHSNB 5/16-18X1 3/4 Price: $2.99 |
| 61 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 62 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 63 |
577100502 |
GUARD.FRONT GRAY Price: $46.99 |
| 64 |
577503401 |
SCREW.#10-24X2-1/2.GR5.ZD Price: $16.99 |
| 65 |
539105408 |
WASHER #10 Price: $2.99 |
