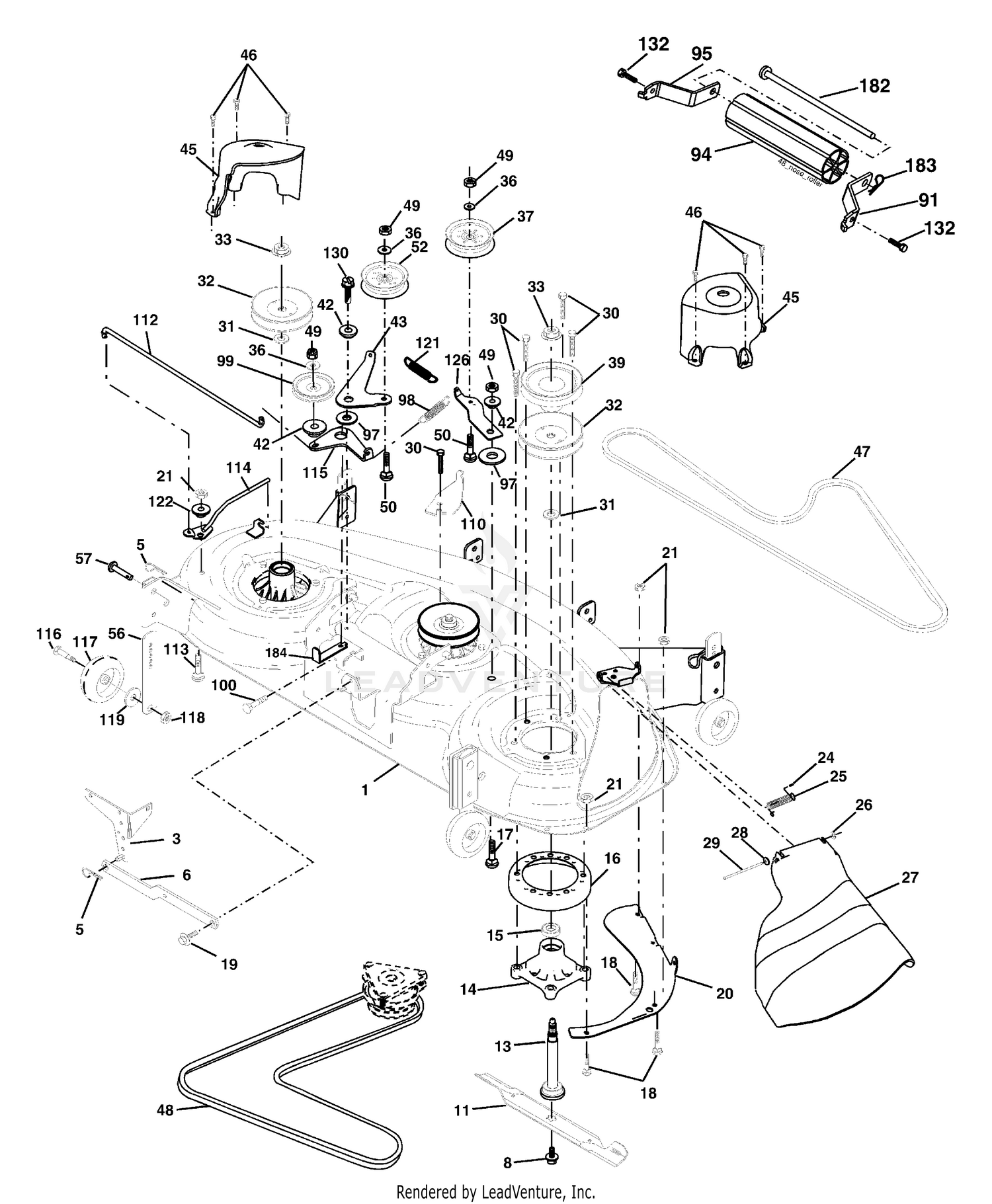

| Ref | Part Number | Description |
|---|
| 1 |
323-9 |
SCREW-HH Price: $1.29 |
| 1 |
532184233 |
DECK.SVC.4.GA.WHLS.48".BLK This part replaces 532181848. Price: $349.99 |
| 2 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 3 |
532178915 |
BRACKET ASM. Price: $22.99 |
| 3 |
61-0900-01 |
CARRIER BRKT This part replaces 61-0900. Price: $66.74 |
| 4 |
80-4280 |
PULLEY - 5 BLD REEL Price: $78.91 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 5 |
61-3380 |
BELT-V Price: $29.87 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 8 |
92-3159 |
SUPPORT WA - LH FRONT This part replaces 61-1050. Price: $191.00 |
| 9 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 11 |
32121-36 |
PIN-SPRING Price: $2.56 |
| 12 |
62-5510 |
BUSHING-RUBBER Price: $7.42 |
| 13 |
52-2890 |
BUSHING-NYLON Price: $2.49 |
| 13 |
532174360 |
SHAFT ASM W/LOWER BEARING Price: $39.99 |
| 14 |
3296-62 |
NUT-LOCK,NI Price: $5.72 |
| 14 |
532174358 |
HOUSING, MANDREL 48" Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
57-5270 |
SPRING-COMPRESSION Price: $9.79 |
| 16 |
29-8870 |
WASHER Price: $1.66 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
52-2980 |
S.P.A. PIVOT Price: $107.93 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
52-3000 |
SPRING ARM Price: $35.27 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
52-2990 |
SPRING RET CAPSCREW Price: $8.73 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
257-5 |
WASHER-THRUST Price: $1.83 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
253-84 |
SEAL-OIL Price: $10.00 |
| 24 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 25 |
61-1070 |
DISCONTINUED Price: Call Us |
| 26 |
257-6 |
BEARING-THRUST Price: $4.78 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
107-7409 |
PIN-PIVOT, BEDBAR This part replaces 57-5260. Price: $33.41 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 28 |
93-8849 |
REAR GRASS SHIELD ASM This part replaces 61-1130. Price: $137.18 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
61-0940 |
DISCONTINUED Price: Call Us |
| 30 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532177865. Price: $14.99 |
| 32 |
61-0500 |
BRG RETAINER SPACER Price: $40.44 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 33 |
67-9760 |
WASHER Price: $11.32 |
| 35 |
3211-4 |
SCREW-HH Price: $1.02 |
| 36 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 37 |
61-0610-01 |
C.U. GUARD This part replaces 61-0610. Price: $48.86 |
| 38 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 39 |
532174375 |
PULLEY.DRIVEN.DECK.48' Price: $34.99 |
| 39 |
76-2490 |
DISCONTINUED Price: Call Us |
| 40 |
251-331 |
BEARING Price: $38.82 |
| 41 |
110568 |
FLANGE This part replaces 76-2500. Price: $17.99 |
| 42 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
3217-6 |
NUT-HEX Price: $1.19 |
| 43 |
532174373 |
ARM, IDLER SECONDARY Price: $9.99 |
| 44 |
61-0970 |
BEDBAR PIVOT HSG WA Price: $59.59 |
| 45 |
532180806 |
COVER.MANDREL.DECK.48" Price: $12.99 |
| 45 |
56-9510 |
BUSHING ASM Price: $12.89 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 47 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 47 |
532180808 |
V-BELT, 48"SECONDARY Price: $49.99 |
| 48 |
105-6785 |
BEDKNIFE-LOWCUT (FAIRWAY) This part replaces 62-5180. Price: $91.81 |
| 48 |
532174368 |
V-BELT PRIMARY 48" Price: $49.99 |
| 49 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 49 |
61-1210-01 |
BEDBAR This part replaces 61-1210. Price: $367.89 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 50 |
61-1010 |
BEDBAR PIVOT HSG WA Price: $41.79 |
| 51 |
57-5190 |
SCREW-SET, HSH Price: $5.50 |
| 52 |
3218-18 |
NUT-JAM Price: $0.57 |
| 52 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 53 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 54 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 55 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 56 |
322-3 |
SCREW-HH Price: $0.79 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
12-7079 |
DISCONTINUED Price: Call Us |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 58 |
61-0660-01 |
REEL FRAME WA This part replaces 61-0660. Price: $388.13 |
| 59 |
323-7 |
SCREW-HH Price: $0.65 |
| 60 |
67-5840 |
NUT-JAM Price: $5.02 |
| 61 |
27-1850 |
WASHER-PIVOT Price: $2.58 |
| 62 |
61-1320 |
DISCONTINUED Price: Call Us |
| 63 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 64 |
302-18 |
FITTING-GREASE Price: $3.46 |
| 65 |
62-7120 |
WASHER Price: $1.48 |
| 67 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 68 |
76-2290 |
SPACER Price: $4.14 |
| 69 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 70 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 71 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 72 |
32128-21 |
NUT-HF Price: $0.39 |
| 73 |
76-2430 |
BRACKET - DEBRIS Price: $10.18 |
| 74 |
76-2440 |
DISCONTINUED Price: Call Us |
| 75 |
32128-10 |
NUT-LOCK, HHF Price: $0.27 |
| 76 |
3243-6 |
SCREW-SET, SQH Price: $4.23 |
| 77 |
3218-3 |
NUT-JAM Price: $0.25 |
| 91 |
529846201 |
SERVICE KIT BRKT.NOSEROLLER.RH This part replaces 532180535. Price: $5.99 |
| 94 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 95 |
529846101 |
SERVICE KIT BRKT.NOSEROLLER.LH This part replaces 532180534. Price: $5.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
532179479 |
SPRING PRIMARY DRIVE Price: $3.99 |
| 99 |
532193195 |
PULLEY.V.IDLER This part replaces 532184058. Price: $49.99 |
| 100 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 110 |
532175016 |
ARM, SPRING SECONDARY Price: $4.99 |
| 112 |
532174387 |
LEVER, TENSION RELIEF LINK Price: $14.99 |
| 113 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 114 |
532174384 |
LEVER ASM, TENSION RELIEF Price: $8.99 |
| 115 |
532174609 |
ARM, SPRING TENSION RELIEF Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532184219. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532174371 |
SPRING.DRIVE.SECONDARY.48".DEC Price: $5.99 |
| 122 |
532174606 |
BUSHING, PIVOT TENSION RELIEF Price: $3.99 |
| 126 |
532174372 |
ARM, IDLER PRIMARY DECK Price: $9.99 |
| 130 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 182 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
532173979 |
KEEPER BELT IDLER PLATED Price: $4.99 |
| 532181579 |
DECK |
ASM SVC 48" ELE.HD/HP ADJ This part replaces 532181591. Price: $899.99 532181579 |
