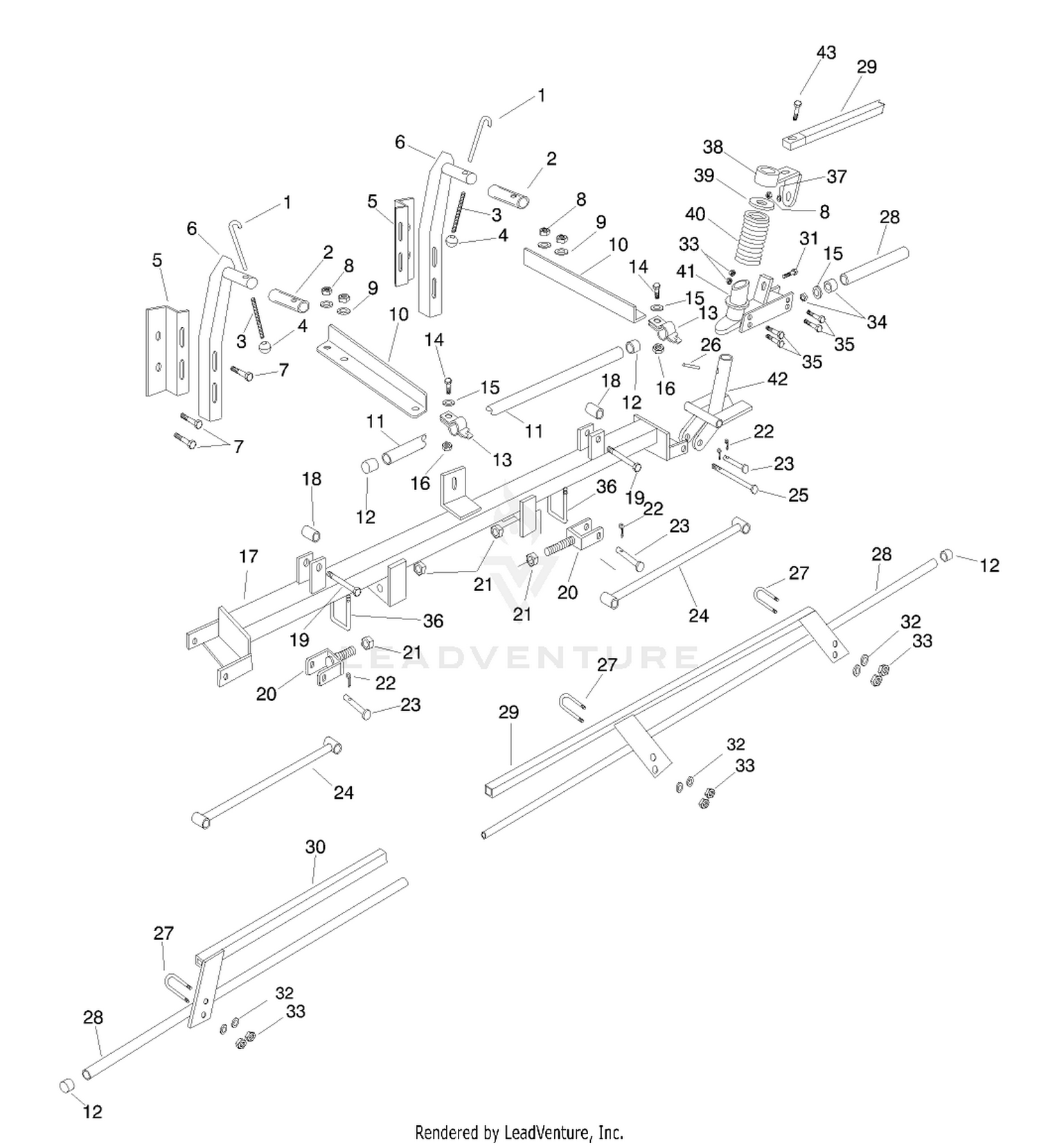

| Ref | Part Number | Description |
|---|
| 1 |
92-8562 |
HOOK-RESTRAINT, BOOM Price: $68.40 |
| 2 |
92-8561 |
HOSE-HOLD IN Price: $18.31 |
| 3 |
92-8563 |
SPRING Price: $19.69 |
| 4 |
92-8564 |
KNOB Price: $11.17 |
| 5 |
100-6791 |
BRACKET - BOOM MOUNTING Price: $35.67 |
| 6 |
100-6793 |
BOOM HOLD-IN ASM (WELDED) Price: $467.29 |
| 7 |
325-5 |
SCREW-HH Price: $1.20 |
| 8 |
3217-6 |
NUT-HEX Price: $1.19 |
| 9 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 10 |
106-5085-03 |
PLATE-BOOM, CENTER This part replaces 42234. Price: $19.41 |
| 11 |
40493-03 |
PIPE-BOOM, CENTER This part replaces 40493. Price: $70.39 |
| 12 |
92-8420 |
CAP-BOOM Price: $1.92 |
| 13 |
40494 |
CLAMP ASM Price: $26.94 |
| 14 |
323-6 |
SCREW-HH Price: $0.66 |
| 15 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 16 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 17 |
42227-03 |
MAIN FRAME TUBE ASM This part replaces 42227. Price: $672.98 |
| 18 |
42257 |
SPACER-TUBULAR Price: $11.54 |
| 19 |
325-34 |
SCREW-HH Price: $2.37 |
| 20 |
42237 |
ADJUSTABLE CLEVIS ASM Price: $69.25 |
| 21 |
3217-11 |
NUT-HEX Price: $0.95 |
| 22 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 23 |
42195 |
PIN-CLEVIS Price: $6.11 |
| 24 |
42240-03 |
STRUT ASM This part replaces 42240. Price: $54.18 |
| 25 |
283-83 |
PIN-CLEVIS This part replaces 42194. Price: $9.52 |
| 26 |
32121-78 |
PIN-ROLL Price: $3.09 |
| 27 |
92-0010 |
U-BOLT Price: $10.65 |
| 28 |
42282 |
EXTENSION BOOM PIPE ASSY Price: $152.55 |
| 29 |
42710-03 |
RH BOOM SUPPORT ASM This part replaces 42710. Price: $244.45 |
| 30 |
42711-03 |
LH BOOM SUPPORT ASM This part replaces 42711. Price: $244.45 |
| 31 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 32 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 33 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 34 |
92-3749 |
FREEZE PLUG Price: $5.92 |
| 35 |
321-10 |
SCREW-HH Price: $1.29 |
| 36 |
301950 |
U-BOLT-SQUARE Price: $9.77 |
| 37 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 38 |
42707-03 |
SUPPORT BRACKET ASM This part replaces 42707. Price: $88.27 |
| 39 |
3256-62 |
WASHER-FLAT Price: $0.75 |
| 40 |
42196-03 |
SPRING This part replaces 42196. Price: $32.24 |
| 41 |
42706-03 |
BREAKAWAY PIVOT ASM This part replaces 42706. Price: $217.09 |
| 42 |
42243-03 |
HINGE ASM This part replaces 42243. Price: $284.01 |
