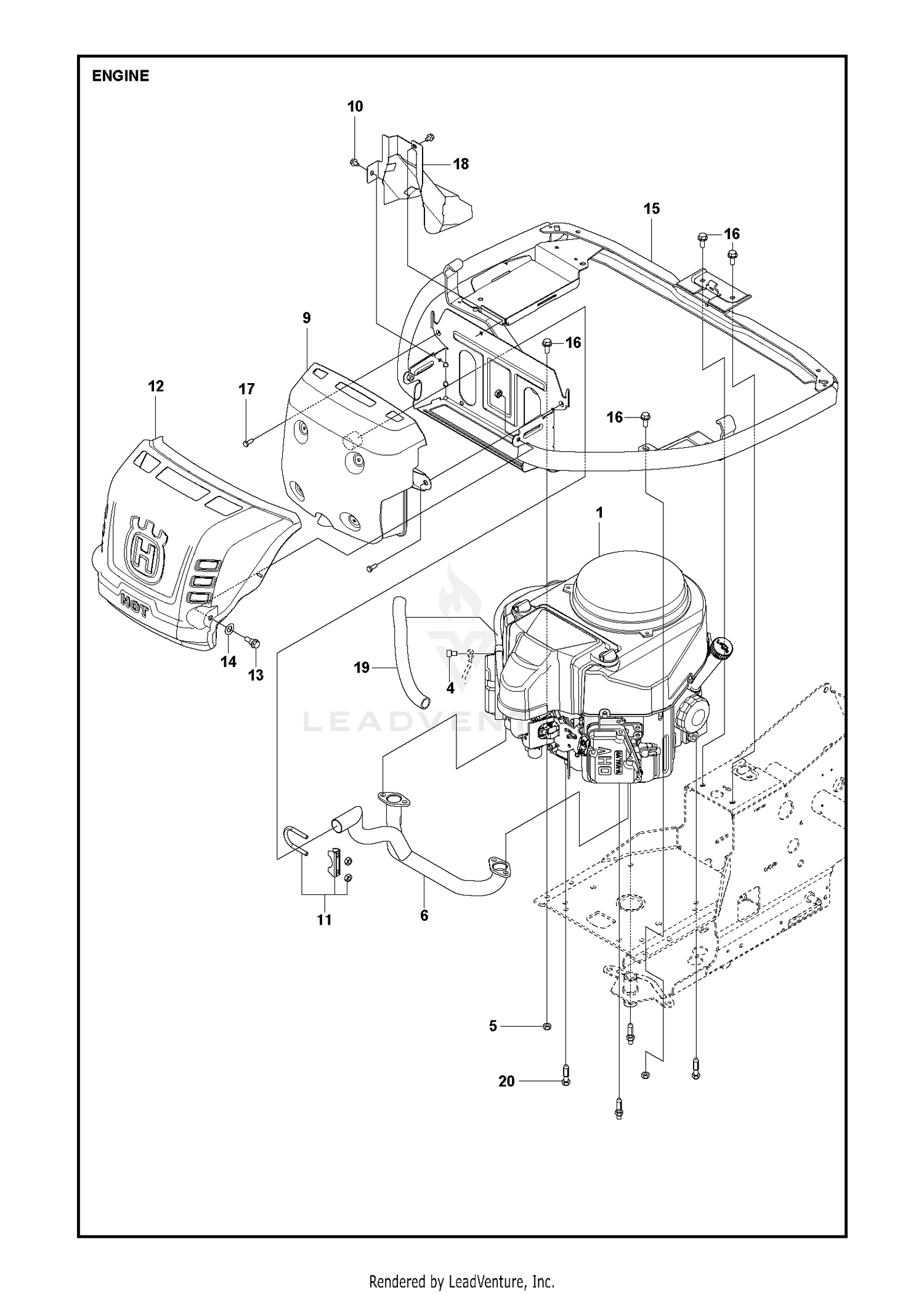

ENGINE
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-2310-01 | PLATFORM ASM Price: $966.51 |
| 1 | 578768002 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 115-8064-01 | PLATE-FLOOR Price: $112.84 |
| 3 | 3234-17 | SCREW-HHF Price: $0.72 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 725544701 | SCREW IHSCM Price: $2.99 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 3234-11 | SCREW-HHF Price: $1.23 |
| 6 | 578118801 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 110-0986 | DECAL-PLATE, COVER Price: $10.67 |
| 8 | 125-2910 | TREAD-FLOOR, SIDE Price: $14.43 |
| 9 | 3230-1 | BOLT-CARR Price: $1.49 |
| 9 | 577813601 | MUFFLER Price: $249.99 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 10 | 87-6630 | WASHER-PLAIN Price: $0.39 |
| 11 | 32128-33 | NUT-HF Price: $0.25 |
| 11 | 501152201 | CLAMP ASSY EXHAUST Price: $2.99 |
| 12 | 577818502 | HEAT SHIELD Price: $84.99 |
| 13 | 125-2911 | TREAD-PANEL, SERVICE Price: $84.71 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 125-2909 | TREAD-FLOORBOARD Price: $35.26 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
| 15 | 32104-17 | SCREW-HWH Price: $0.99 |
| 15 | 577849104 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 106-9518 | SCREW-PRH Price: $1.74 |
| 16 | 506570104 | BOLT Price: $4.99 |
| 17 | 240-11 | BUSHING-FLANGE Price: $5.32 |
| 17 | 535475212 | SCREW EHHFM Price: $2.99 |
| 18 | 579314901 | NEEDS DESCRIPTION Price: Call Us |
| 18 | 66-8010 | SPACER Price: $4.19 |
| 19 | 579396401 | NEEDS DESCRIPTION Price: Call Us |
| 19 | 93-6028 | PLATE-LOGO Price: $13.70 |
| 20 | 578207501 | STUD SCREW Price: $3.99 |
| 20 | 94-9024 | LAMP ASM Price: $157.81 |
| 21 | 3254-9 | WASHER-LOCK, INTERNAL Price: $0.25 |
| 22 | 110-0944 | SHROUD-PLATFORM Price: $451.01 |
| 23 | 110-0947-03 | PLATE-COVER Price: $23.93 |
| 25 | 133-2930 | DECAL-DANGER Price: $11.80 |
| 25 | 133-2931 | DECAL-DANGER (CE) Price: $9.49 |
| 26 | 110-8921 | DECAL-SPEED, MOW Price: $10.72 |
| 28 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
