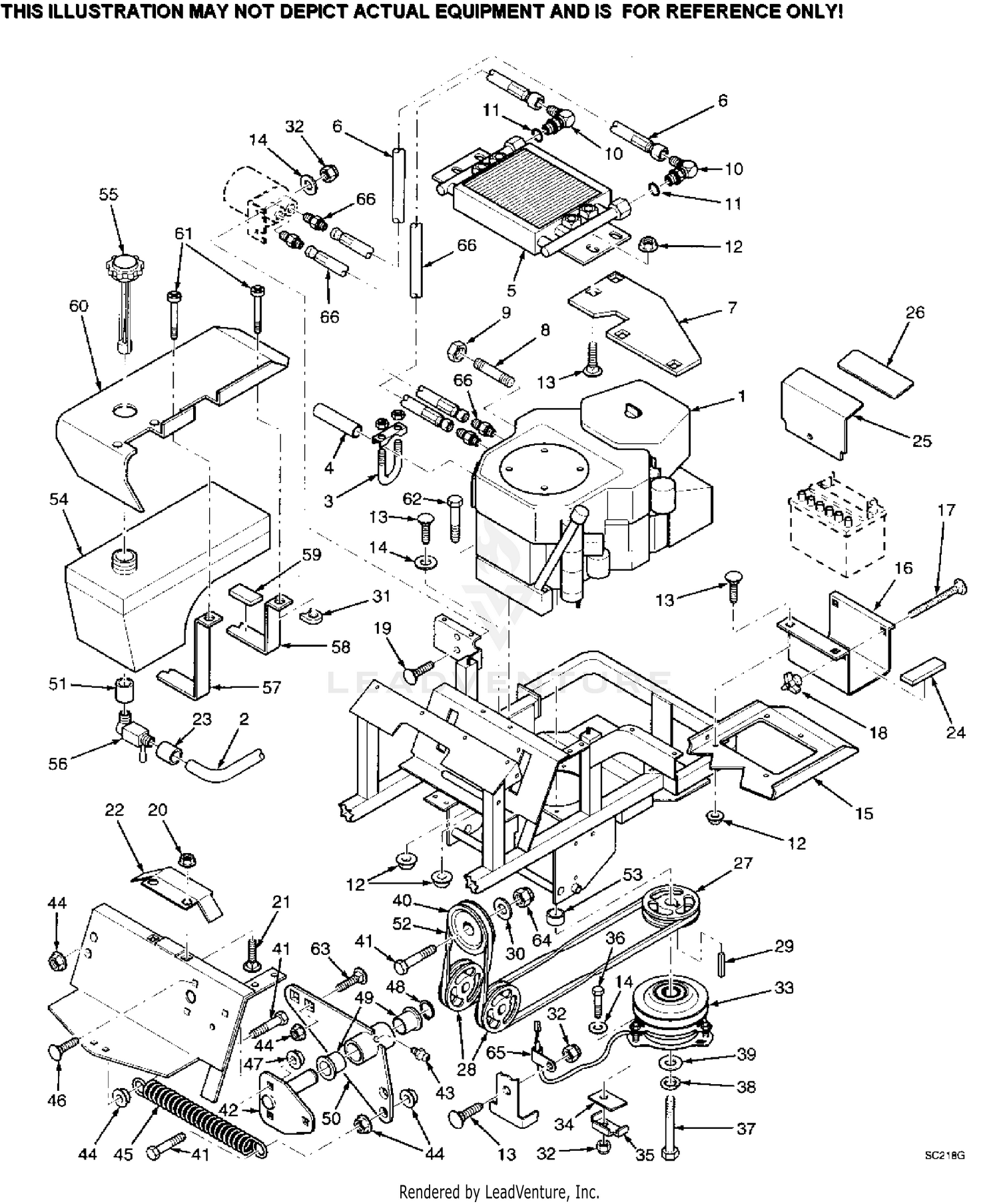

| Ref | Part Number | Description |
|---|
| 1 |
48835 |
ENGINE 18 HP KOHLER CV Price: Call Us |
| 2 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058-03. Price: Call Us |
| 3 |
48633 |
MUFFLER CLAMP Price: Call Us |
| 4 |
48964 |
TUBE, EXHAUST Price: Call Us |
| 5 |
48645 |
OIL COOLER Price: Call Us |
| 6 |
48962 |
HOSE, OIL COOLER Price: Call Us |
| 7 |
421597 |
MOUNTING BRACKET, OIL COOLER Price: Call Us |
| 8 |
48402-02 |
EXTENSION, 3" Price: Call Us |
| 9 |
48257 |
PIPE CAP Price: Call Us |
| 10 |
48350-11 |
ELBOW, 90 DEGREE 1/2-20 SAE TO 3/4-16 Price: Call Us |
| 12 |
04019-03 |
NUT, SERRATED FLANGE HEX HEAD 5/16-18 Price: Call Us |
| 13 |
04003-12 |
BOLT, CARRIAGE 5/16-18 X 3/4" Price: Call Us |
| 14 |
04040-15 |
FLATWASHER, 5/16"(.313 X .875 X .083) Price: Call Us |
| 15 |
45479 |
FENDER, LH Price: Call Us |
| 16 |
421197 |
BATTERY BOX Price: Call Us |
| 17 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 18 |
04029-01 |
WING NUT, 1/4-20 Price: Call Us |
| 20 |
04019-02 |
NUT, SERRATED FLANGE HEX 1/4-20 Price: Call Us |
| 21 |
04003-02 |
BOLT, CARRIAGE 1/4-20 X 3/4" Price: Call Us |
| 22 |
421624 |
BELT GUARD Price: Call Us |
| 23 |
48059-01 |
FUEL HOSE CLAMP Price: Call Us |
| 24 |
48661 |
RUBBER PAD Price: Call Us |
| 25 |
42392 |
BATTERY COVER Price: Call Us |
| 26 |
48099 |
PAD, BATTERY COVER Price: Call Us |
| 27 |
48792 |
PULLEY Price: Call Us |
| 28 |
482648 |
Pulley, 5.95 Dia. Tapered Bore This part replaces 48790. Price: Call Us |
| 29 |
04063-06 |
KEY, 1/4 X 1/4 X 1-1/2" Price: Call Us |
| 30 |
04041-07 |
FLATWASHER, 3/8"(.391 X .938 X .105) Price: Call Us |
| 31 |
04110-01 |
U-NUT, 1/4-20 Price: Call Us |
| 32 |
04021-10 |
NUT, ELASTIC STOP 5/16-18 Price: Call Us |
| 33 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 34 |
48814 |
RUBBER PAD, CLUTCH STOP Price: Call Us |
| 35 |
421564 |
BACKING PLATE Price: Call Us |
| 36 |
04001-10 |
BOLT, HEX HEAD 5/16-18 X 1-1/4" Price: Call Us |
| 37 |
04001-101 |
BOLT, HEX HEAD 7/16-20 X 2.50 Price: Call Us |
| 38 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 39 |
04041-18 |
FLATWASHER, 7/16" SPECIAL Price: Call Us |
| 40 |
48181 |
IDLER, PULLEY Price: Call Us |
| 41 |
04001-21 |
BOLT, HEX HEAD 3/8-16 X 1.75" Price: Call Us |
| 42 |
45650 |
PIVOT WELDMENT, IDLER ARM Price: Call Us |
| 43 |
48114-04 |
GREASE FITTING Price: Call Us |
| 44 |
04019-04 |
NUT, SERRATED FLANGE HEX 3/8-16 Price: Call Us |
| 45 |
48961 |
SPRING, PUMP DRIVE IDLER Price: Call Us |
| 46 |
04003-12 |
BOLT, CARRIAGE 5/16-18 X 3/4 Price: Call Us |
| 47 |
04019-03 |
NUT, SERRATED FLANGE HEX 5/16-18 Price: Call Us |
| 48 |
04050-05 |
RING, RETAINING 1.125 DIAMETER EXTERNAL "E" Price: Call Us |
| 49 |
48100-02 |
BUSHING, 1.125 SINTERED Price: Call Us |
| 50 |
46755 |
IDLER ARM WELDMENT, PUMP DRIVE Price: Call Us |
| 51 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 52 |
48760 |
BELT, PUMP DRIVE Price: Call Us |
| 53 |
43248 |
SPACER, CRANKSHAFT Price: Call Us |
| 54 |
48651 |
FUEL TANK(INCLUDES SHUT-OFF VALVE) Price: Call Us |
| 55 |
483787 |
FUEL CAP W/GAUGE This part replaces 48658. Price: Call Us |
| 56 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 57 |
42944 |
FUEL TANK STRAP, LONG Price: Call Us |
| 58 |
42945 |
FUEL TANK STRAP, SHORT Price: Call Us |
| 59 |
48657 |
RUBBER PAD Price: Call Us |
| 60 |
46505 |
FENDER ASSEMBLY, RH(WITH DECAL) Price: Call Us |
| 61 |
04010-10 |
SCREW, MACHINE 1/4-20 X 2" PHILLIPS HEAD Price: Call Us |
| 62 |
04017-19 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X Price: Call Us |
| 63 |
04003-05 |
BOLT, CARRIAGE 7/8-16 X 1.50" Price: Call Us |
| 64 |
04021-09 |
NUT, ELASTIC STOP 3/8-16 Price: Call Us |
