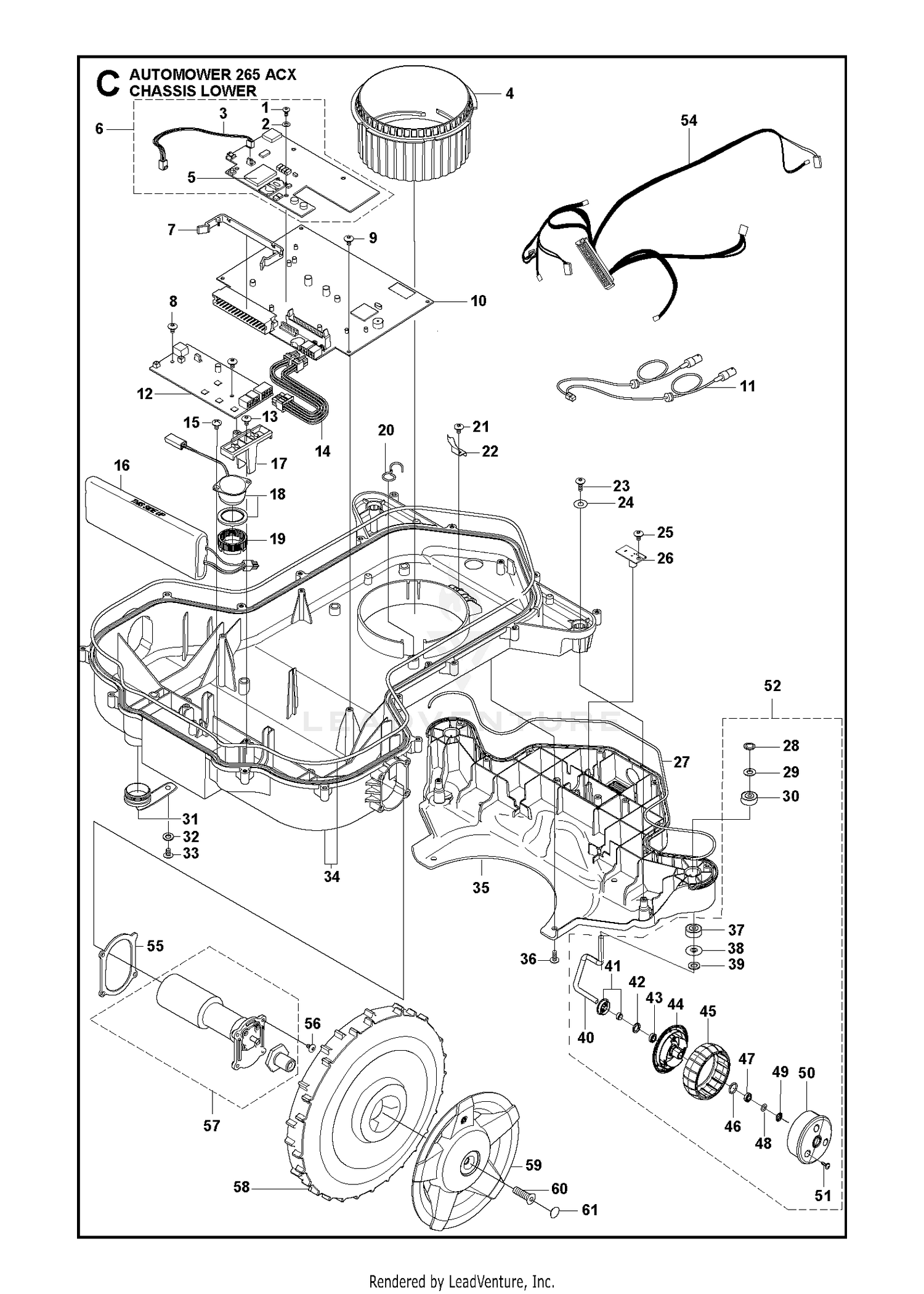

CHASSIS LOWER
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 522597101 | SCREW GSM- MODULE Price: $3.99 |
| 2 | 522597201 | WASHER GSM- MODULE Price: $3.99 |
| 3 | 576219401 | LOOM LOOM GPS TRACKING MODULE Price: $37.99 |
| 4 | 535122102 | CUTTING HEIGHT NUT Price: $22.99 |
| 6 | 575242403 | Price: Call Us |
| 7 | 578056101 | CLIP MAIN CONNECTOR Price: $4.99 |
| 10 | 578974301 | Price: Call Us |
| 11 | 523056002 | Price: Call Us |
| 12 | 581757802 | Price: Call Us |
| 14 | 578898401 | Price: Call Us |
| 15 | 502859601 | SCREW Price: $1.99 |
| 16 | 597213201 | NEEDS DESCRIPTION Price: Call Us |
| 17 | 579734201 | Price: Call Us |
| 18 | 501004201 | HORN Price: $49.99 |
| 19 | 579521201 | NUT BUZZER Price: $4.99 |
| 20 | 535139601 | HOLDER Price: $4.99 |
| 21 | 535130314 | SCREW Price: $2.99 |
| 22 | 535122402 | LOCKING SPRING Price: $4.99 |
| 24 | 734113741 | WASHER Price: $3.99 |
| 25 | 575543310 | SCREW SILVER 10MM Price: $2.99 |
| 26 | 592852201 | Circuits Price: $17.99 |
| 27 | 522039301 | Price: Call Us |
| 28 | 576019301 | LOCK WASHER PUSH-ON TYPE P 8 S Price: $2.99 |
| 31 | 574427402 | PLUG SERVICE PLUG Price: $5.99 |
| 32 | 734113741 | WASHER Price: $3.99 |
| 34 | 575943902 | Price: Call Us |
| 35 | 510086702 | Price: Call Us |
| 37 | 580605101 | BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 38 | 535087803 | WASHER FRONT WHEEL CENTER HOLE Price: $2.99 |
| 39 | 580764601 | WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 40 | 505193502 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 581621501 | SHIELD KIT Price: $6.99 |
| 42 | 580487101 | SEALING 12X18X3 Price: $4.99 |
| 43 | 580605101 | BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 44 | 579457101 | WHEEL FRONT WHEEL INSIDE Price: $4.99 |
| 46 | 580445101 | O-RING 2,62X15,54 Price: $3.99 |
| 47 | 580605101 | BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 48 | 580764601 | WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 49 | 576019301 | LOCK WASHER PUSH-ON TYPE P 8 S Price: $2.99 |
| 50 | 579457201 | WHEEL FRONT WHEEL OUTSIDE Price: $5.99 |
| 51 | 575543314 | SCREW 14MM Price: $3.99 |
| 52 | 574300303 | NEEDS DESCRIPTION Price: Call Us |
| 54 | 501003704 | Price: Call Us |
| 55 | 535139203 | GASKET Price: $5.99 |
| 57 | 544907003 | DRIVE MOTOR Price: $379.99 |
| 58 | 544905804 | REAR WHEEL ASSY 230 Price: $27.99 |
| 59 | 544905102 | HUB CAP Price: $12.99 |
| 61 | 504200801 | COVER WASHER Price: $3.99 |
| 510144601 | BALL | BEARING FRONT WHEEL AM 26 Price: $3.99 510144601 |
