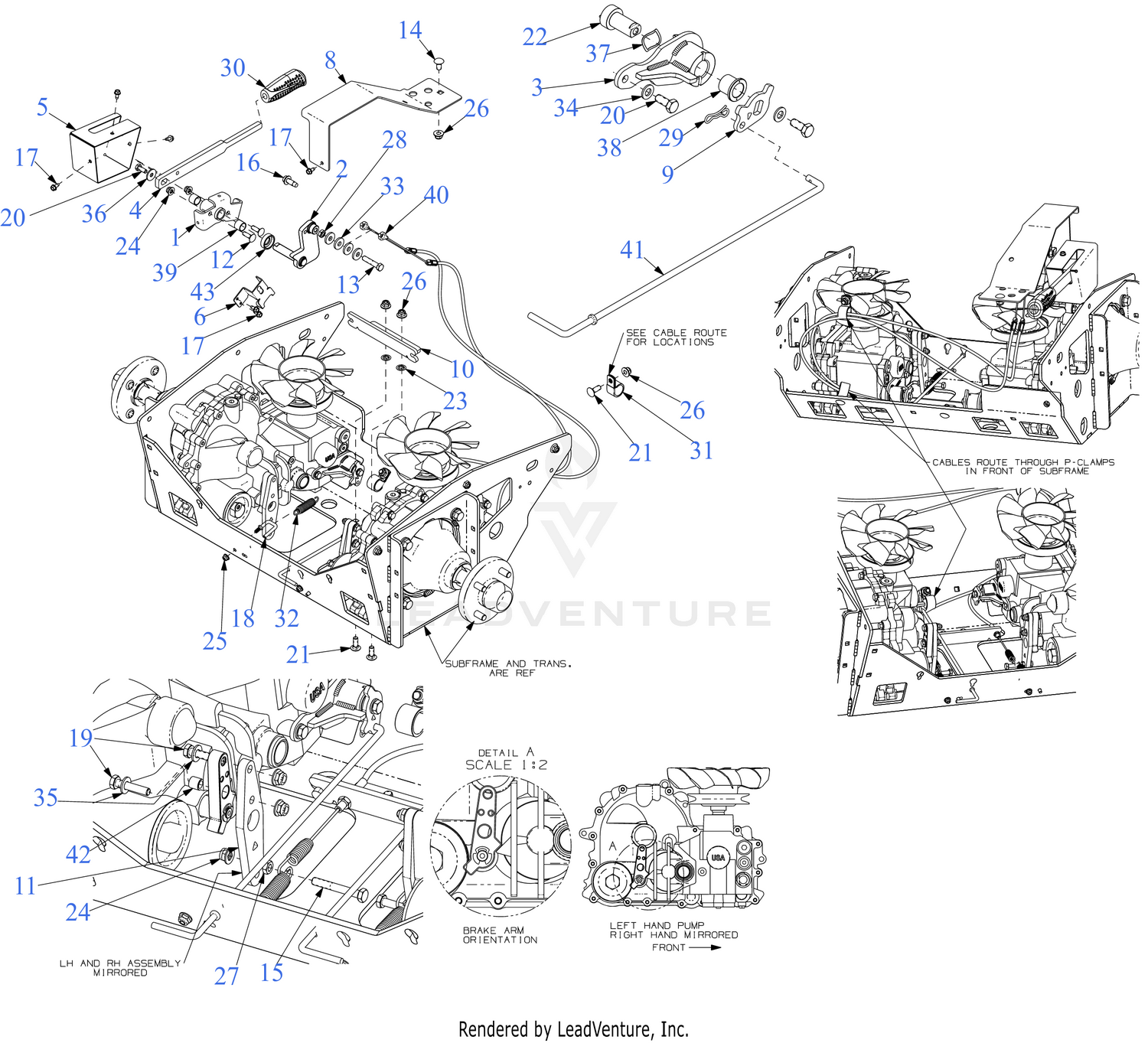

| Ref | Part Number | Description |
|---|
| 1 |
680E00436 |
PIVOT TUBE ASSEMBLY Price: $51.64 |
| 2 |
680E02787 |
BRAKE PIVOT SHAFT Price: $33.03 |
| 3 |
680E02804 |
ACTUATOR BRACKET Price: $63.80 |
| 9 |
703E28960 |
BYPASS LEVER BRACKET Price: $6.25 |
| 10 |
703E29176 |
CABLE BRACKET Price: $23.31 |
| 11 |
703E29177 |
BRAKE ARM EXTENTION PLATE Price: $28.61 |
| 12 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 13 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 14 |
710-0389 |
CARRIAGE BOLT 3/8-16 x .750 GR5 Price: $3.89 |
| 15 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 16 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 17 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 18 |
710-06534 |
EYE BOLT SPRING GUIDE 1/4-20 Price: $9.83 |
| 19 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 20 |
710-1880 |
SCREW 5/16-18 x .750 Price: $4.02 |
| 21 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 22 |
711-11552 |
ACTUATOR BYPASS SHAFT Price: $26.77 |
| 23 |
712-0229 |
PUSH NUT Price: $3.14 |
| 24 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 25 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 26 |
712-04065 |
NUT Price: $3.68 |
| 27 |
712-3007 |
HEX NUT Price: $6.06 |
| 28 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 29 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 30 |
720-04139B |
GRIP Price: $16.45 |
| 31 |
726-0475 |
HOSE CLAMP 1.0" Price: $12.11 |
| 32 |
732-08273 |
EXTENSION SPRING .65 OD x 2.65 LG Price: $5.13 |
| 33 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 34 |
736-0264 |
FLAT WASHER Price: $5.99 |
| 35 |
736-0275 |
FLAT WASHER Price: $5.99 |
| 36 |
736-04117 |
FLAT WASHER 1.0 OD:.331 ID Price: $2.85 |
| 37 |
736-0621 |
WAVE WASHER .785X1.00X.012 Price: $16.02 |
| 38 |
741-04458 |
FLANGE BEARING .625 X .75 X .75 Price: $2.27 |
| 39 |
741-04555 |
SLEEVE BEARING Price: $14.19 |
| 40 |
746P06998 |
PARK BRAKE CABLE Price: $34.75 |
| 41 |
747-11793 |
BYPASS ROD Price: $32.47 |
| 42 |
750-04194 |
SPACER Price: $6.02 |
