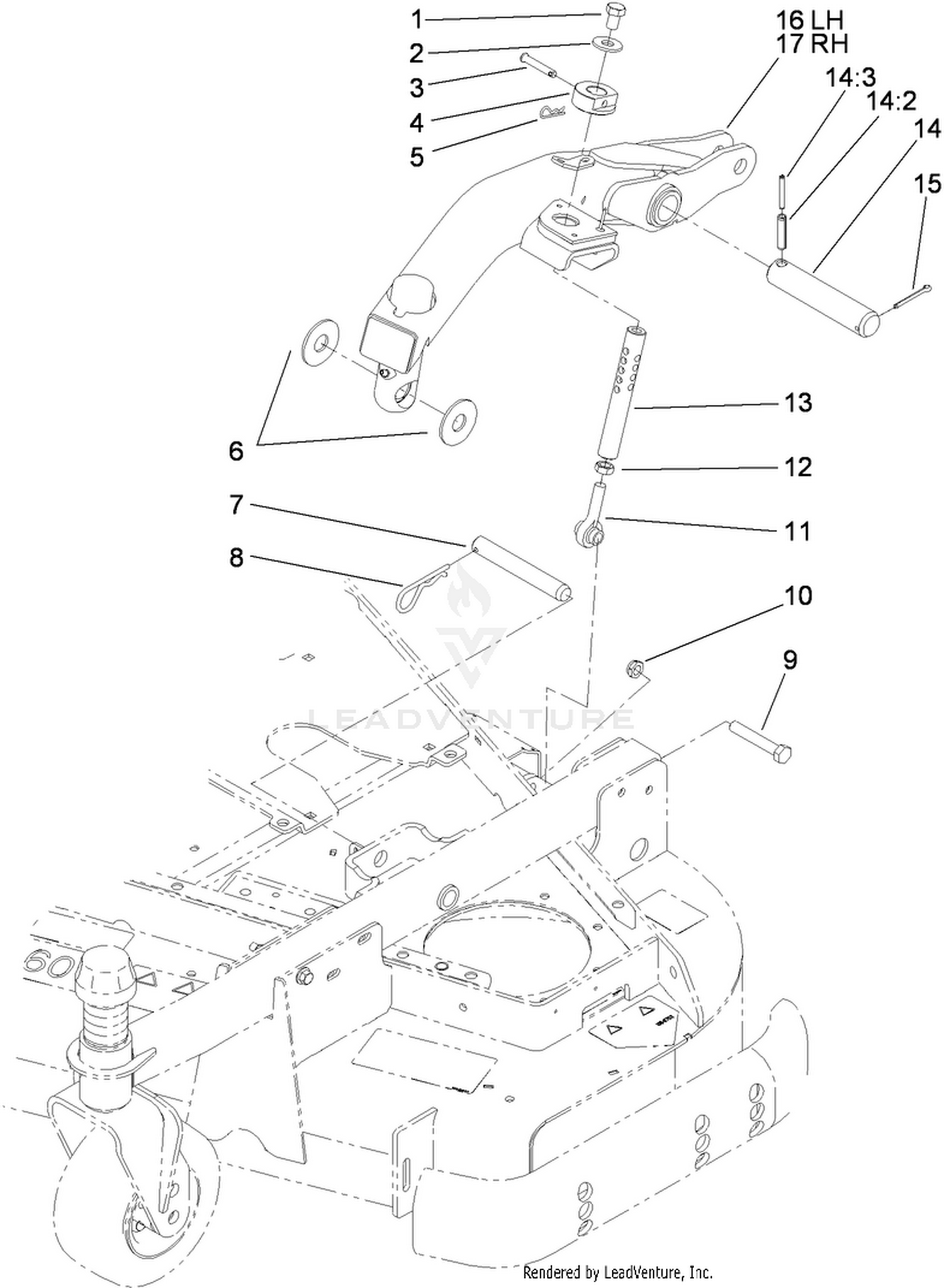

Lift Arm and Rear Height-of-Cut Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3213-20 | SCREW-HH Price: $1.76 |
| 2 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 3 | 107-3457 | PIN-CLEVIS Price: $5.89 |
| 4 | 110-0641 | COLLAR-HOC Price: $58.06 |
| 5 | 3290-467 | PIN-HAIR Price: $0.27 |
| 6 | 107-7915 | WASHER-THRUST Price: $1.97 |
| 7 | 107-7904 | PIN-CLEVIS Price: $36.06 |
| 8 | 3290-256 | PIN-HAIR Price: $1.01 |
| 9 | 325-12 | SCREW-HH Price: $2.27 |
| 10 | 3296-45 | NUT-HEX Price: $3.79 |
| 11 | 105-2808 | END-ROD Price: $88.58 |
| 12 | 3220-5 | NUT-JAM Price: $0.65 |
| 13 | 107-7284 | TUBE-HOC Price: $116.83 |
| 14 | 98-2330 | PIVOT PIN ASM Price: $62.61 |
| 15 | 3272-24 | PIN-COTTER Price: $0.54 |
| 16 | 117-0803 | LH LIFT ARM ASM Price: $864.95 |
