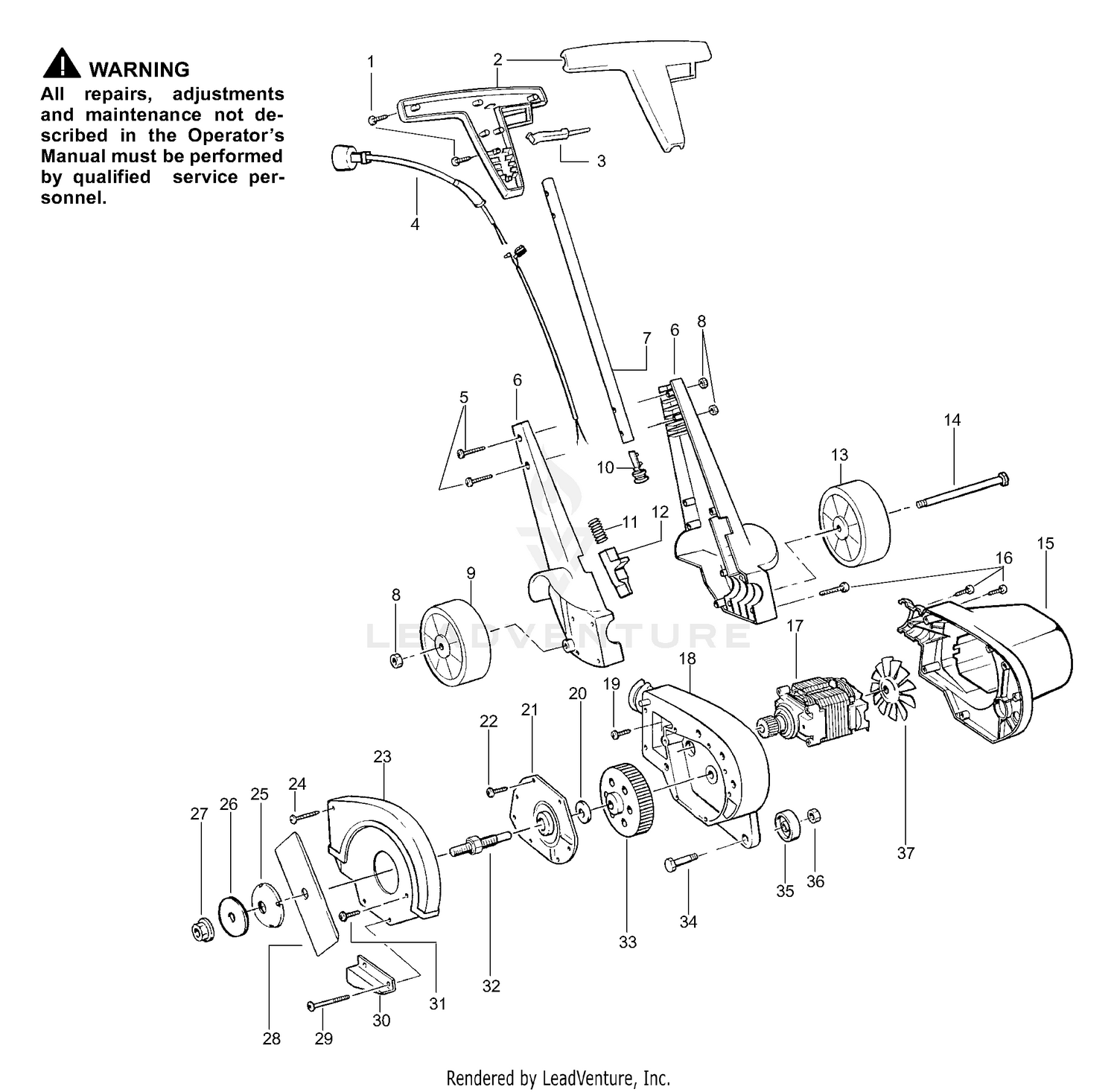

Edger Assembly
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 534222402 | SCREW This part replaces 530015495. Price: $1.99 |
| 2 | 530402925 | Handle Set Price: $7.99 |
| 3 | 530402860 | Trigger Switch Lever Price: $1.99 |
| 4 | 530403135 | Harness/Power Cord Ass'y. Price: $17.99 |
| 5 | 530402888 | Screw Price: $1.99 |
| 6 | 530402924 | Rear Housing Price: $14.99 |
| 7 | 530402868 | Handle Tube Price: $6.99 |
| 8 | 530403094 | Nut Price: $1.99 |
| 9 | 530095088 | Rear Wheel Price: $2.99 |
| 10 | 530402885 | Protector Harness Price: $1.99 |
| 11 | 530402877 | Spring Slide Price: $1.99 |
| 12 | 530402871 | Slide Release Price: $1.99 |
| 13 | 530095088 | Rear Wheel Price: $2.99 |
| 14 | 530402876 | Assy-Rear Axle Price: $2.99 |
| 14 | X-426-3 | Clamp-Hose Price: Call Us |
| 15 | 220368 | Stud-Valve Cover Price: Call Us |
| 15 | 530402857 | Motor Housing Price: $22.99 |
| 16 | 270034 | Gasket-Valve Cover Price: Call Us |
| 16 | 534222402 | SCREW This part replaces 530015495. Price: $1.99 |
| 17 | 270036 | Cover-Valve Price: Call Us |
| 17 | 530402866 | Assy-Motor Price: $135.00 |
| 18 | 530403878 | Deck Frame Ass'y. Price: $22.99 |
| 19 | 530016332 | Screw Price: $1.99 |
| 20 | 530016247 | Washer Price: $1.99 |
| 21 | 530402912 | Bearing Holder Ass'y. Price: $14.99 |
| 22 | 530016332 | Screw Price: $1.99 |
| 23 | 530402859 | Blade Shield Price: $8.99 |
| 24 | 530016243 | Screw Price: $1.99 |
| 25 | 530402971 | Spring-Clutch Type 1 Price: $1.99 |
| 25 | 530403499 | Spring-Clutch Type 2 Price: $1.99 |
| 26 | 530071344 | KIT This part replaces 530016276. Price: $14.99 |
| 26 | 530403500 | Washer-Cup Type 2 Price: $1.99 |
| 27 | 530016293 | Nut-Blade Type 2 Price: $1.99 |
| 27 | 530402954 | Nut-Blade Type 1 Price: $9.99 |
| 28 | 952701699 | Blade Price: $15.95 |
| 29 | 530016227 | Screw Price: $1.99 |
| 30 | 530402865 | Edge Guide Price: $0.84 |
| 31 | 530016223 | Screw Price: $1.99 |
| 32 | 530402862 | Shaft Type 1 Price: $12.92 |
| 32 | 530403498 | Shaft Type 2 Price: $11.99 |
| 33 | 530402892 | Drive Gear Price: $14.99 |
| 34 | 530402907 | Bolt Price: $1.99 |
| 35 | 530402970 | Front Roller Price: $1.99 |
| 36 | 530016245 | Nut Price: $1.99 |
| 37 | 530403064 | Fan Motor Price: $1.99 |
