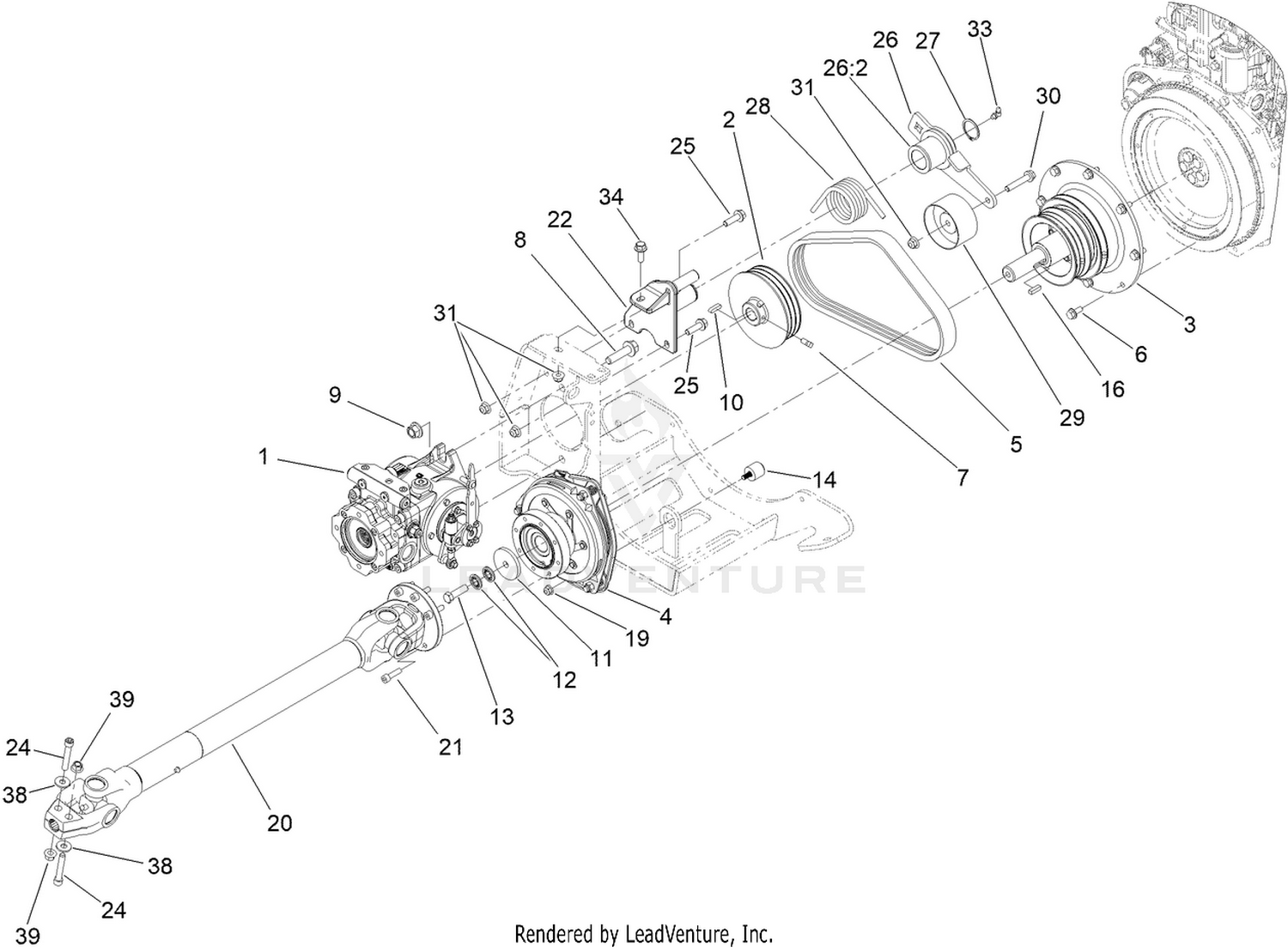

Pump, Driveshaft and Clutch Assembly

Ref	Part Number	Description
1	145-5940	PUMP-BONDIOLI Price: $2,822.71
2	145-6044	PULLEY-3/3V Price: $53.98
3	147-0050	STUBSHAFT-3/3V Price: $159.51
4	145-5987	CLUTCH-GT5 W/INTEGRAL CON Price: $935.22
5	139-6259	BELT-3/3V Price: $96.77
6	138-0690	SCREW-HH Price: $0.80
7	1-803022	SCREW-SET Price: $1.71
8	133-0041	SCREW-HF Price: $5.16
9	99-5107	NUT-LOCK Price: $1.77
10	94-3645	KEY Price: $13.07
11	139-6238	WASHER Price: $10.31
12	1-603610	WASHER-SPRING Price: $3.19
13	109-9761	SCREW-HH, W/LOCTITE Price: $4.39
14	147-0060	BUMPER Price: $9.79
16	10-7070	KEY-SQUARE Price: $1.02
19	104-8300	NUT-HF, NI Price: $0.39
20	144-0521SP	DRIVESHAFT ASM Price: $583.85
21	144-0452	SCREW-HEX SOCKET Price: $2.34
22	140-6200	IDLER PIVOT (MACH) Price: $29.14
24	131-8591	SCREW-HSH Price: $2.37
25	119-4061	SCREW-HHF Price: $0.75
26	140-6179	IDLER ARM ASM Price: $61.14
27	32120-84	RING-SNAP, EXTERNAL Price: $0.61
28	140-3102	SPRING-TORSION Price: $26.75
29	144-3904	PULLEY-TENSIONER Price: $23.40
30	108-3742	SCREW-HHF Price: $1.90
31	104-8301	NUT-HF, NI Price: $1.09
33	302-40	FITTING-GREASE, 90 DEG Price: $1.70
34	3234-42	SCREW-HHF Price: $1.10
38	80-6990	WASHER-HARDENED Price: $3.06
