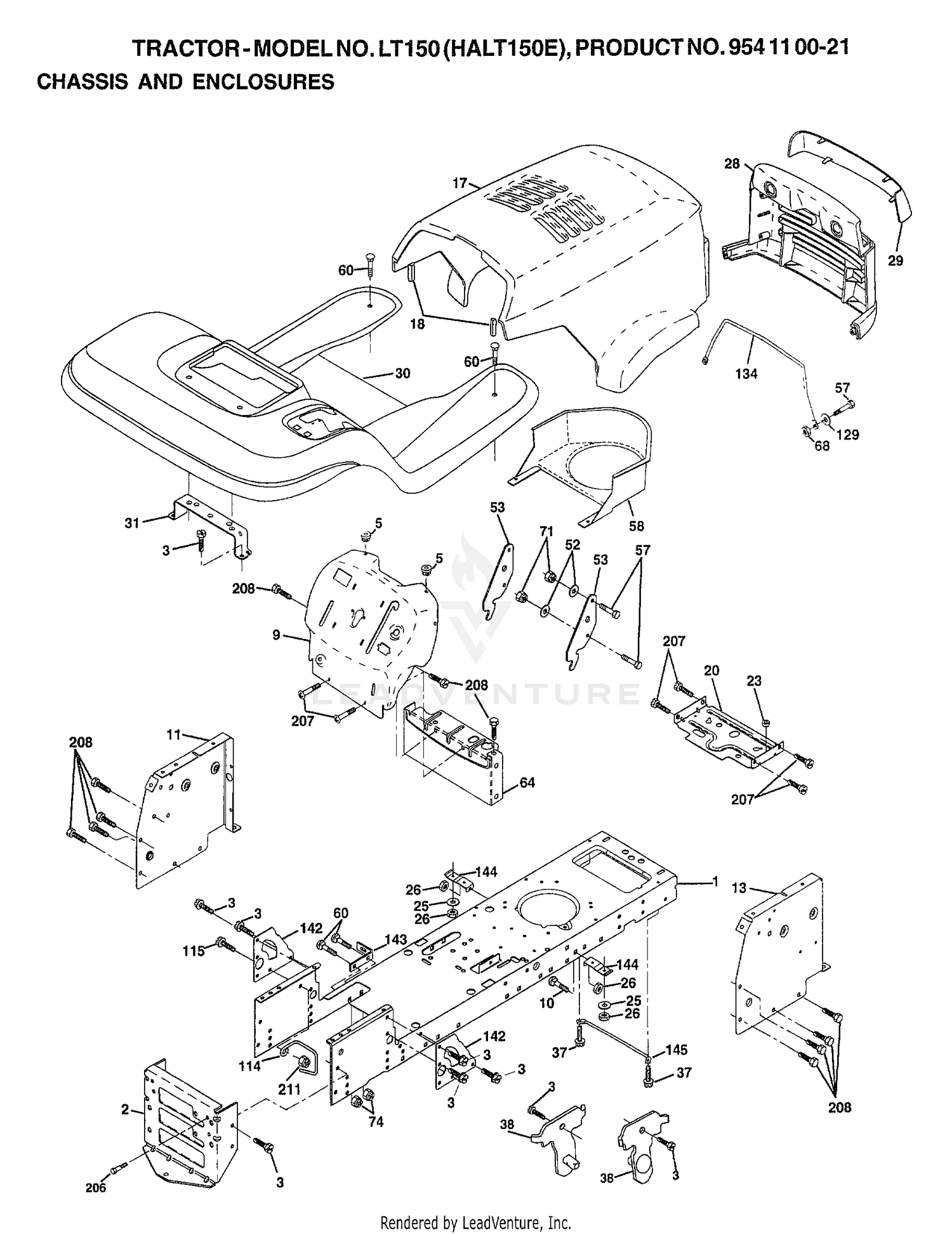

| Ref | Part Number | Description |
|---|
| 1 |
100-3035 |
FRONT DECK ASM Price: $1,940.42 |
| 1 |
532169830 |
CHASSIS STAMPING Price: $93.99 |
| 2 |
3233-4 |
SCREW-CARR Price: $1.90 |
| 2 |
532176554 |
Drawbar This part replaces 532169061. Price: $23.99 |
| 3 |
100-2984 |
SPACER-IDLER Price: $45.43 |
| 3 |
817000612 |
Screw Hex Wsh Thdr 3/8-16 x 3/4 This part replaces 817060612. Price: $2.99 |
| 4 |
99-5493 |
PULLEY-IDLER Price: $78.45 |
| 5 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 5 |
532155272 |
SUB= 155272 Price: $3.99 |
| 6 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 7 |
139-1037 |
DOUBLE DRIVEN SPINDLE ASM This part replaces 104-3530. Price: $724.15 |
| 8 |
55-7660 |
V-BELT Price: $52.99 |
| 9 |
139-1038 |
HIGH DRIVEN SPINDLE ASM This part replaces 104-3531. Price: $691.39 |
| 9 |
532168337 |
DASH SILKSCR. This part replaces 532171708. Price: $20.99 |
| 10 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 10 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 11 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 11 |
532174996 |
Panel Dash Lh This part replaces 532155927. Price: $8.99 |
| 12 |
100-5612-01 |
LH SKID ASM Price: $188.25 |
| 13 |
100-5605-01 |
RH SKID ASM Price: $188.25 |
| 13 |
532172108 |
PANEL DASH Price: $7.57 |
| 14 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 15 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 16 |
322-29 |
SCREW-HH Price: $2.69 |
| 17 |
105-4549 |
SPACER-ROLLER Price: $10.26 |
| 17 |
532156051 |
HOOD - LT/YT This part replaces 532165378. Price: $520.99 |
| 18 |
93-4803 |
ROLLER-DECK Price: $41.58 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 20 |
532180679 |
Plate Mtg Battery Fuel Tank Fr This part replaces 532156437. Price: $7.99 |
| 21 |
106-2033-01 |
PLATE-LATCH Price: $18.00 |
| 22 |
106-2032-01 |
LATCH-DECK Price: $19.24 |
| 23 |
11-9030 |
SCREW-SHOULDER Price: $5.63 |
| 23 |
532124028 |
GROMMET T Price: $3.99 |
| 24 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 25 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532165379. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA This part replaces 532165380. Price: $24.99 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532171854. Price: $125.54 |
| 31 |
532139976 |
SUB= 139976 Price: $7.99 |
| 37 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 38 |
532175710 |
Bracket Asm Pivot Mower Rear This part replaces 532169834. Price: $5.99 |
| 51 |
539976978 |
NUT.1/4C.NYLOC This part replaces 873800400. Price: $1.49 |
| 52 |
819091416 |
WASHER 9/32 X 7/8 X 16 GA Price: $3.99 |
| 53 |
532150067 |
SUB= 150067X431 Price: $1.64 |
| 57 |
874780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 This part replaces 874780412. Price: $3.99 |
| 58 |
532150127 |
SUB= 150127 Price: $13.99 |
| 60 |
872140606 |
BOLT Price: $3.99 |
| 64 |
532154798 |
SUB= 154798 Price: $22.99 |
| 68 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 71 |
873680400 |
NUT CROWNLOCK 1/4-20 Price: $2.69 |
| 74 |
873680600 |
NUT, CROWNLOCK 3/8-16 Price: $1.99 |
| 114 |
532158112 |
KEEPER BELT REAR Price: $9.99 |
| 115 |
817060620 |
SCREW Price: $3.99 |
| 129 |
819091016 |
WASHER 9/32 X 5/8 X 16 GA. Price: $2.99 |
| 142 |
532175702 |
Plate Reinforcement STLT This part replaces 532165867. Price: $4.99 |
| 143 |
532186689 |
Bracket Swaybar Chassis This part replaces 532154966. Price: $2.99 |
| 144 |
532175582 |
Bracket Pnt Footrest STLT This part replaces 532154207. Price: $4.99 |
| 145 |
532409167 |
Rod Pivot Hood This part replaces 532156524. Price: $8.99 |
| 206 |
532170165 |
BOLT SHOULDER Price: $2.99 |
| 207 |
817670508 |
SCREW Price: $3.99 |
| 208 |
817670608 |
SCREW Price: $2.99 |
| 211 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
