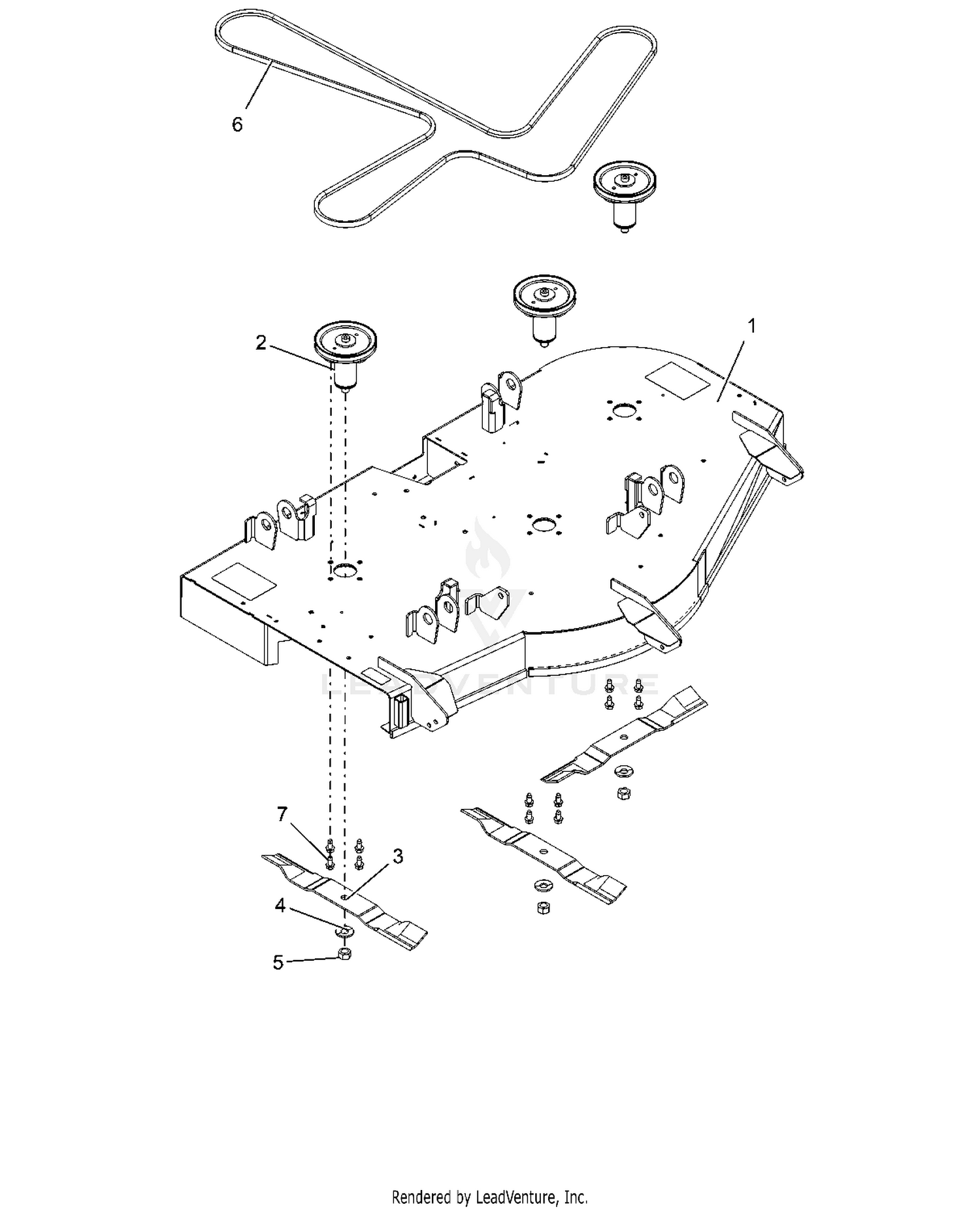

Deck, Belt, Blades And Spindles - 52"
Parts (6)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51533500 | KIT-52"GRAVELY DK W/DECAL&LINK This part replaces 51528400. Price: $471.45 |
| 2 | 51537200 | KIT- DECK SPINDLE ASSM- 52" This part replaces 51528000. Price: $167.95 |
| 3 | 04771200 | BLADE, 18" - 30 DEG .5 OFFSET Price: $22.95 |
| 4 | 06445700 | WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 5 | 06500920 | NUT-STD .625-18 ZCC This part replaces 06500630. Price: $1.95 |
| 6 | 07200023 | V-BELT, HA-WRAPPED Price: $78.95 |
