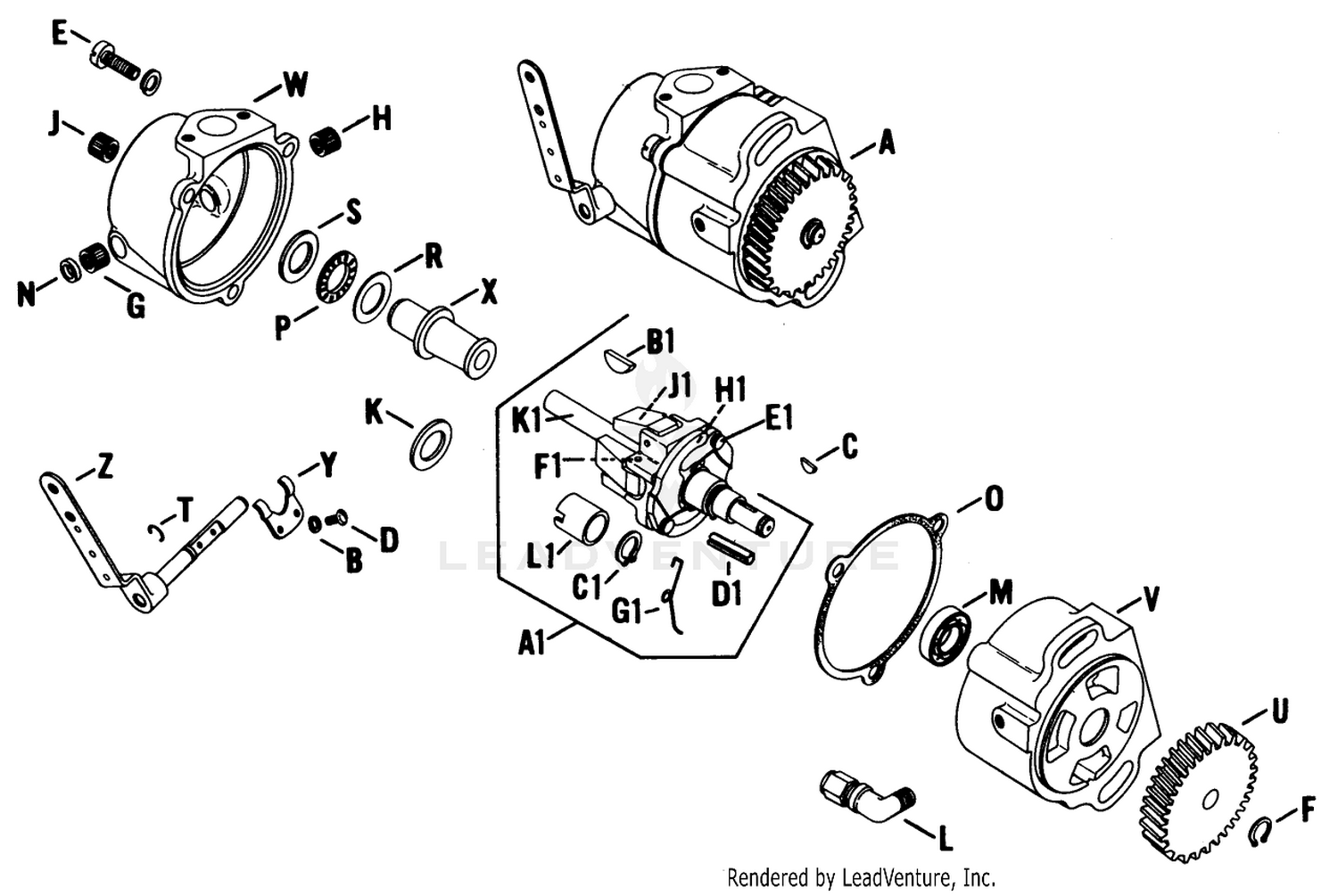

Governor Assembly-Engine Kohler Model No. K-532s-Spec. No. 53169

Governor Assembly-Engine Kohler Model No. K-532s-Spec. No. 53169

Parts (34)

RefPart NumberDescription
A 48_310_28 Kit, Governor Price: Call Us
A1 48_420_08 Shaft, Governor Assy. Price: Call Us
B X-18-1 Washer-Lock Price: Call Us
B1 X-42-8 Key-Woodruff Price: Call Us
C X-42-2 Key-Woodruff Price: Call Us
C1 X-269-4 Ring Retaining Price: Call Us
D X-49-1 Screw-R.H.M. Price: Call Us
D1 X-280-8 Pin-Roll Price: Call Us
E X-1741 Screw, F.H. 1/4-20x3/4 Price: Call Us
E1 230080 Pin-Flyweight Price: Call Us
F X-269-15 Ring-Retainer Price: Call Us
F1 230134 Pin, Gov. Wt. Price: Call Us
G X-293-3 Bearing-Needle Price: Call Us
G1 48_089_01 Spring Price: Call Us
H X-293-2 Bearing-Needle Price: Call Us
H1 277114 Flyweight Price: Call Us
J 48_030_02 Bearing-Needle Price: Call Us
J1 277117 Weight-Governor Price: Call Us
K 237022 Washer Price: Call Us
K1 277007 Shaft-Governor Price: Call Us
L X-324-7 Elbow Price: Call Us
M 240202 Bearing-Ball Price: Call Us
N 275055 Seal-Oil Price: Call Us
O 277099 Gasket, Gov. Cover Price: Call Us
P 277100 Bearing-Roller Thrust Price: Call Us
R 277101 Race-Thrust Bearing Price: Call Us
S 277102 Race-Thrust Bearing Price: Call Us
T 277104 Ring-Retaining Price: Call Us
U 277561 Gear-Governor Price: Call Us
V 4808102 Housing Price: Call Us
W 48_096_05 Cover, Govenor Price: Call Us
X 48_755_01 Kit, Clamp Price: Call Us
Y 4847102 Yoke-Governor Price: Call Us
Z 48_087_03 Lever-Governor Price: Call Us
