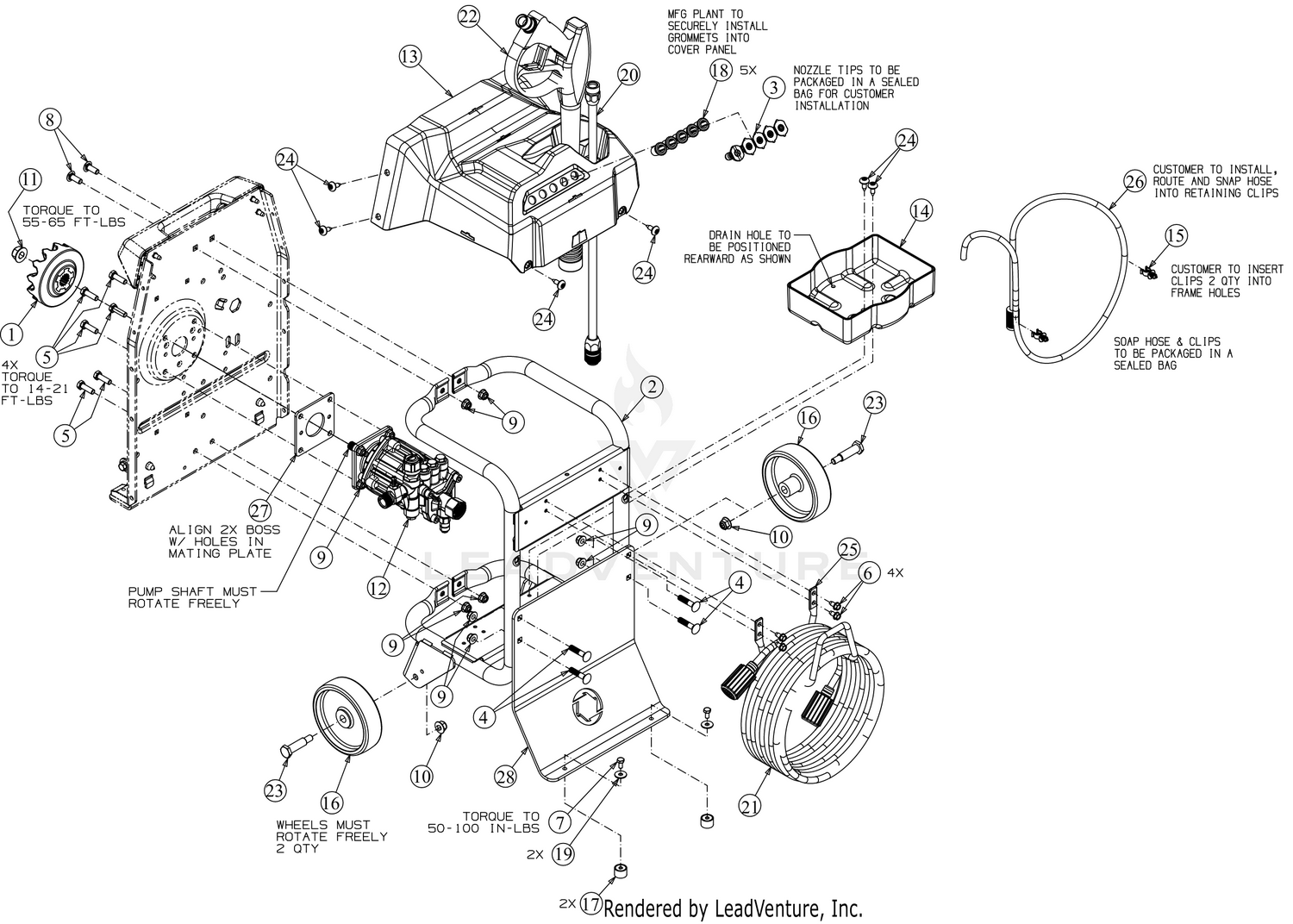

| Ref | Part Number | Description |
|---|
| 1 |
735-05109 |
DOG CLUTCH BUMPER Price: $2.40 |
| 1 |
931-05304 |
DOG CLUTCH Price: $73.75 |
| 2 |
687-05107A-0638 |
FRAME ASSEMBLY (MTD RED) Not Available Price: |
| 3 |
687-05118 |
NOZZLE FITTING ASSEMBLY Not Available Price: |
| 4 |
710-0262 |
CARRIAGE BOLT 5/16-18 x 1.50 Price: $3.66 |
| 5 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 6 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 7 |
710-1691 |
SCREW M6-1 x 12 Price: $2.71 |
| 8 |
710-3105 |
BOLT 5/16-18X .875 GR1 Price: $5.35 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-04065 |
NUT Price: $3.68 |
| 11 |
712-04150 |
NUT Price: $3.74 |
| 12 |
718P05394 |
PRESSURE WASHER PUMP This part replaces 718-05394. Price: $353.28 |
| 13 |
731-10738 |
POWER WASH COVER Price: $29.86 |
| 14 |
731-10765A |
SOAP TRAY Price: $18.87 |
| 15 |
731-11232 |
WIRE CLIP Price: $9.20 |
| 16 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 17 |
735-04121 |
BUMPER Price: $3.21 |
| 18 |
735-05097A |
GROMMET Not Available Price: |
| 19 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 20 |
737-05045 |
EXTENSION TUBE Price: $55.34 |
| 21 |
737-05046 |
ATTACHMENT HOSE .25 x 40FT Price: $92.23 |
| 22 |
737-05054 |
CONTROL HANDLE Price: $60.03 |
| 23 |
938-0373 |
SHOULDER SCREW Price: $8.45 |
| 24 |
738-04549A |
TORX SHOULDER SCREW 1/4-20 Price: $6.28 |
| 25 |
747-06453-0637 |
HOSE HANGER ROD (POWDER BLACK) Not Available Price: |
| 26 |
750-06338 |
INLET SOAP TUBE Price: $8.55 |
| 27 |
787-03282 |
PUMP PLATE Not Available Price: |
