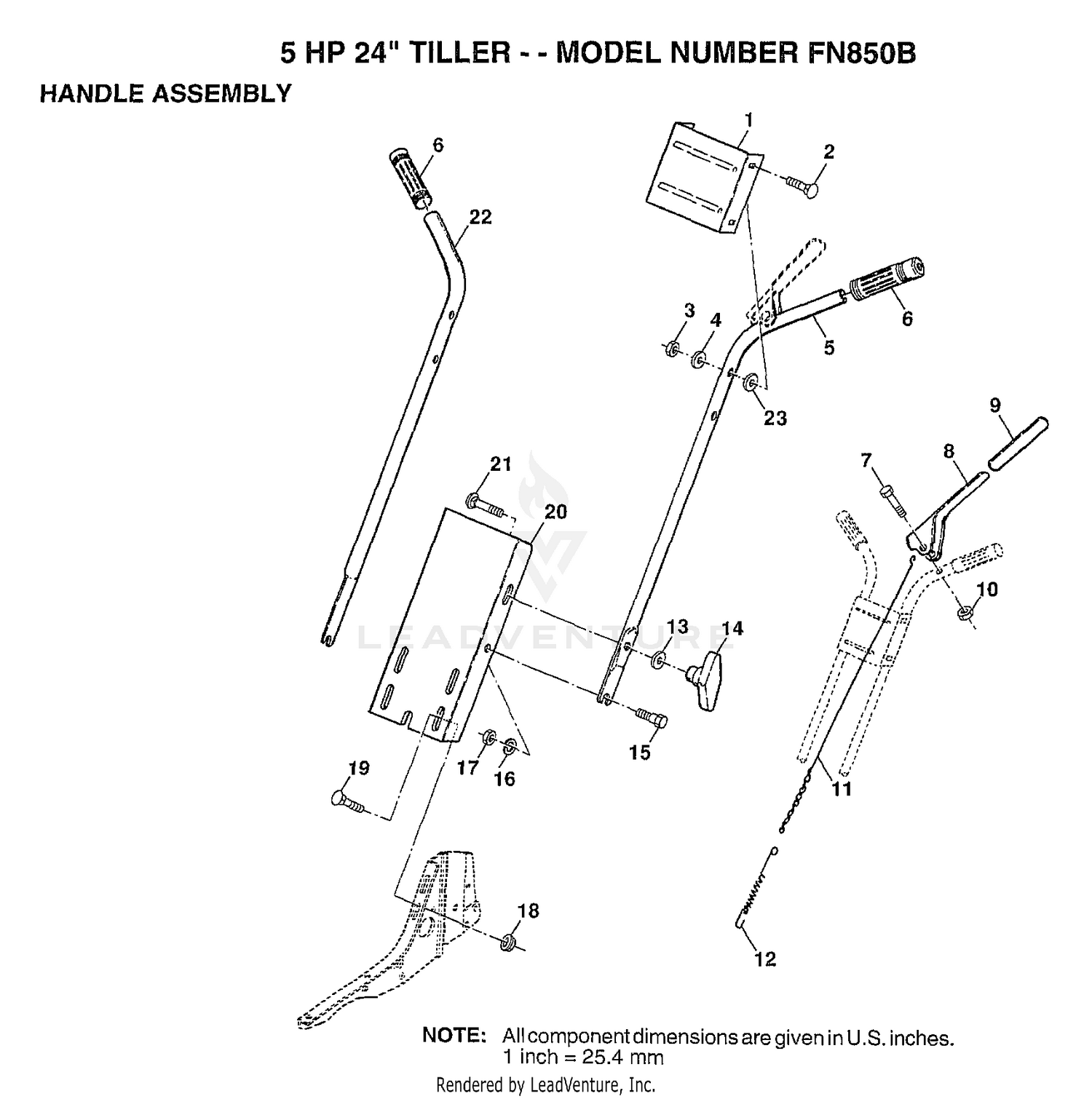

| Ref | Part Number | Description |
|---|
| 1 |
137176X505 |
HANDLE BRKT Price: Call Us |
| 1 |
32128-19 |
NUT-HF Price: $0.99 |
| 2 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 2 |
72140512 |
BOLT Price: Call Us |
| 3 |
73680500 |
SUB= 73690500 Price: Call Us |
| 3 |
86-1820-01 |
BRACKET-PULLEY Price: $18.96 |
| 4 |
19111116 |
WASHER Price: Call Us |
| 4 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 5 |
2621J500 |
SUB= 154127 Price: Call Us |
| 5 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 6 |
140536 |
GRIP NUB DOUBLE Price: Call Us |
| 6 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 7 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 7 |
86-2400-01 |
LATCH-ARM Price: $109.47 |
| 8 |
3069J |
SUB= 164937 Price: Call Us |
| 8 |
325-5 |
SCREW-HH Price: $1.20 |
| 9 |
8206H |
GRIP T Price: Call Us |
| 9 |
86-1560 |
SPACER-CYLINDER, LIFT Price: $23.34 |
| 10 |
1685H |
SUB= 68478 Price: Call Us |
| 10 |
86-1490 |
END-ROD, LH THREAD Price: $84.31 |
| 11 |
3067J |
SUB= 100382K Price: Call Us |
| 11 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 12 |
3070J |
SPRING EXT TI Price: Call Us |
| 12 |
86-1570 |
ROD-THREADED Price: $55.04 |
| 13 |
19121414 |
WASHER Price: Call Us |
| 13 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 14 |
136376 |
KNOB HANDLE Price: Call Us |
| 14 |
86-1550 |
END-ROD, RH THREAD Price: $79.70 |
| 15 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 15 |
471J |
BOLT CT Price: Call Us |
| 16 |
10040500 |
LOCKWASHER Price: Call Us |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 17 |
92-7766-01 |
BRACKET-PULLEY Price: $9.40 |
| 18 |
92-4033-01 |
TRAP-DOOR Price: $141.84 |
| 18 |
98000129 |
NUT Price: Call Us |
| 19 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 19 |
72140506 |
BOLT Price: Call Us |
| 20 |
325-7 |
SCREW-HH Price: $1.53 |
| 20 |
9209R505 |
PANEL. HANDLE Price: Call Us |
| 21 |
72110510 |
BOLT Price: Call Us |
| 22 |
2622J500 |
SUB= 159764 Price: Call Us |
| 23 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 24 |
106-1057 |
KIT-CLUTCH BRACKETS This part replaces 86-2590. Price: $221.30 |
| 25 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 26 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 27 |
86-2600-01 |
WASHER-GUIDE, BELT Price: $5.77 |
| 28 |
3290-378 |
TIE-CABLE Price: $0.79 |
