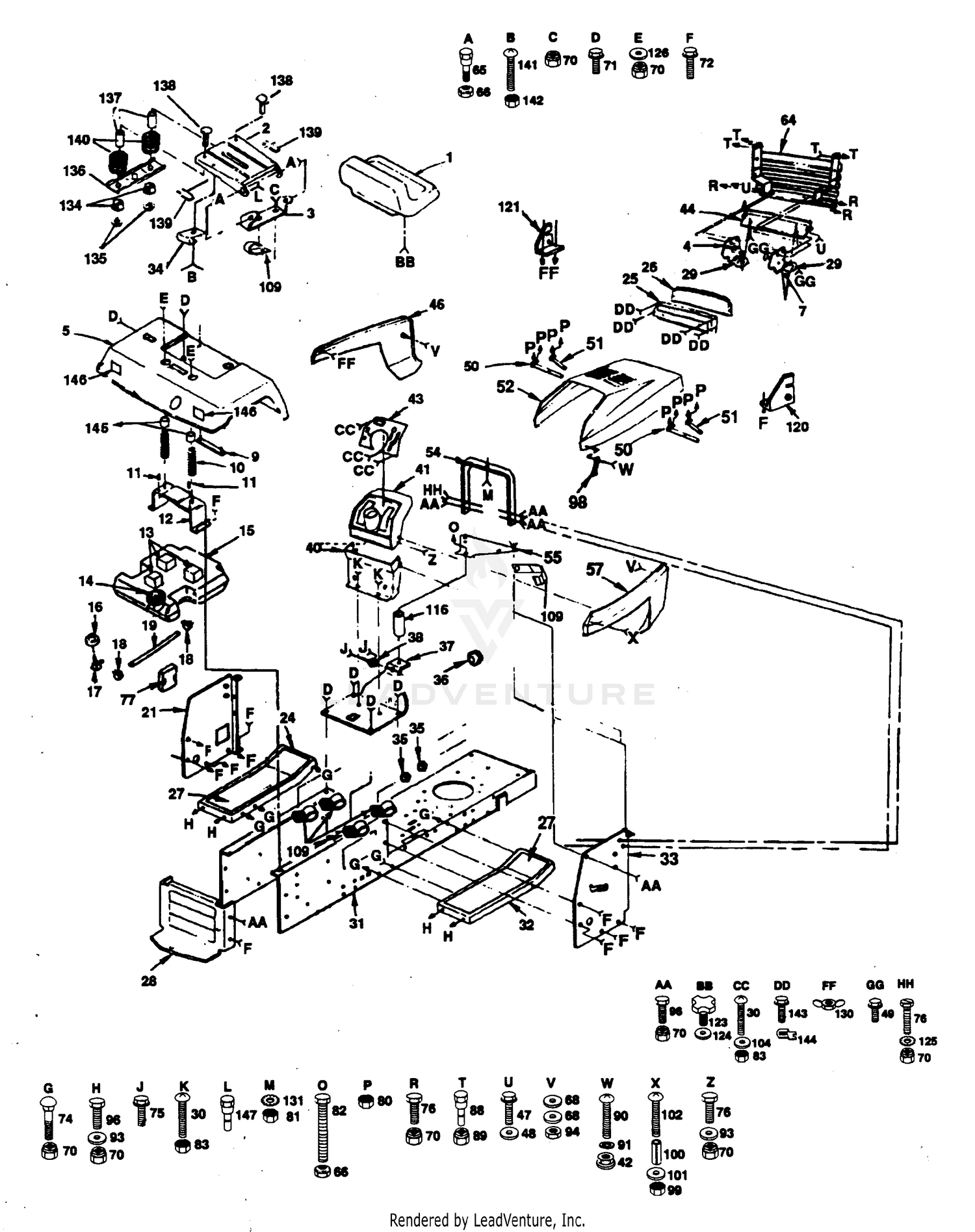

| Ref | Part Number | Description |
|---|
| 1 |
532127440 |
Seat (AYP part number) Price: $139.99 |
| 2 |
532124294 |
Pan, Seat (AYP part number) Price: $14.69 |
| 3 |
532126656 |
Bracket, Pivot, Seat (AYP part number) Price: $5.46 |
| 4 |
532110855 |
Bracket, Asm. L.H. Pivot (AYP part number) Price: $6.91 |
| 5 |
532124998 |
Fender (AYP part number) Price: $3.33 |
| 7 |
532110854 |
Bracket, Asm. R.H. Pivot (AYP part number) Price: $18.29 |
| 9 |
532140675 |
STRAP This part replaces 532105511. Price: $3.99 |
| 10 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 11 |
532105531 |
Nut, Push (AYP part number) Price: $2.99 |
| 12 |
532137113 |
Bracket Pnt Fender (AYP part number) This part replaces 532105509. Price: $5.99 |
| 13 |
532106082 |
Pad, Spacer (AYP part number) Price: $2.99 |
| 14 |
532123549 |
Cap, Fuel (AYP part number) Price: $11.99 |
| 15 |
532106020 |
Tank, Fuel (AYP part number) Price: $55.00 |
| 16 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $2.99 |
| 17 |
532008710 |
Fuel Tank Stem (AYP part number) This part replaces 532124951. Price: $2.52 |
| 18 |
532123487 |
Clamp, Hose (AYP part number) Price: $3.99 |
| 19 |
532008542 |
Line, Fuel (AYP part number) This part replaces 532124953. Price: $4.99 |
| 21 |
532124118 |
Panel, Dash, L.H. (AYP part number) Price: $17.94 |
| 24 |
532124888 |
Footrest, L.H. (AYP part number) Price: $3.33 |
| 25 |
532124392 |
Bezel, Assembly (AYP part number) This part replaces 532124939. Price: $109.99 |
| 26 |
532106395 |
Lens (AYP part number) Price: $55.81 |
| 27 |
532133671 |
Pad, Footrest (AYP part number) Price: $7.99 |
| 28 |
532127866 |
Drawbar (AYP part number) Price: $45.99 |
| 29 |
819111212 |
Washer, 11/32 X 3/4 X 12 Ga. (AYP part number) Price: $5.99 |
| 30 |
874180512 |
Screw, Cr. Thd. 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 31 |
532127213 |
Chassis (AYP part number) Price: $3.33 |
| 32 |
532124889 |
Footrest, R.H. (AYP part number) Price: $3.33 |
| 33 |
532133748 |
Panel, Dash, R.H. (AYP part number) Price: $3.33 |
| 34 |
532124967 |
Clip, Insulated (AYP part number) Price: $5.46 |
| 35 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 36 |
532124934 |
Grommet (AYP part number) Price: $5.46 |
| 37 |
532124766 |
Saddle (AYP part number) Price: $34.99 |
| 38 |
532155108 |
KIT/BUSH This part replaces 532124720. Price: $3.99 |
| 40 |
532104805 |
Dash Assembly, Lower (AYP part number) Price: $34.49 |
| 41 |
532140398 |
Dash Black Yard Pro (AYP part number) This part replaces 532124252. Price: $129.99 |
| 42 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532125004. Price: $2.99 |
| 43 |
532124769 |
Plate, Dash (AYP part number) Price: $3.33 |
| 44 |
532124978 |
Strap, Grill (AYP part number) Price: $3.33 |
| 46 |
532125353 |
Panel, Side, L.H. (AYP part number) Price: $3.33 |
| 47 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817190412. Price: $3.99 |
| 48 |
819091016 |
Washer 9/32 X 5/8 X 16 Ga. (AYP part number) Price: $2.99 |
| 49 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 50 |
532106784 |
Strap Assembly, Hinge, Rear (AYP part number) Price: $82.19 |
| 51 |
532104618 |
Strap Assembly, Hinge, Front (AYP part number) Price: $82.19 |
| 52 |
532125351 |
Hood (AYP part number) Price: $3.33 |
| 54 |
532124130 |
Support, Dash (AYP part number) Price: $12.22 |
| 55 |
532106965 |
Plate, Support, Battery (AYP part number) Price: $10.37 |
| 57 |
532125367 |
Panel, Side R.H. (AYP part number) Price: $3.33 |
| 64 |
532122100 |
Grill Assembly (AYP part number) Price: $219.99 |
| 65 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 66 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 68 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 70 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 71 |
817490608 |
Screw, Hex Washer Thread Rolling 3/8-16 x 1/2 (AYP part number) Price: $3.99 |
| 72 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 74 |
872110606 |
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) Price: $2.99 |
| 75 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 76 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 77 |
532121794 |
Cover, Access (AYP part number) Price: $3.99 |
| 80 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 82 |
874760532 |
Bolt, Hex 5/16-18 x 2 (AYP part number) Price: $2.99 |
| 83 |
873510500 |
Nut, Keps 5/16-18 (AYP part number) Price: $5.99 |
| 88 |
532007605 |
BOLT This part replaces 532123481. Price: $3.99 |
| 89 |
873680400 |
Crownlock Nut 1/4-20 (AYP part number) Price: $2.99 |
| 90 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $3.99 |
| 91 |
810071000 |
Washer, Lock #10 (AYP part number) Price: $2.99 |
| 93 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 94 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 96 |
874760612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 98 |
532109808 |
Latch, Hood (AYP part number) Price: $2.99 |
| 99 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 100 |
532007206 |
Spacer, Split 10 x 3/4 (AYP part number) Price: $3.99 |
| 101 |
819070816 |
Washer 7/32 x 1/2 x 16 Ga. (AYP part number) This part replaces 819070818. Price: $5.99 |
| 102 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $5.99 |
| 104 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 109 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 116 |
532121236 |
Spacer (AYP part number) Price: $2.38 |
| 120 |
532110853 |
Bracket Assembly, R.H. (AYP part number) Price: $3.74 |
| 121 |
532110852 |
Bracket Assembly, L.H. (AYP part number) Price: $3.79 |
| 123 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 124 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Ga. (AYP part number) Price: $3.99 |
| 125 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 126 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 130 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 131 |
810040400 |
LOCKWASHER This part replaces 811050400. Price: $3.99 |
| 134 |
532121248 |
Bushing, Snap .80 (AYP part number) Price: $3.99 |
| 135 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 136 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 137 |
532121249 |
Spacer, Split .28 x .88 (AYP part number) Price: $3.99 |
| 138 |
872050411 |
Bolt, Carr. 1/4-20 x 1-3/8 Price: $2.99 |
| 139 |
532121251 |
Foam Strip (AYP part number) Price: $5.46 |
| 140 |
532123740 |
Spring. Compression (AYP part number) Price: $3.99 |
| 141 |
874641008 |
Screw, Pan Hd. #10-32 (AYP part number) Price: $2.99 |
| 142 |
873951000 |
Nut, Keps #10 (AYP part number) Price: $5.99 |
| 143 |
817211010 |
Screw, Hex WH HD Tap #10-16 X 5/8 (AYP part number) Price: Call Us |
| 145 |
532124238 |
Spring Cap (AYP part number) Price: $3.99 |
| 146 |
532106202 |
Reflector Taillight (AYP part number) Price: $3.99 |
| 147 |
532127018 |
Bolt, Shoulder 5/16-18 x .62 (AYP part number) Price: $3.99 |
