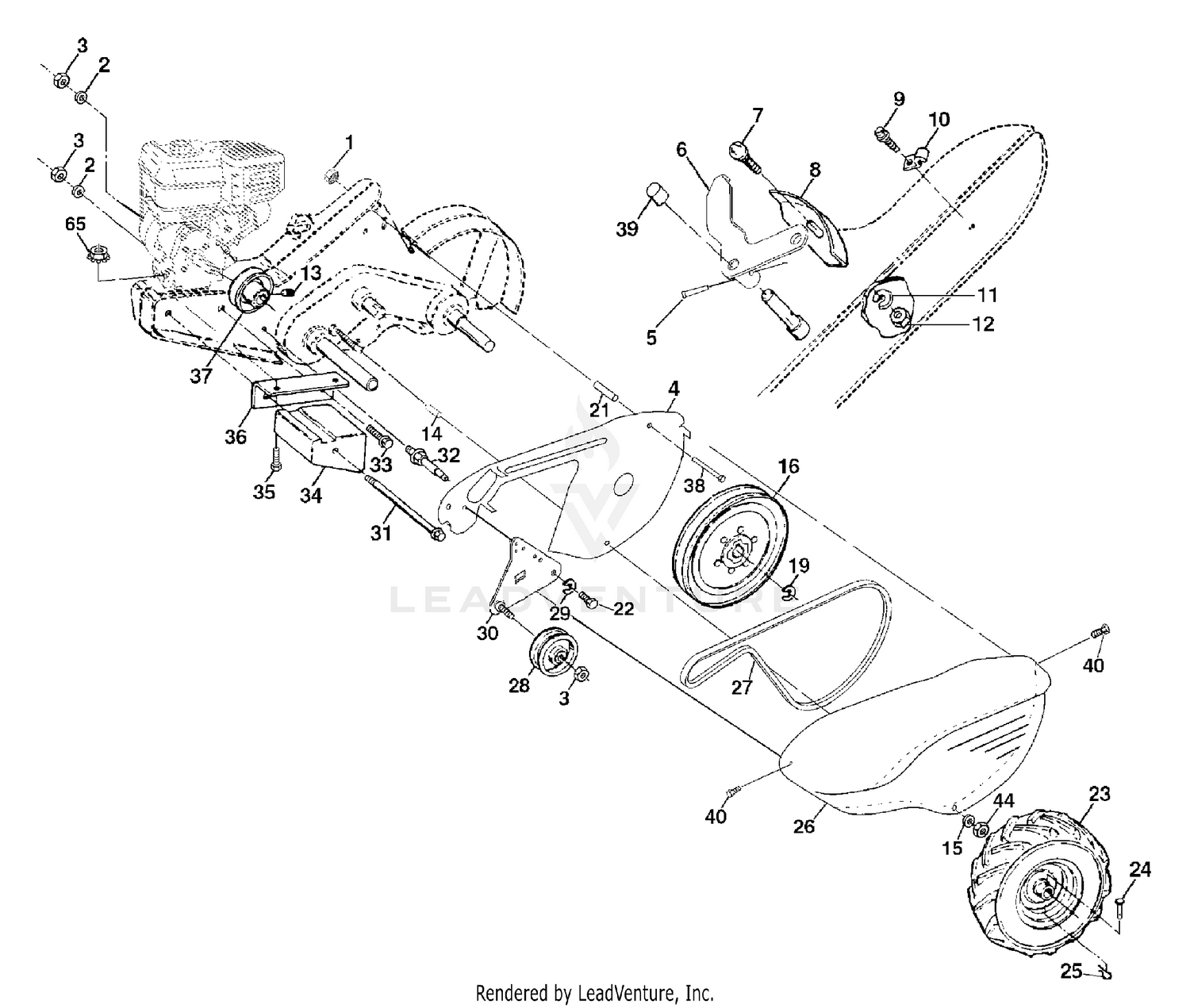

| Ref | Part Number | Description |
|---|
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 1 |
73510500 |
Nut, Keps 5/16-18 Price: Call Us |
| 2 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
73220600 |
Nut, Hex 3/8-16 Price: Call Us |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 4 |
170127 |
Shield, Inner Belt Guard Price: Call Us |
| 5 |
164329 |
Pin Spiral Flared Price: Call Us |
| 5 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 6 |
110111X |
Lever, Shift Price: Call Us |
| 6 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 7 |
72110404 |
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 Price: Call Us |
| 8 |
106-4619 |
ENGINE KIT 18HP VANGUARD GAS This part replaces 100-6424. Price: $3,846.49 |
| 8 |
8700J |
Plate, Shift Indicator Price: Call Us |
| 9 |
86777 |
Screw, Hex, Washer Head, Slotted #10-24 x 1/2 Price: Call Us |
| 9 |
98-0616 |
MUFFLER Price: $136.88 |
| 10 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400-03. Price: $18.94 |
| 10 |
9484R |
Clip Price: Call Us |
| 11 |
10040400 |
Washer, Lock 1/4 Price: Call Us |
| 12 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 12 |
73220400 |
Nut, Hex 1/4-20 Price: Call Us |
| 13 |
23230506 |
Screw, Set, Hex 5/16-18 x 3/8 Price: Call Us |
| 13 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 14 |
156117 |
Spacer, Split 0.327 x 0.42 x 1.220 Price: Call Us |
| 14 |
322-8 |
SCREW-HH Price: $1.26 |
| 15 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
145102 |
Sheave, Transmission Price: Call Us |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 19 |
12000028 |
Ring, Retainer Price: Call Us |
| 19 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 20 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 21 |
110652X |
Spacer, Split 0.327 x 0.42 x 2.09 Price: Call Us |
| 21 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 22 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 22 |
74770508 |
Bolt, Fin Hex 5/16-24 x 1/2 Price: Call Us |
| 23 |
102190X |
Tire Price: Call Us |
| 23 |
150750 |
Rim Price: Call Us |
| 23 |
324-7 |
SCREW-HH Price: $1.79 |
| 23 |
795R |
Tire Valve Price: Call Us |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 24 |
126875X |
Rivet, Drilled Price: Call Us |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
4497H |
Clip, Hairpin Price: Call Us |
| 26 |
165501X603 |
Guard, Belt Price: Call Us |
| 26 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 27 |
132801 |
Belt, V Price: Call Us |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 28 |
104679X |
Pulley, Idler Price: Call Us |
| 29 |
12000032 |
Ring, Klip Price: Call Us |
| 30 |
159229 |
Bracket, Idler Price: Call Us |
| 30 |
43-2830 |
NUT-HEX Price: $0.39 |
| 31 |
102384X |
Bolt, Hex 5/16-16 x 12 Price: Call Us |
| 31 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 32 |
102141X |
Shaft, Idler Arm Price: Call Us |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 33 |
2412-81 |
CLAMP-R Price: $3.39 |
| 33 |
74760616 |
Bolt, Hex 3/8-16 x 1 Price: Call Us |
| 34 |
102383X |
Counterweight, L. H. Price: Call Us |
| 35 |
74760524 |
Bolt, Hex 5/16-18 x 1-1/2 Price: Call Us |
| 36 |
102331X |
Bracket, Reinforcement, L. H. Price: Call Us |
| 37 |
130812 |
Sheave, Engine Price: Call Us |
| 38 |
74760544 |
Bolt, Fin Hex 5/16-18 x 2-3/4 Price: Call Us |
| 39 |
140062 |
Cap, Plunger Price: Call Us |
| 40 |
170488 |
Screw Hex Wsh Slt # 10-24 x .50 Price: Call Us |
| 44 |
73800500 |
Nut, Lock 5/16-18 Price: Call Us |
