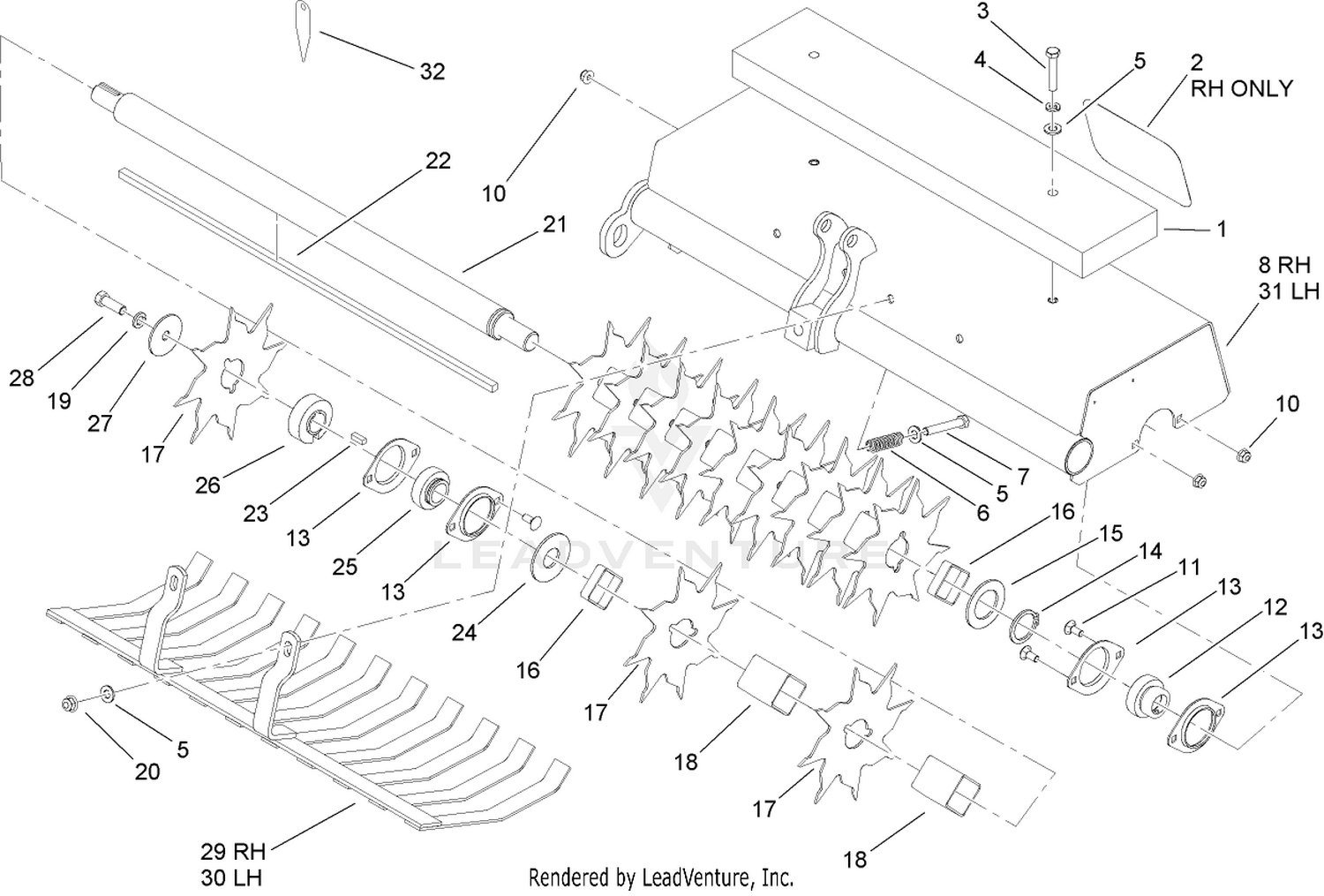

| Ref | Part Number | Description |
|---|
| 1 |
20-9430-01 |
WEIGHT Price: $912.11 |
| 2 |
62-5550 |
DECAL Price: $9.32 |
| 3 |
323-10 |
SCREW-HH Price: $0.89 |
| 4 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
20-9550 |
SPRING-COMPRESSION Price: $7.70 |
| 7 |
323-12 |
SCREW-HH Price: $1.14 |
| 8 |
108-2911-01 |
HOUSING-SPIKER, RH Price: $599.49 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 12 |
251-253 |
BEARING Price: $22.84 |
| 13 |
251-255 |
FLANGE Price: $15.34 |
| 14 |
32151-44 |
RING-RETAINING Price: $2.99 |
| 15 |
20-9490 |
WASHER Price: $8.14 |
| 16 |
20-7400 |
SPACER-END Price: $11.87 |
| 17 |
20-7380-01 |
BLADE-SPIKE, PROFILED Price: $36.82 |
| 18 |
20-9480 |
SPACER Price: $12.27 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 20 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 21 |
92-7196 |
SHAFT Price: $440.72 |
| 22 |
20-9460 |
KEY-SQUARE Price: $75.81 |
| 23 |
20-9540 |
KEY-SQUARE Price: $4.74 |
| 24 |
20-9500 |
WASHER Price: $3.53 |
| 25 |
251-253 |
BEARING This part replaces 251-254. Price: $22.84 |
| 26 |
112-7690-01 |
HUB ASM This part replaces 20-9980-01. Price: $197.32 |
| 27 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 28 |
324-5 |
SCREW-HH Price: $0.54 |
| 29 |
112-7679-01 |
RH FORK ASM This part replaces 20-9150-01. Price: $614.00 |
| 30 |
112-7680-01 |
LH FORK ASM This part replaces 20-9140-01. Price: $614.00 |
| 31 |
108-2910-01 |
HOUSING-SPIKER, LH Price: $599.49 |
