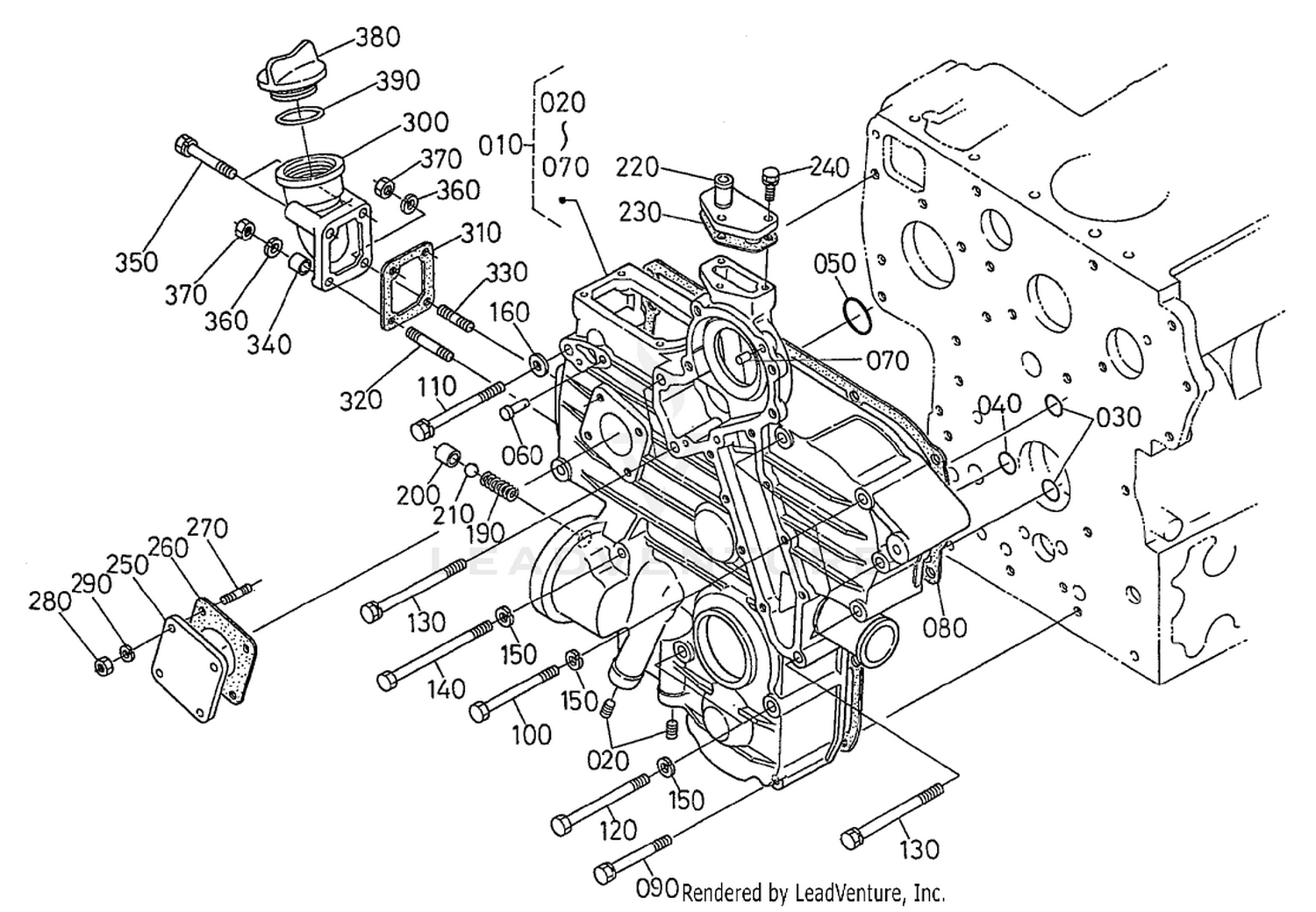

| Ref | Part Number | Description |
|---|
| 10 |
112-8417 |
GEARCASE ASM This part replaces 100-9161. Price: $1,717.33 |
| 20 |
107-0108 |
PLUG Price: $2.84 |
| 30 |
107-0104 |
O-RING Price: $1.31 |
| 40 |
107-0105 |
O-RING Price: $1.40 |
| 50 |
107-0106 |
O-RING Price: $1.48 |
| 60 |
98-7550 |
PIN-SPRING, START Price: $7.65 |
| 70 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 80 |
98-7552 |
PACKING-CASE, GEAR Price: $44.07 |
| 90 |
98-7553 |
BOLT Price: $0.73 |
| 100 |
99-8336 |
BOLT Price: $3.41 |
| 110 |
98-7555 |
BOLT Price: $4.93 |
| 120 |
98-7556 |
BOLT Price: $2.07 |
| 130 |
98-7557 |
BOLT Price: $3.62 |
| 140 |
98-7558 |
BOLT Price: $1.60 |
| 150 |
105-2893 |
WASHER-SPRING Price: $0.48 |
| 160 |
98-7536 |
WASHER-PLAIN Price: $0.28 |
| 190 |
98-7563 |
SPRING Price: $2.74 |
| 200 |
98-7564 |
SEAT-VALVE Price: $9.15 |
| 210 |
98-7565 |
BALL Price: $0.33 |
| 220 |
98-7566 |
FLANGE-RETURN, WATER Price: $59.56 |
| 230 |
115-8521 |
GASKET-FLANGE, RETURN This part replaces 98-7567. Price: $2.63 |
| 240 |
98-7568 |
BOLT Price: $0.84 |
| 250 |
98-7569 |
COVER Price: $6.40 |
| 260 |
98-7570 |
GASKET-METER, HOUR Price: $12.56 |
| 270 |
98-7571 |
STUD Price: $2.00 |
| 280 |
98-7572 |
NUT Price: $0.32 |
| 290 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 300 |
100-9162 |
FLANGE-FILTER, OIL Price: $27.60 |
| 310 |
100-9163 |
GASKET Price: $3.22 |
| 320 |
98-7571 |
STUD Price: $2.00 |
| 330 |
100-9164 |
STUD Price: $1.45 |
| 340 |
100-9165 |
COLLAR Price: $6.97 |
| 350 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 360 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 370 |
98-7572 |
NUT Price: $0.32 |
| 380 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-7429. Price: $7.25 |
