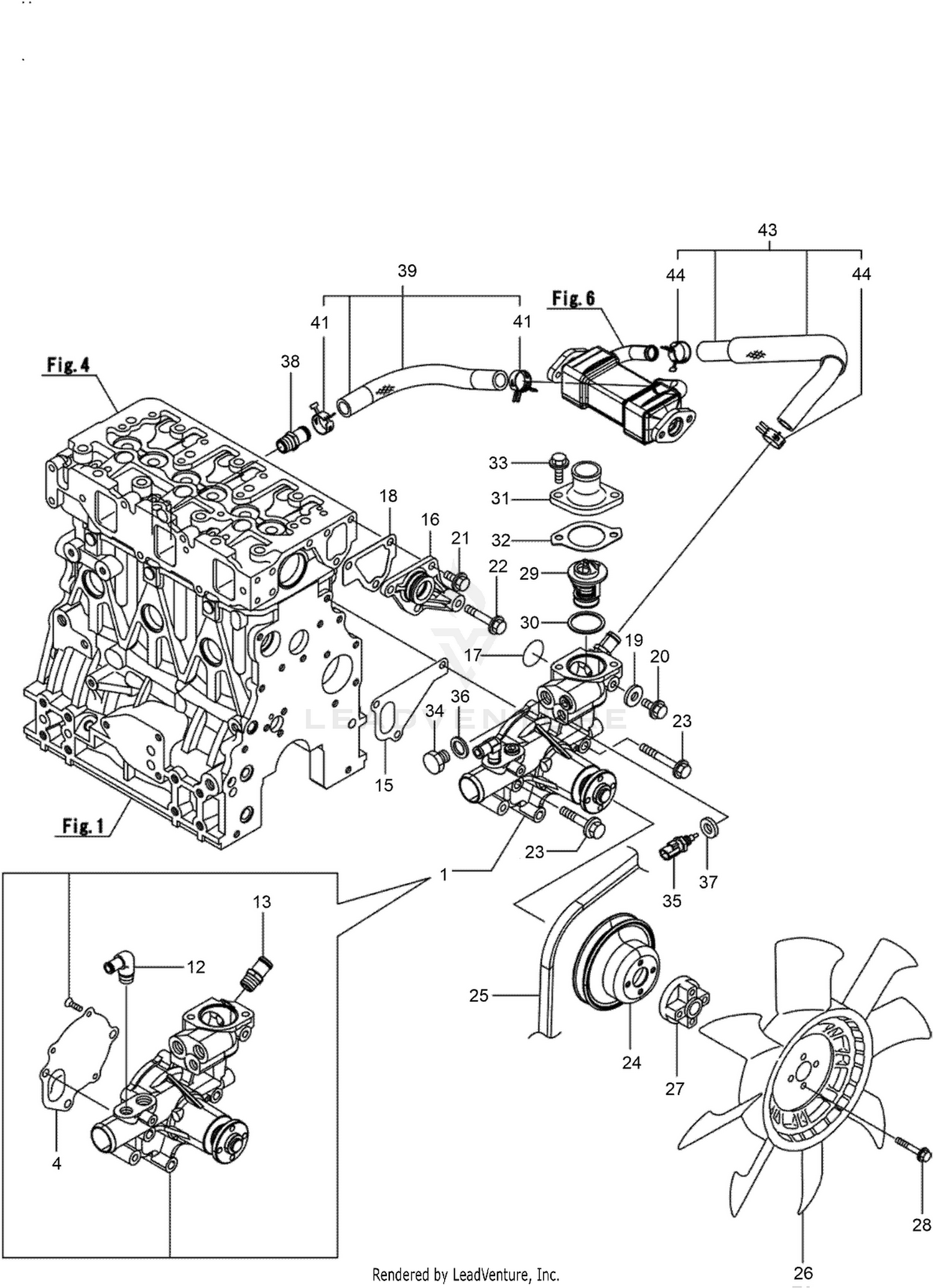

Cooling Water System Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-7176 | CW PUMP ASM Price: $627.83 |
| 4 | 125-6998 | GASKET Price: $12.33 |
| 12 | 125-7001 | ELBOW Price: $40.49 |
| 13 | 127-3017 | JOINT Price: $71.31 |
| 15 | 125-7047 | GASKET Price: $5.13 |
| 16 | 125-6986 | JOINT Price: $24.66 |
| 17 | 125-7048 | O-RING Price: $2.87 |
| 18 | 125-6978 | GASKET Price: $2.00 |
| 19 | 125-7192 | GASKET Price: $1.14 |
| 20 | 138-7840 | BOLT Price: $2.67 |
| 21 | 125-7214 | BOLT Price: $3.77 |
| 22 | 125-7219 | BOLT Price: $4.58 |
| 23 | 125-7222 | BOLT Price: $4.99 |
| 24 | 125-7039 | V-PULLEY Price: $23.56 |
| 25 | 121-1709 | BELT-V Price: $29.19 |
| 26 | 127-3809 | FAN Price: $75.86 |
| 27 | 127-4768 | SPACER Price: $88.50 |
| 28 | 125-7211 | BOLT Price: $3.48 |
| 29 | 125-7029 | THERMOSTAT Price: $56.77 |
| 30 | 125-7026 | GASKET Price: $2.90 |
| 31 | 140-7171 | COVER-THERMOSTAT Price: $85.90 |
| 32 | 125-7110 | GASKET Price: $3.76 |
| 33 | 125-7594 | BOLT Price: $3.00 |
| 34 | 125-6953 | PLUG Price: $7.59 |
| 35 | 125-7124 | SENSOR-THERMOSTAT, CW Price: $96.15 |
| 36 | 125-6979 | GASKET Price: $2.55 |
| 37 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 38 | 127-3017 | JOINT Price: $71.31 |
| 39 | 127-3072 | WATER IN PIPE ASM Price: $51.67 |
| 41 | 127-3020 | CLIP-HOSE Price: $2.92 |
| 43 | 127-3811 | CW PIPE ASM Price: $91.14 |
