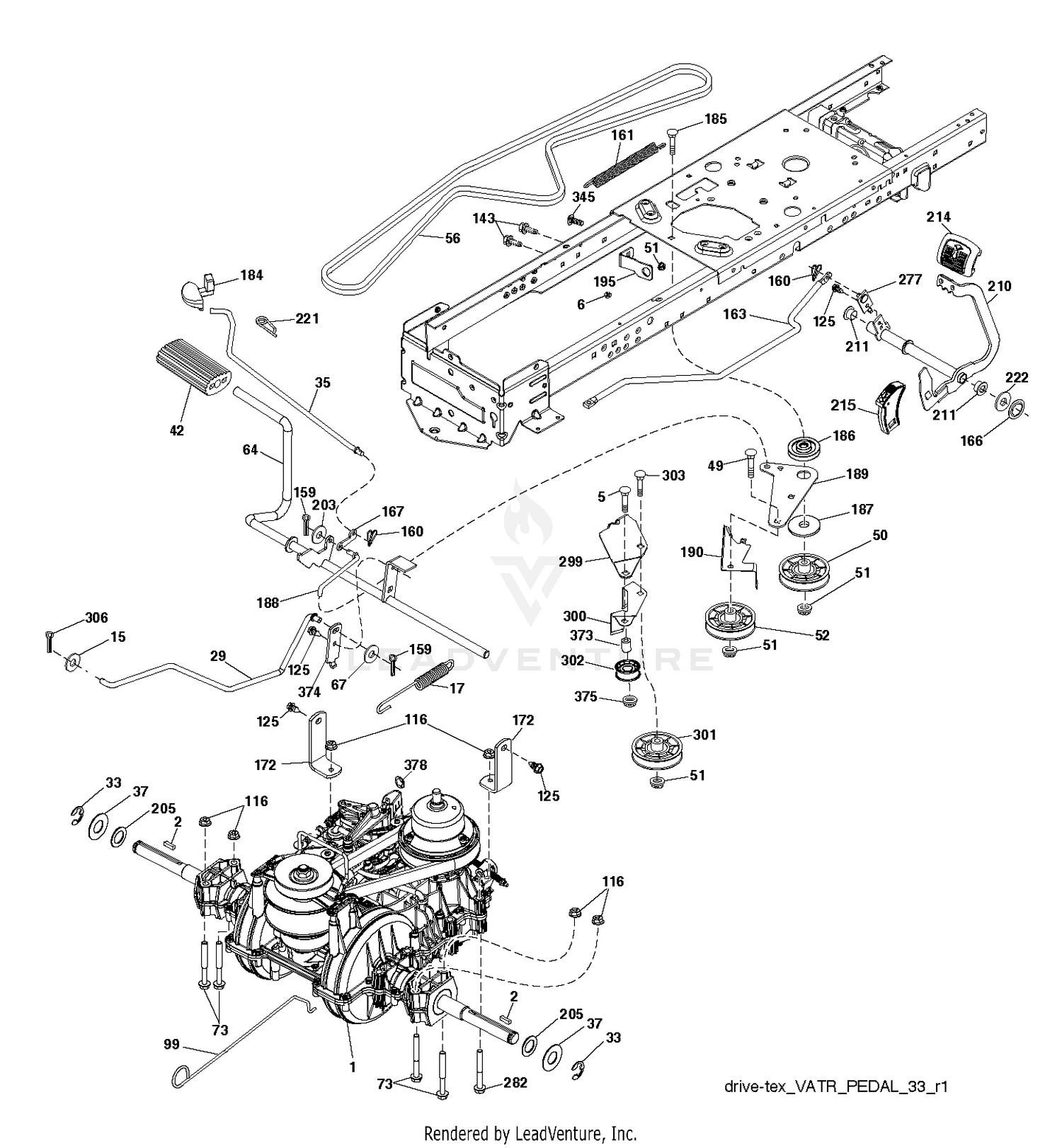

| Ref | Part Number | Description |
|---|
| 1 |
29-5670-01 |
TRACTION PEDAL This part replaces 29-5670. Price: $71.84 |
| 2 |
28-5130 |
TRACTION PEDAL PAD Price: $33.21 |
| 2 |
532123583 |
SQUARE KEY Price: $2.99 |
| 3 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 4 |
29-5630 |
DISCONTINUED Price: Call Us |
| 5 |
70-9830 |
SHAFT - TRACT. PEDAL This part replaces 29-5640. Price: $21.93 |
| 5 |
874760636 |
BOLT Price: $2.99 |
| 6 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 6 |
532124028 |
GROMMET T Price: $3.99 |
| 7 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 8 |
5-7570 |
WASHER-FLAT Price: $6.19 |
| 9 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 10 |
29-5600 |
DISCONTINUED Price: Call Us |
| 11 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 12 |
3218-5 |
NUT-JAM Price: $0.27 |
| 13 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 14 |
3220-5 |
NUT-JAM Price: $0.65 |
| 15 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 17 |
501487101 |
SPRING.BRAKE.VARIATOR Price: $1.99 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 35 |
583864501 |
ROD .BRAKE. PARKING. GT. HUSQ. Price: $4.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532197253 |
BELT.DRIVE.MOWER.TEX.42" Price: $27.99 |
| 64 |
589671401 |
SHAFT VARIATOR PEDAL CROSS This part replaces 532448353. Price: $19.99 |
| 67 |
582580101 |
WASHER.NYLON;13/32X13/16X.109 Price: $1.99 |
| 73 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 99 |
532435935 |
ROD.BYPASS.VARIATOR.GEN2 Price: $2.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 163 |
583971301 |
ROD.CONTROL.PEDAL.VARIATOR This part replaces 587847902. Price: $19.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 172 |
583974201 |
STRAP.TORQUE.VARIATOR Price: $1.99 |
| 184 |
587653701 |
HANDLE.PARKING.BRAKE.H (BLK) Price: $7.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 195 |
581504601 |
BRACKET.BRAKE.BRAKE.VAR.SD Price: $3.99 |
| 203 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 210 |
588921001 |
PEDAL.ASM.ROCKET.VARIATOR.LT This part replaces 532448270. Price: $27.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $4.99 |
| 215 |
532448254 |
CAP.PEDAL.REVERSE.VARIATOR Price: $4.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $2.99 |
| 277 |
532448500 |
SUBASM.LINK.ROCKER.PEDAL Price: $11.99 |
| 282 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $2.99 |
| 299 |
532415683 |
BRACKET.MOUNT.IDLERS Price: $6.99 |
| 300 |
532415681 |
KEEPER.IDLERS.REAR.VARIATOR Price: $3.99 |
| 301 |
532415680 |
PULLEY.IDLER.V-GROOVE Price: $17.99 |
| 302 |
581420501 |
PULLEY.IDLER.FLAT.2" Price: $14.99 |
| 303 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 306 |
876020416 |
PIN COTTER Price: $3.99 |
| 345 |
872110606 |
BOLT Price: $2.99 |
| 373 |
581461801 |
SPACER.IDLER Price: $2.99 |
| 374 |
581475201 |
ARM.CONTROL.BRAKE Price: $3.99 |
| 375 |
873680600 |
LOCKNUT Price: $1.99 |
