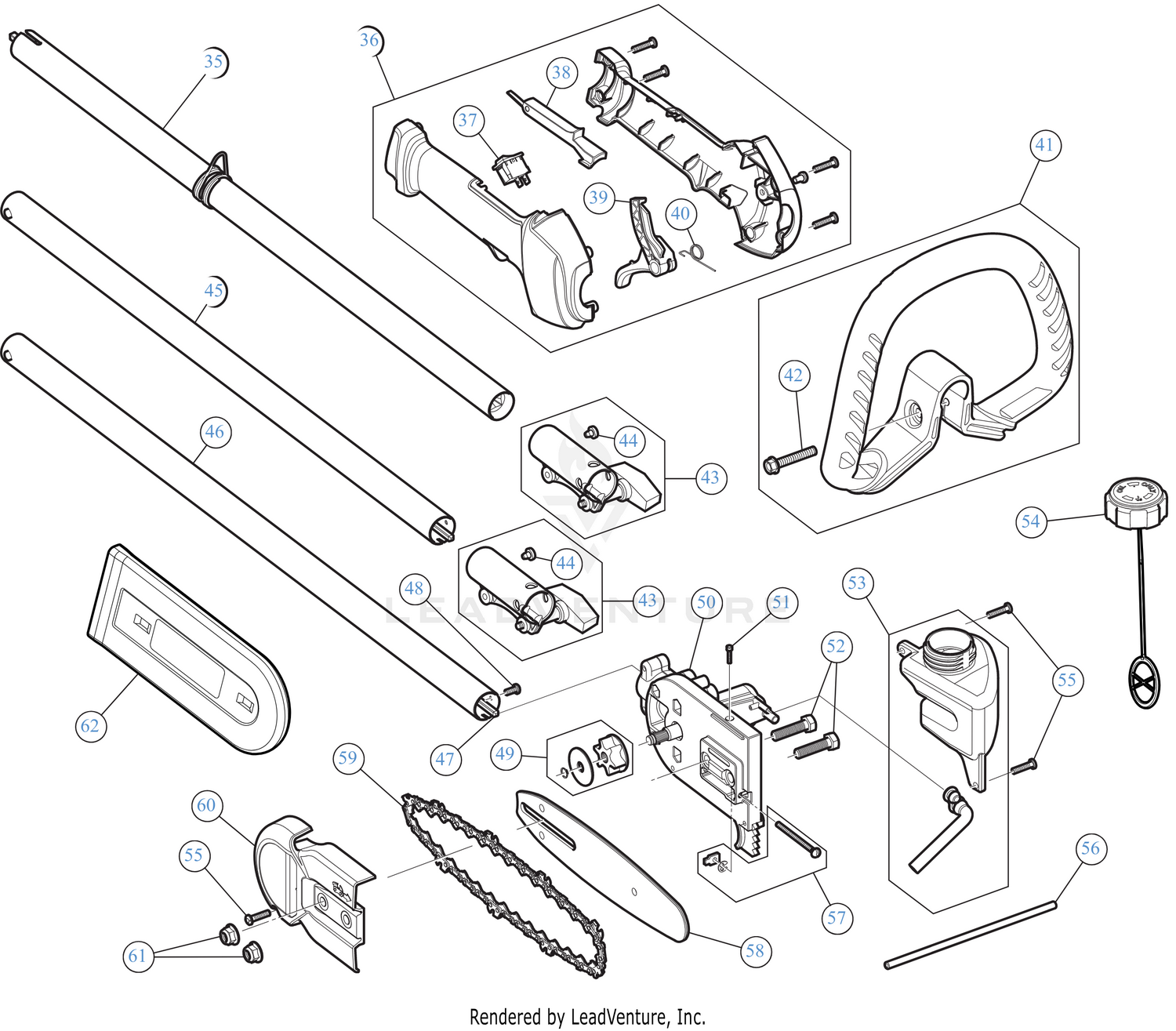

General Assembly — Parts Catalog

Ref	Part Number	Description
35	753-06880	BOOM ASSEMBLY UPR Price: $17.42
37	791-182405	SW, MOMENTARY ON/O Price: $9.29
38	731-08433C-10	LEVER LOCK OUT Price: $2.72
39	731-04970B-10	THROTTLE TRIGGER Price: $8.16
40	753-05007	TRIGGER SPRING Price: $4.42
42	753-06040	BOLT 1/4-20X1 1/2 Price: $6.01
44	791-182057	SCREW, 10-32X.250 TA Price: $3.93
45	753-09226	EXTENSION BOOM ASSEMBLY Price: $19.36
47	753-11123	FLEXIBLE DRIVE SHAFT Price: $57.38
48	710-0599	SCREW 1/4-20 X.500 Price: $3.86
49	753-05595	SPROCKET ASSEMBLY Price: $10.05
51	710-04696	SCREW 4X40X.50 Price: $3.38
52	710-0528	SCREW 5/16-18 x 1.25 GR5 Price: $3.90
53	753-11360	OIL TANK Price: $25.32
54	753-11375	OIL CAP Price: $6.86
55	791-181345	SCREW, #8-16X.750 PH Price: $3.75
56	753-05588	OIL LINE Price: $8.53
57	753-05597	CHAIN TENSION HDW Price: $9.09
58	753-05594	BAR 8" SPROCKET NOSE Price: $48.18
59	753-05592	CHAIN 8" 34 LINK .043 GAUGE Price: $33.49
60	753-05765	CHAIN GUARD Price: $10.52
61	712-04063	FLANGE LOCK NUT 5/16-18 Price: $3.56
