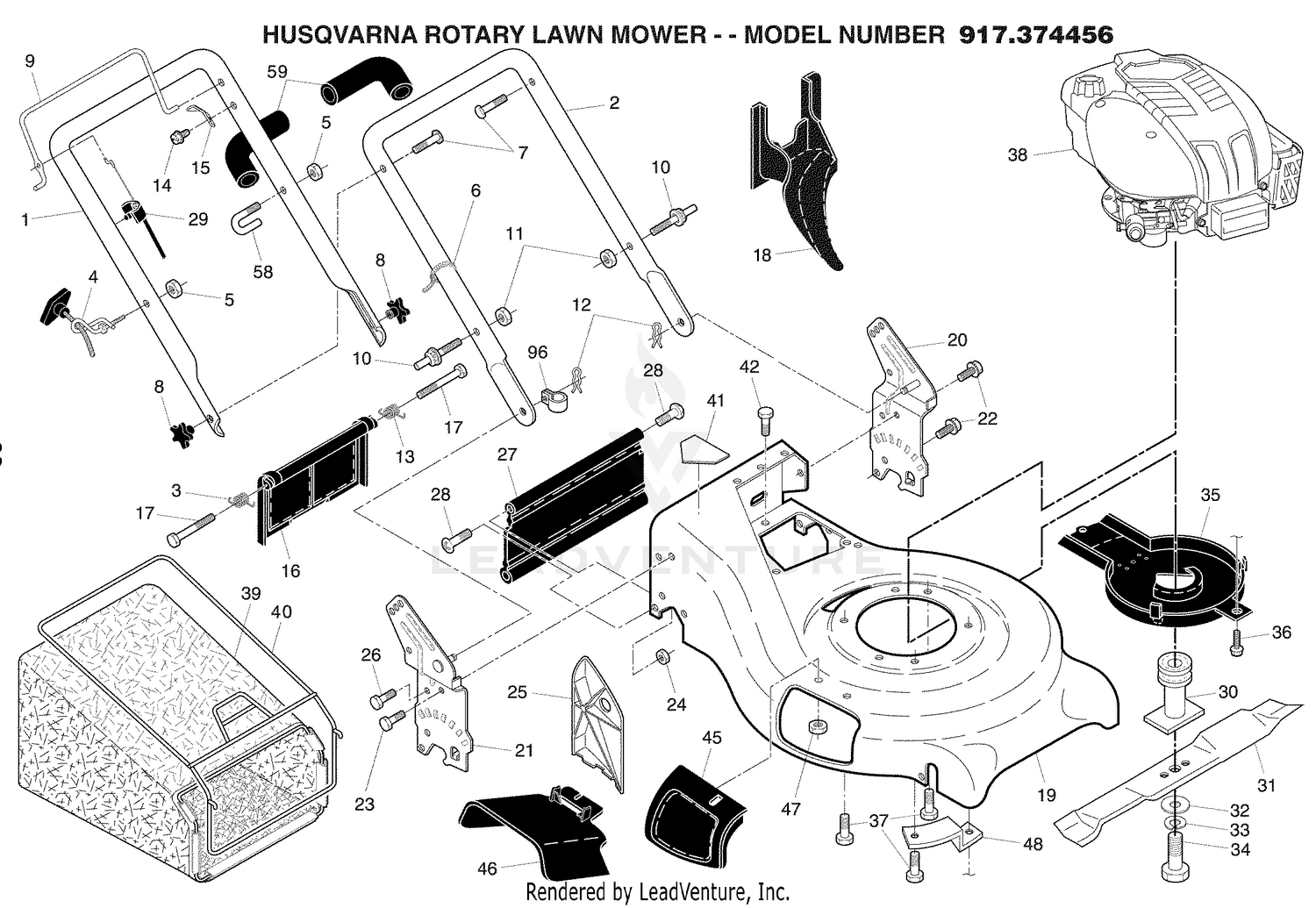

| Ref | Part Number | Description |
|---|
| 1 |
93-9945 |
DISCONTINUED Price: Call Us |
| 2 |
193664X498 |
Handle, Lower Price: Call Us |
| 2 |
321-6 |
SCREW-HH Price: $0.25 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
405416 |
Spring, Rear Door, RH Price: Call Us |
| 4 |
194788 |
Rope Guide Price: Call Us |
| 4 |
93-7182 |
SHIELD - FAN Price: $451.43 |
| 5 |
132004 |
Nut, Hex, with Lockwasher Insert 1/4-20 Price: Call Us |
| 6 |
66426 |
Wire, Tie Price: Call Us |
| 7 |
191574 |
Bolt, Handle 5/16-18 x 2-5/8 Price: Call Us |
| 8 |
185588 |
Knob, Handle Price: Call Us |
| 9 |
194580X422 |
Control Bar Price: Call Us |
| 10 |
188821 |
Pin, Handle Adjustment Price: Call Us |
| 11 |
751153 |
Nut, Hex Price: Call Us |
| 12 |
51793 |
Cotter, Hairpin Price: Call Us |
| 13 |
405415 |
Spring, Rear Door, LH Price: Call Us |
| 14 |
750634 |
Screw Price: Call Us |
| 15 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 16 |
401815X428 |
Rear Door Assembly Price: Call Us |
| 17 |
184193 |
Bolt, Rear Door Price: Call Us |
| 18 |
198170 |
Plug, Mulcher Price: Call Us |
| 19 |
410453 |
Kit, Housing Price: Call Us |
| 20 |
193917X422 |
Handle Bracket Asembly, LH Price: Call Us |
| 21 |
193916X422 |
Handle Bracket Assembly, RH Price: Call Us |
| 22 |
150078 |
Screw, Hex Washer Head Price: Call Us |
| 23 |
163183 |
Bolt, Hex Head 5/16-18 x 5/8 Price: Call Us |
| 24 |
73800500 |
Nut, Hex, with Lockwasher Insert 5/16-18 Price: Call Us |
| 25 |
161333 |
Baffl e, Side Price: Call Us |
| 26 |
163409 |
Screw, Hi-Lo Thread #12 x 5/8 Price: Call Us |
| 27 |
408442 |
Skirt, Rear Price: Call Us |
| 28 |
88652 |
Screw, Hinge 1/4-20 x 1.25 Price: Call Us |
| 29 |
191221 |
Cable, Operator Presence Price: Call Us |
| 30 |
189179 |
Blade Adapter / Pulley Price: Call Us |
| 31 |
406712 |
Blade, 21" Price: Call Us |
| 32 |
851074 |
Washer Price: Call Us |
| 33 |
850263 |
Washer, Lock Price: Call Us |
| 34 |
851084 |
Bolt, Hex Head Price: Call Us |
| 35 |
405843 |
Debris Shield Price: Call Us |
| 36 |
192325 |
Bolt Price: Call Us |
| 37 |
150406 |
Bolt, Engine Price: Call Us |
| 39 |
409726 |
Grassbag Price: Call Us |
| 40 |
411951 |
Frame, Grassbag Price: Call Us |
| 41 |
404763 |
Danger Decal Price: Call Us |
| 42 |
54583 |
Screw Price: Call Us |
| 45 |
183058X418 |
Mulcher Door Assembly Price: Call Us |
| 46 |
169699X418 |
Discharge Guard Price: Call Us |
| 47 |
88349 |
Nut, Hex Price: Call Us |
| 48 |
188839X004 |
Mounting Bracket, Debris Shield Price: Call Us |
| 58 |
182003 |
Clip, Packaging Price: Call Us |
| 59 |
182748 |
Grip, Foam Price: Call Us |
| 96 |
197991 |
Clip, Cable Price: Call Us |
| 404764 |
Warning |
Decal (not shown) Price: Call Us 404764 |
| 419903 |
Owner’s |
Manual, English / Spanish Available accessories not included with lawn mower: Price: Call Us 419903 |
| 7133500 |
Fuel |
Stabilizer Price: Call Us 7133500 |
| 7133623 |
Gas |
Can (2.5 Gallon Container) Price: Call Us 7133623 |
