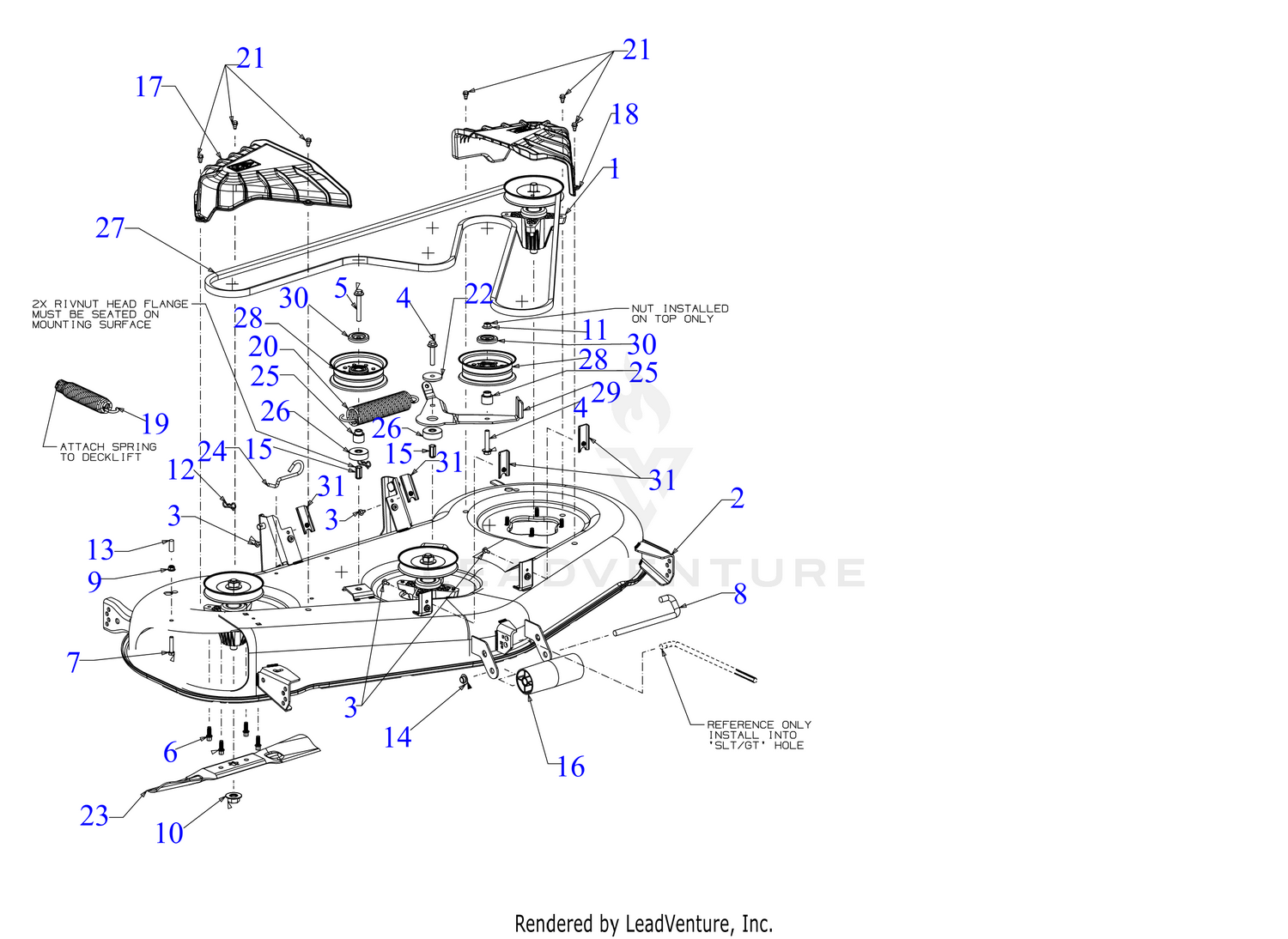

| Ref | Part Number | Description |
|---|
| 3 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 4 |
710-06178 |
SCREW 3/8-16 x 2.0 Price: $5.52 |
| 5 |
710-06214 |
SCREW 3/8-16 x 2.75 GR5 Price: $6.47 |
| 6 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 7 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 8 |
711-06377 |
ROLLER PIN 1/2 x 7.31 Price: $18.42 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-0417A |
HEX NUT Price: $6.50 |
| 11 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 12 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 13 |
720-05075 |
VINYL CAP Price: $3.66 |
| 14 |
726-0299 |
PUSH CAP Price: $7.03 |
| 15 |
728-05016 |
NUT RIVET 3/8-16 Price: $5.23 |
| 16 |
731-05679B |
ROLLER Price: $15.80 |
| 17 |
731-09968B |
SPINDLE COVER (RH) This part replaces 731-09968. Price: $25.19 |
| 18 |
731-09969C |
SPINDLE COVER (LH) This part replaces 731-09969A. Price: $24.94 |
| 19 |
732-05242C |
LIFT ASSIST SPRING (LARGE) This part replaces 732-05242A. Price: $19.33 |
| 20 |
732-05360C |
SPRING 1.25" DIA x 8.5" LONG This part replaces 732-05360A. Price: $30.00 |
| 21 |
738-04502 |
SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
| 22 |
738-05082 |
SHOULDER SPACER Price: $7.32 |
| 24 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 25 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 26 |
750-06184 |
SPACER .385ID x 1.75OD x .585THK Price: $10.02 |
| 27 |
954-05025A |
V-BELT B SEC x 139 Price: $81.61 |
| 28 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 29 |
783E08309B |
IDLER PIVOT BRACKET Price: $36.90 |
| 30 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
