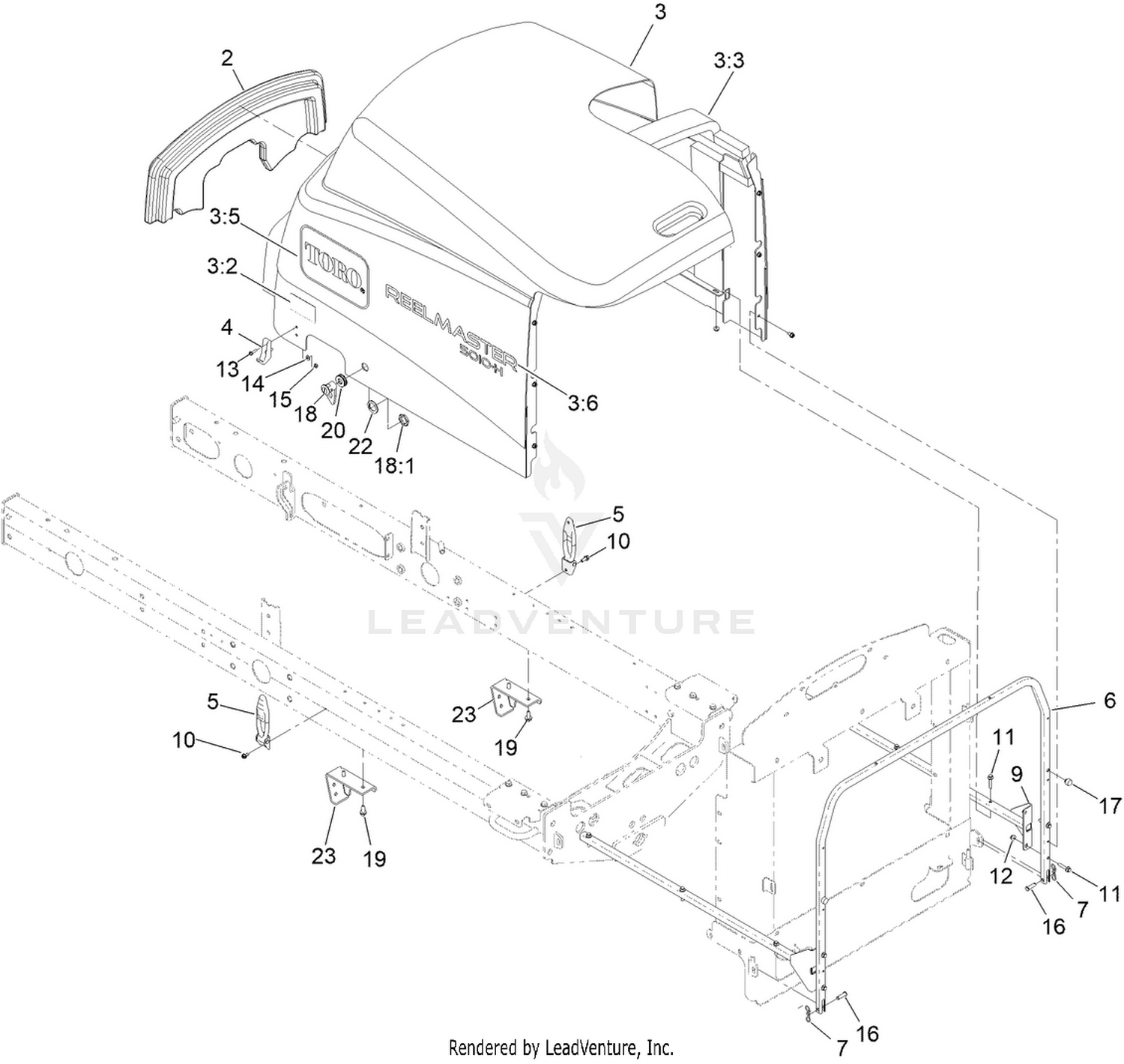

Hood Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 145-2456 | SADDLE-HOOD Price: $152.69 |
| 3 | 145-2538 | HOOD ASM (RM5510 SERVICE) Price: $2,138.65 |
| 4 | 103-2897 | LATCH-CATCH Price: $7.99 |
| 5 | 103-2898 | LATCH-RUBBER Price: $32.99 |
| 6 | 125-8819-03 | TUBE-FRAME, HOOD Price: $124.82 |
| 7 | 105-7512 | PIN-TIE, BOW Price: $4.27 |
| 9 | 108-1790-03 | TUBE Price: $95.49 |
| 10 | 32104-17 | SCREW-HWH Price: $0.99 |
| 11 | 3234-21 | SCREW-HHF Price: $2.19 |
| 12 | 104-7201 | NUT-HF Price: $0.69 |
| 13 | 32105-13 | SCREW-HWH Price: $1.59 |
| 14 | 3256-14 | WASHER-FLAT Price: $0.39 |
| 15 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 16 | 283-61 | PIN-YOKE Price: $1.56 |
| 17 | 107-8042 | BUMPER-RUBBER Price: $1.30 |
| 18 | 98-5398 | LATCH Price: $32.53 |
| 19 | 32104-32 | SCREW-HWH Price: $1.99 |
| 20 | 104-1453 | GROMMET Price: $6.57 |
| 22 | 99-4958 | SPACER Price: $2.39 |
