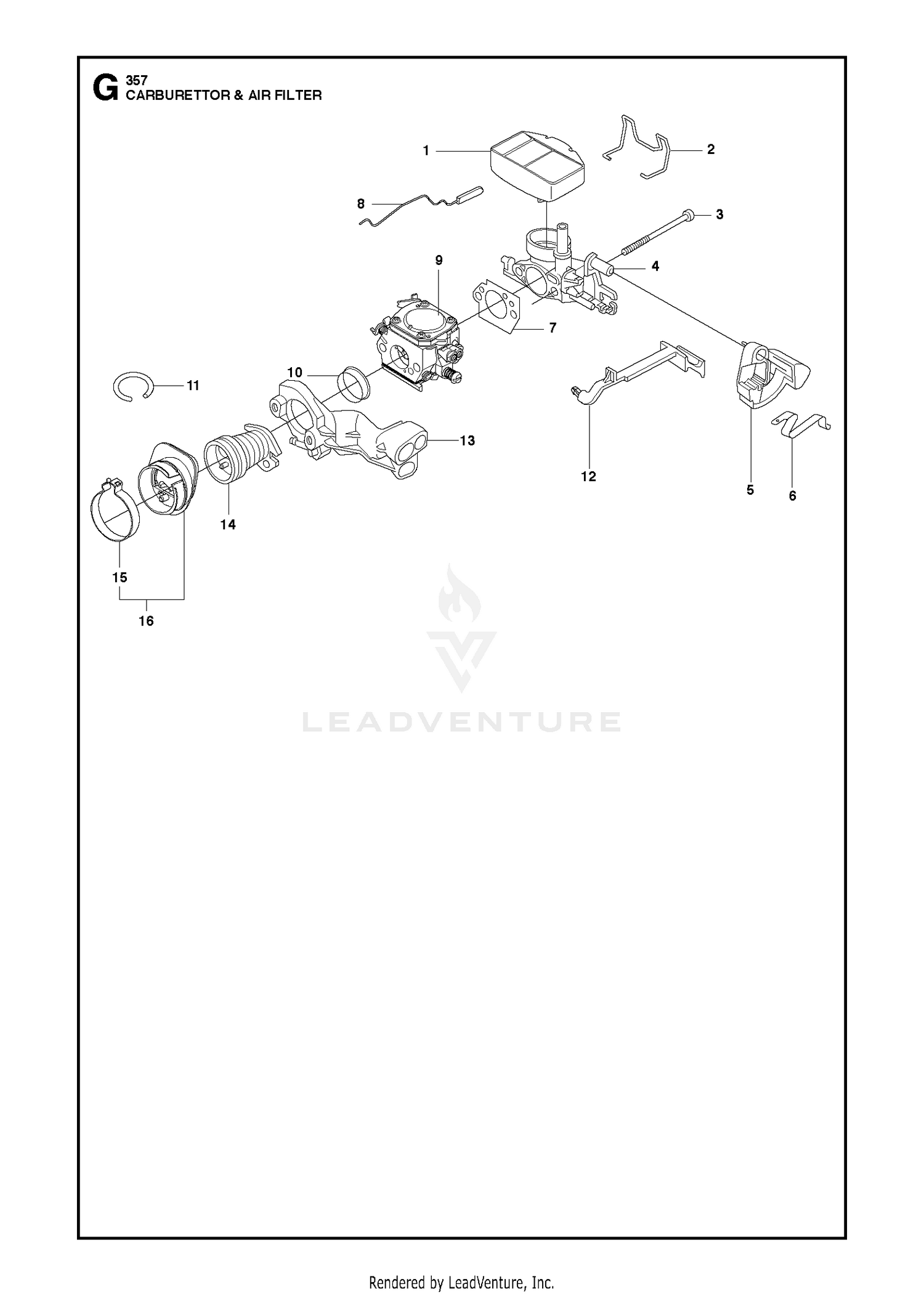

CARBURETOR & AIR FILTER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503962701 | LOOP Price: $7.99 |
| 3 | 725534155 | SCREW MC6S 5X50 Price: $4.99 |
| 4 | 544011002 | FILTER HOLDER Price: $19.99 |
| 5 | 503869502 | CONTROL Price: $6.99 |
| 6 | 503869702 | SPRING Price: $3.99 |
| 7 | 503967601 | GASKET Price: $4.99 |
| 8 | 503938702 | THROTTLE ROD Price: $11.99 |
| 9 | 505203002 | CARBURETOR W/SLEEVE This part replaces 505203001. Price: $79.99 |
| 10 | 504064401 | SUPPORT RING Price: $6.99 |
| 11 | 544325101 | HOSE, IMPULSE Price: $3.99 |
| 12 | 503922501 | CHOKE CONTROL Price: $7.99 |
| 13 | 503928502 | FLANGE Price: $4.99 |
| 14 | 503928702 | BELLOWS Price: $17.99 |
| 15 | 537438801 | CLAMP, INTAKE Price: $5.99 |
