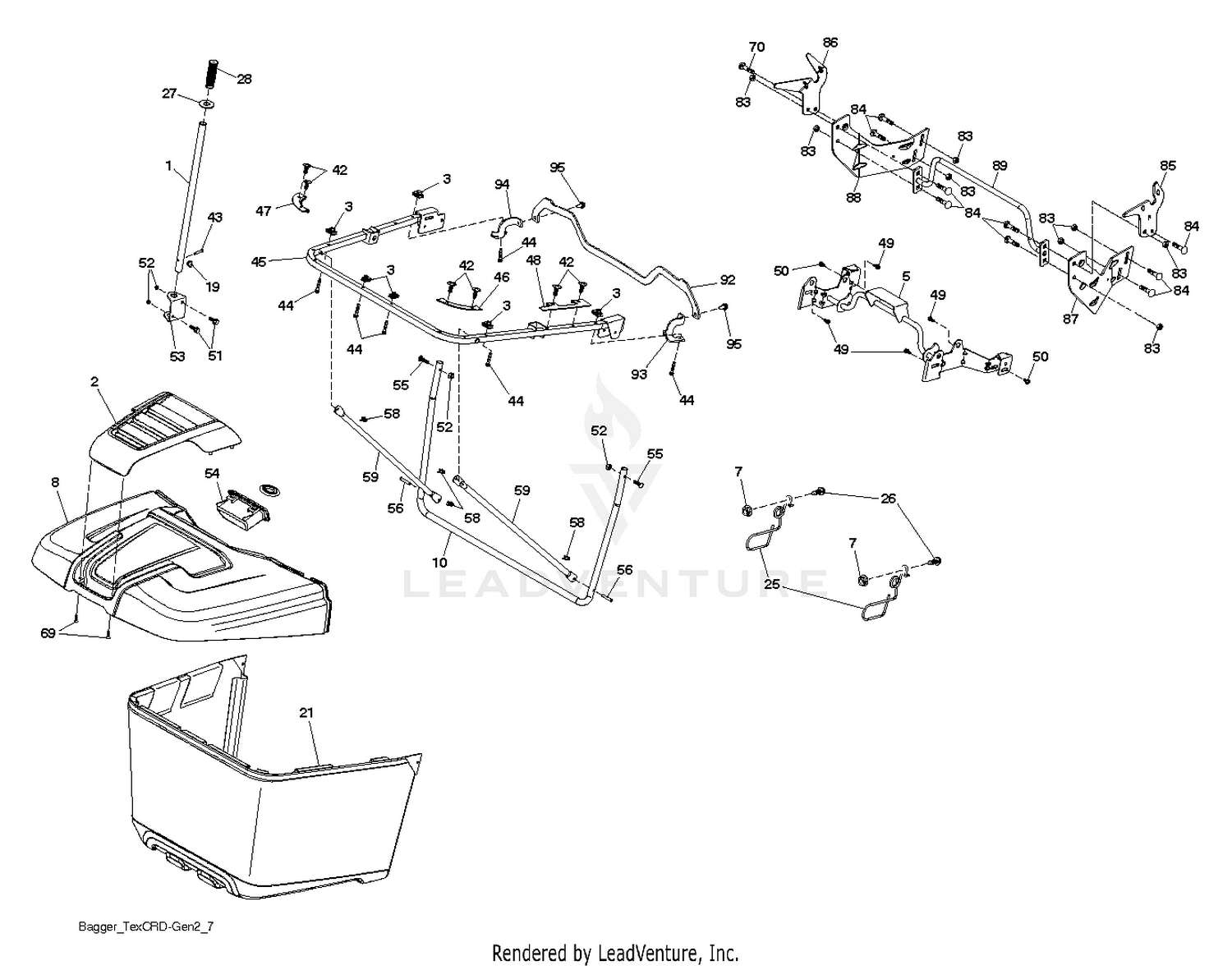

| Ref | Part Number | Description |
|---|
| 1 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 2 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 2 |
583765001 |
APPLIQUE BAGGER This part replaces 532447572. Price: $34.99 |
| 3 |
98-5524 |
LATCH-CENTER UNIT Price: $31.55 |
| 4 |
33114-025 |
SCREW-HH Price: $0.70 |
| 5 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 5 |
583570401 |
TCRD.II.UPR.PIVOT TUBE.WLDMT This part replaces 532443762. Price: $109.99 |
| 6 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 7 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 8 |
583825901 |
BAGGER.TOP This part replaces 532447575. Price: $169.99 |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
583825801 |
BAGGER.FRAME.LOW.UTUBE.TEX.CRD This part replaces 532443755. Price: $29.99 |
| 11 |
322-4 |
SCREW-HH Price: $0.35 |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 13 |
99-3326 |
LIFT ARM ASM - CENTER Price: $916.66 |
| 14 |
98-5338 |
ROD - PIVOT Price: Call Us |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
98-5844 |
EYE SCREW Price: $114.17 |
| 17 |
98-5517 |
SPRING MOUNT Price: $32.66 |
| 18 |
98-5519 |
KNOB Price: $24.59 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 19 |
98-5449 |
BUSHING - FLANGE Price: Call Us |
| 20 |
323-12 |
SCREW-HH Price: $1.14 |
| 21 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 21 |
581337103 |
BAGGER.ASM.FABRIC.CRD.GII.HUSQ This part replaces 532445943. Price: $109.99 |
| 22 |
98-5514 |
SHAFT, LIFT PIVOT WELDED Price: $119.09 |
| 23 |
33114-016 |
SCREW-HH Price: $0.27 |
| 24 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
583580301 |
LATCH.BAG.CRD.GEN2 This part replaces 532445528. Price: $5.99 |
| 26 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 27 |
583580401 |
RUBBER.GROMMET.DUMP.TUBE.CRDII This part replaces 532445529. Price: $4.99 |
| 27 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 28 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 42 |
583548101 |
CHRISTMAS.TREE.CLIP This part replaces 532440428. Price: $2.99 |
| 43 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 44 |
532199687 |
SCREW Price: $2.99 |
| 45 |
583570301 |
TCRD.-GEN2.UPPR.U.FRAME.WLDMT This part replaces 532443754. Price: $99.99 |
| 46 |
583580501 |
LH.BGGR.CRNER.CLOSE-OUT.TEXCRD This part replaces 532445541. Price: $7.99 |
| 47 |
583573001 |
LH.BAG.CRNER.CLOSE-OUT.TEXCRD This part replaces 532444079. Price: $6.99 |
| 48 |
583573101 |
TOP.BGGR.SIDE.CLOSE-OUT.TCRDII This part replaces 532444080. Price: $7.99 |
| 49 |
532171873 |
BOLT, SHOULDER 5/16-18 Price: $4.99 |
| 50 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 51 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 52 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 53 |
583573601 |
BRACKET.DUMP.HANDLE.TEX.CRD.G2 This part replaces 532444195. Price: $8.99 |
| 54 |
583827701 |
BAGGER TOP.FRONT.HANDLE This part replaces 532447218. Price: $12.99 |
| 55 |
596030801 |
Bolts This part replaces 872140512. Price: $3.99 |
| 56 |
532420306 |
PIN.CLEVIS.183 Price: $7.99 |
| 58 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 59 |
583826601 |
BAGGER SPRD.TUBE.TEX.CRD.GEN2 This part replaces 532444763. Price: $19.99 |
| 69 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 70 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 83 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 84 |
596728201 |
Bolts This part replaces 872110608. Price: $3.99 |
| 85 |
581314402 |
BRACKET.RH.PIVOT.MAN.DUMP.BLAC Price: $17.99 |
| 86 |
581314302 |
BRACKET.LH.PIVOT.MAN.DUMP.BLAC Price: $14.99 |
| 87 |
581314802 |
BRACKET.RH.MID.SUP.BAG.TEX.CRD Price: $22.99 |
| 88 |
581314702 |
BRACKET.LH.MID.SUP.BAG.TEX.CRD Price: $49.99 |
| 89 |
581315102 |
WELDMENT.OFFSET.STRUT.SUP.BLAC Price: $44.99 |
| 92 |
586052302 |
BRACKET.PNT.BAGGER.TOP.SUPPORT Price: $27.99 |
| 93 |
586052402 |
BRACKET.PNT.RH.SUPPORT.ATTACH Price: $8.99 |
| 94 |
586052502 |
BRACKET.PNT.LH.SUPPORT.ATTACH Price: $8.99 |
| 95 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
