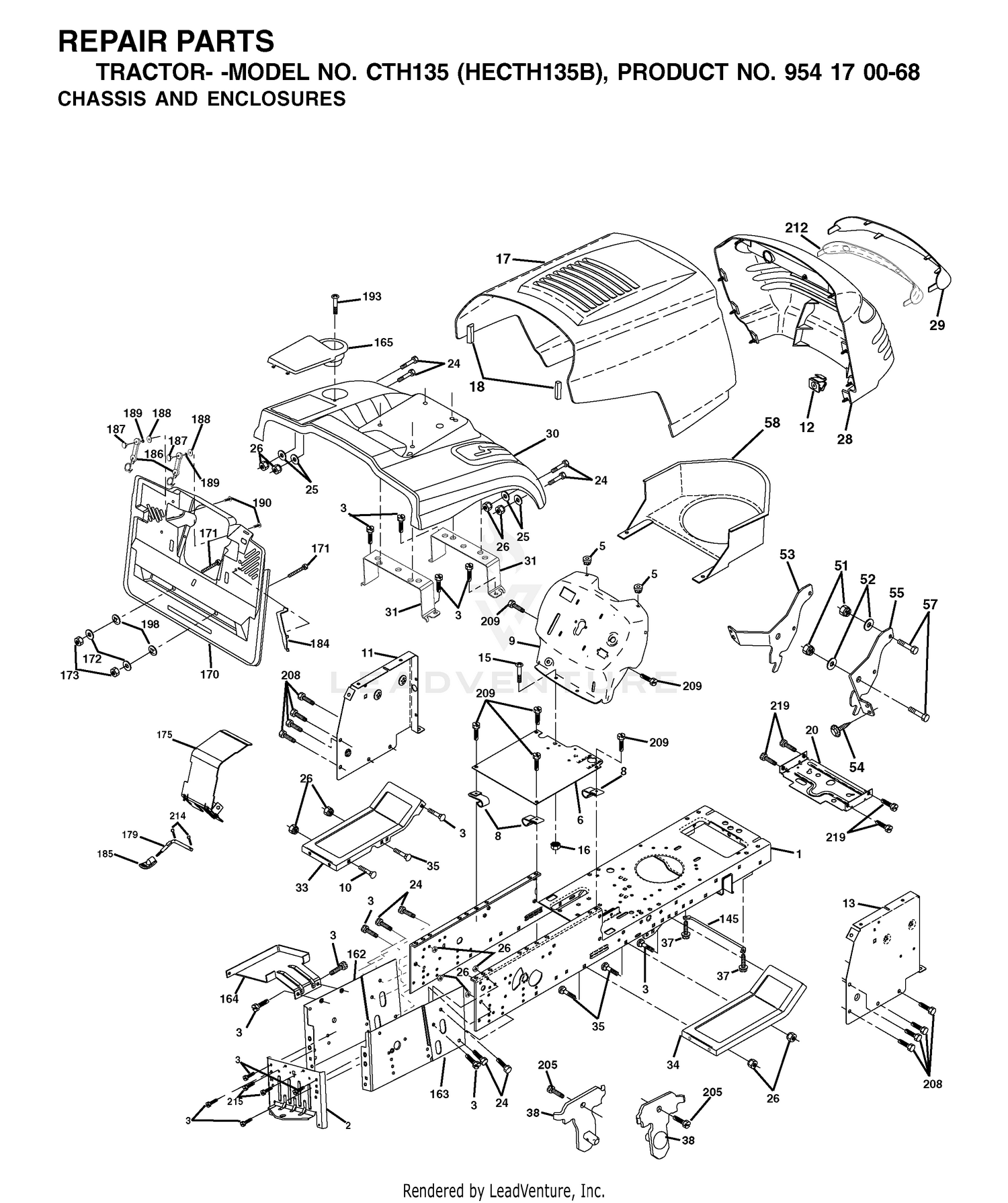

| Ref | Part Number | Description |
|---|
| 1 |
114-8123 |
BOX-STORAGE, LH Price: $162.73 |
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 2 |
114-8125 |
COVER-STORAGE BOX, LH Price: $105.92 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 3 |
114-8132 |
HINGE-COVER Price: $36.68 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
98-1375 |
SCREW-HWH Price: $1.45 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
532155923 |
SADDLE FLAT Price: $11.99 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 9 |
532171796 |
DASH Price: $35.86 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK Price: $9.99 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532179845 |
GRILLE/LENS ASM Price: $173.99 |
| 29 |
532146654 |
GRILLE.LENS This part replaces 532176645. Price: $17.99 |
| 30 |
532175791 |
FENDER.CRD.ORANGE Price: $318.99 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 162 |
583100801 |
BRKT.EXTEN.CHASSIS.LH.CRD This part replaces 532180382. Price: $48.99 |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
583687501 |
COVER.BATTERY.CRD.BLACK.LT This part replaces 532167979. Price: $11.99 |
| 170 |
532178862 |
NEEDS DESCRIPTION Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
532180310 |
NEEDS DESCRIPTION Price: Call Us |
| 179 |
532180376 |
NEEDS DESCRIPTION Price: Call Us |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 193 |
817070412 |
Screw Truss 1/4-20 x 3/4 Tap/R Price: $2.34 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532174503 |
INSERT, LENS This part replaces 532156229. Price: $22.99 |
| 214 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 215 |
817060508 |
SCREW 5/16-18X1/2" Price: $3.99 |
| 219 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
