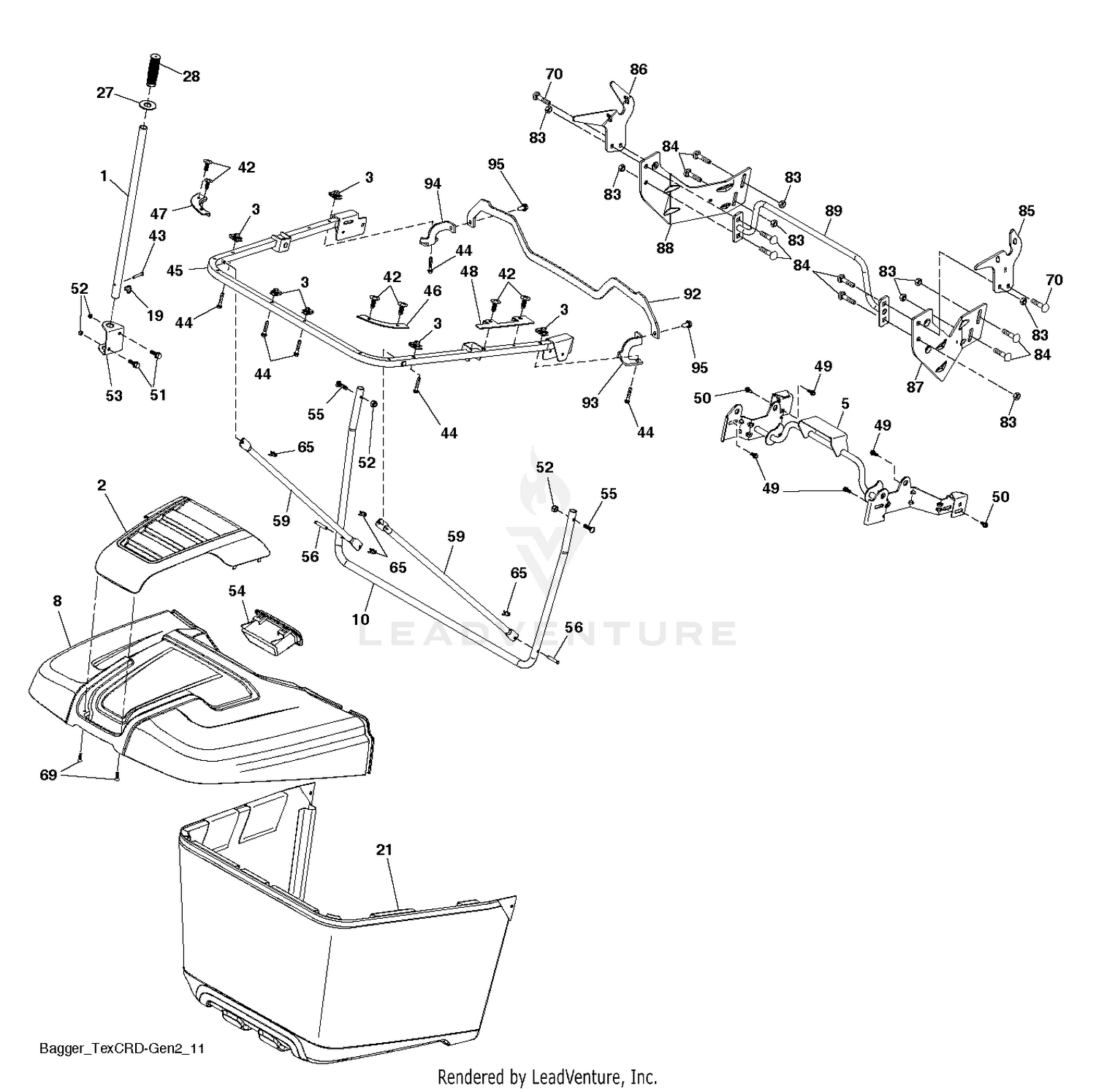

| Ref | Part Number | Description |
|---|
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 2 |
583765001 |
APPLIQUE BAGGER This part replaces 532447572. Price: $34.99 |
| 5 |
583570401 |
TCRD.II.UPR.PIVOT TUBE.WLDMT This part replaces 532443762. Price: $109.99 |
| 8 |
583825901 |
BAGGER.TOP This part replaces 532447575. Price: $169.99 |
| 10 |
583825801 |
BAGGER.FRAME.LOW.UTUBE.TEX.CRD This part replaces 532443755. Price: $29.99 |
| 10 |
98-9685 |
PAN-OIL Price: $337.48 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 21 |
581337103 |
BAGGER.ASM.FABRIC.CRD.GII.HUSQ Price: $109.99 |
| 27 |
583580401 |
RUBBER.GROMMET.DUMP.TUBE.CRDII This part replaces 532445529. Price: $4.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 30 |
98-9351 |
BOLT Price: $0.98 |
| 40 |
114-8151 |
PLUG-DRAIN Price: $9.99 |
| 43 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 44 |
532199687 |
SCREW Price: $2.99 |
| 45 |
583570301 |
TCRD.-GEN2.UPPR.U.FRAME.WLDMT This part replaces 532443754. Price: $99.99 |
| 46 |
583580501 |
LH.BGGR.CRNER.CLOSE-OUT.TEXCRD This part replaces 532445541. Price: $7.99 |
| 47 |
583573001 |
LH.BAG.CRNER.CLOSE-OUT.TEXCRD This part replaces 532444079. Price: $6.99 |
| 48 |
583573101 |
TOP.BGGR.SIDE.CLOSE-OUT.TCRDII This part replaces 532444080. Price: $7.99 |
| 49 |
532171873 |
BOLT, SHOULDER 5/16-18 Price: $4.99 |
| 50 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 50 |
98-7524 |
GASKET Price: $5.09 |
| 51 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 52 |
596583702 |
Nuts Price: $2.99 |
| 53 |
583573601 |
BRACKET.DUMP.HANDLE.TEX.CRD.G2 This part replaces 532444195. Price: $8.99 |
| 54 |
583827701 |
BAGGER TOP.FRONT.HANDLE This part replaces 532447218. Price: $12.99 |
| 55 |
596030801 |
Bolts Price: $3.99 |
| 56 |
532420306 |
PIN.CLEVIS.183 Price: $7.99 |
| 59 |
583826601 |
BAGGER SPRD.TUBE.TEX.CRD.GEN2 This part replaces 532444763. Price: $19.99 |
| 60 |
108-1401 |
BASE-FILTER This part replaces 112-7044. Price: $71.88 |
| 65 |
532004497 |
RETAINER M Price: $4.99 |
| 69 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 70 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 70 |
98-7526 |
BOLT Price: $0.80 |
| 80 |
105-3776 |
O-RING Price: $5.77 |
| 83 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 84 |
596728201 |
Bolts Price: $3.99 |
| 85 |
581314402 |
BRACKET.RH.PIVOT.MAN.DUMP.BLAC Price: $17.99 |
| 86 |
581314302 |
BRACKET.LH.PIVOT.MAN.DUMP.BLAC Price: $14.99 |
| 87 |
581314802 |
BRACKET.RH.MID.SUP.BAG.TEX.CRD Price: $22.99 |
| 88 |
581314702 |
BRACKET.LH.MID.SUP.BAG.TEX.CRD Price: $49.99 |
| 89 |
581315104 |
TUBE.WELD.OFSET.STRUT.BAG.X431 Price: $24.99 |
| 90 |
104-9348 |
GAUGE-OIL This part replaces 107-9076. Price: $63.11 |
| 92 |
586052302 |
BRACKET.PNT.BAGGER.TOP.SUPPORT Price: $27.99 |
| 93 |
593682102 |
BRACKET.SUPP.ATTACHMENT.RH.431 Price: $1.99 |
| 94 |
593144502 |
BRCKT.ATTACHMENT.SUPP.LH.X431 Price: $4.99 |
| 95 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
