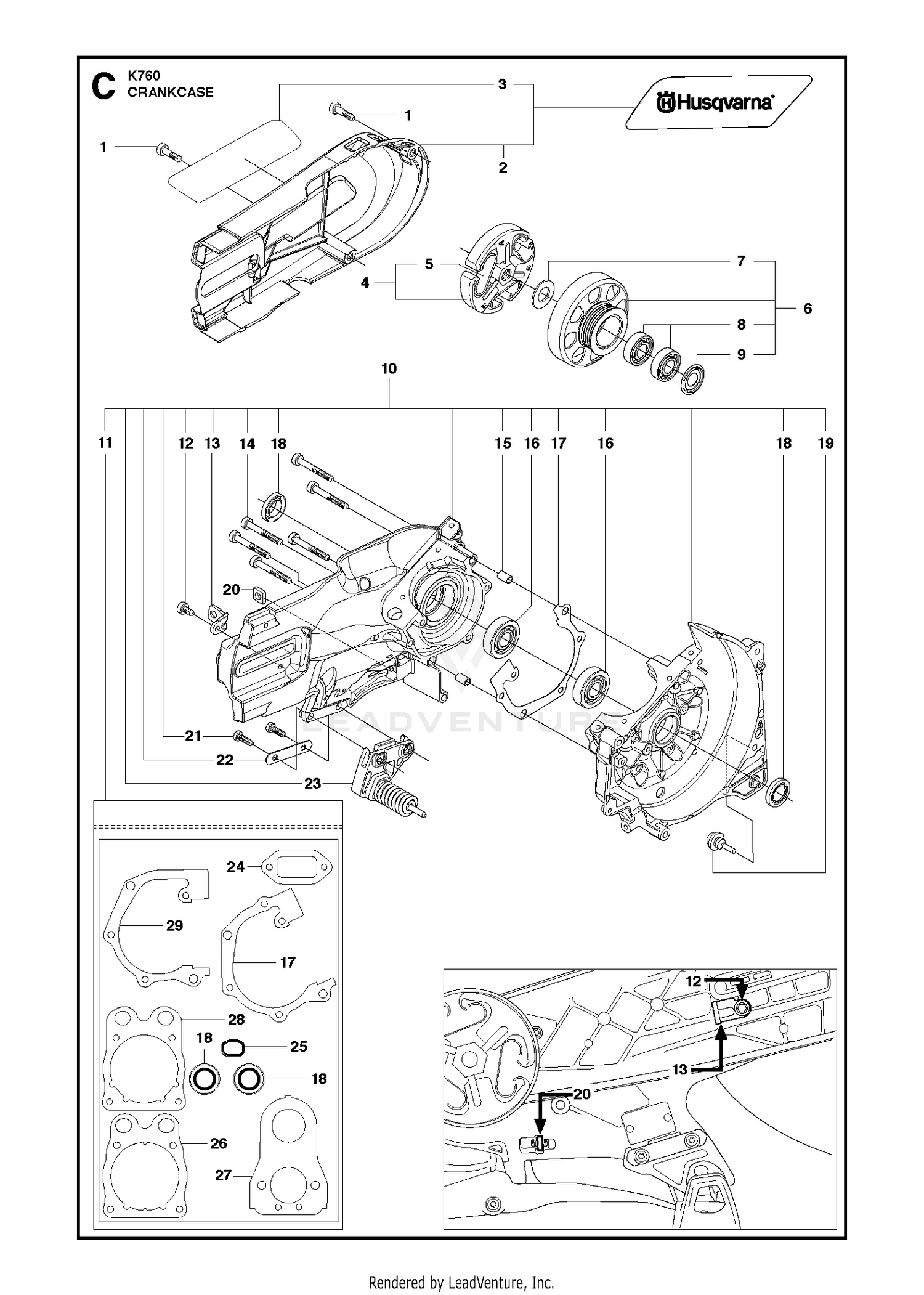

CRANKCASE
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501981020 | SCREW ITXSCM Price: $6.99 |
| 3 | 575628501 | DECAL Price: $3.99 |
| 5 | 503744301 | CLUTCH SPRING Price: $4.99 |
| 7 | 503230070 | WASHER Price: $3.99 |
| 8 | 525831801 | HOLDER BALL BEARING Price: $14.99 |
| 9 | 506316901 | DUST COVER Price: $3.99 |
| 13 | 544007801 | BRACKET Price: $4.99 |
| 14 | 503215341 | SCREW Price: $3.99 |
| 15 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 16 | 738220225 | BALL BEARING-6202-C3 SKF Price: $19.99 |
| 19 | 503846101 | BUFFER Price: $4.99 |
| 20 | 503226504 | NUT Price: $4.99 |
| 21 | 503215316 | SCREW Price: $3.99 |
| 22 | 522474801 | WASHER Price: $3.99 |
| 23 | 598586901 | SPRING RETAINER ASSY This part replaces 522475701. Price: $14.99 |
| 24 | 588932501 | GASKET K760 This part replaces 506376902. Price: $5.99 |
| 25 | 544219302 | INSERT Price: $3.99 |
| 26 | 581285301 | GASKET Price: $4.99 |
| 27 | 506376804 | GASKET CARBURETOR Price: $3.99 |
| 28 | 506376701 | GASKET Price: $7.99 |
