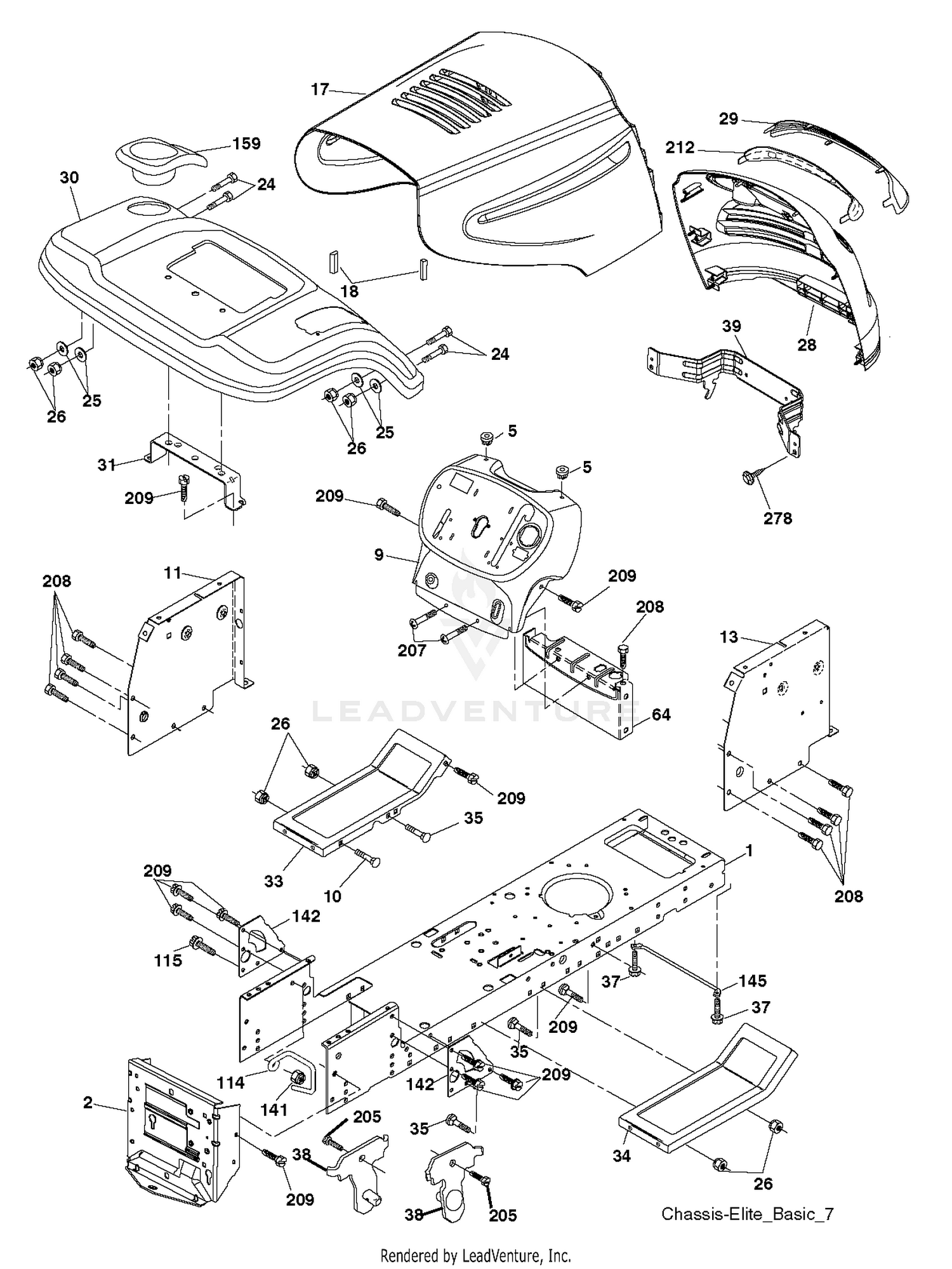

| Ref | Part Number | Description |
|---|
| 1 |
112-0029 |
SPIKER ADAPTER ASM Price: $981.19 |
| 1 |
532174619 |
CHASSIS STAMPING Price: $84.99 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $24.99 |
| 3 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 4 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 5 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
92-2651 |
WASHER Price: $1.83 |
| 7 |
112-0038 |
SPACER Price: $7.34 |
| 8 |
99-7984 |
KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 9 |
112-7695-03 |
HANDLE Price: $53.91 |
| 9 |
532433353 |
DASH Price: $29.99 |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 10 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 11 |
75-5270 |
SPACER-KNOB, SEAT This part replaces 99-2058. Price: $4.61 |
| 12 |
144-7093 |
LINK ASM This part replaces 110-8105. Price: $105.96 |
| 13 |
323-10 |
SCREW-HH Price: $0.89 |
| 14 |
112-7686 |
LATCH Price: $40.54 |
| 15 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 17 |
532185847 |
HOOD.STEEL.ELITE.YELLOW Price: $84.99 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $3.99 |
| 24 |
874780616 |
BOLT Price: $3.99 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 29 |
532189837 |
LENS.GRILLE.BASIC.BAR.LT.CLR Price: $11.99 |
| 30 |
532445888 |
FENDER.LTST.W/SHFT.CUP.YELLOW Price: $109.99 |
| 31 |
532136619 |
BRACKET FENDER Price: $3.99 |
| 33 |
532183081 |
FOOTREST.LH.YELLOW Price: $14.99 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532183080. Price: $17.99 |
| 35 |
872110606 |
BOLT Price: $2.99 |
| 37 |
817490508 |
SCREW LT Price: $3.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $5.99 |
| 39 |
532407807 |
BRACKET PIVOT Price: $14.99 |
| 64 |
532154798 |
DASH LOWER Price: $22.99 |
| 114 |
584448901 |
KEEPER-BELT,RR.LH This part replaces 532158112. Price: $5.99 |
| 115 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 141 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD Price: $8.99 |
| 159 |
532185635 |
CUPHOLDER.BLACK Price: $7.99 |
| 205 |
817490608 |
SCREW LT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $3.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 212 |
532183823 |
INSERT.LENS.REFLECTIVE.LEFT Price: $11.99 |
| 278 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
