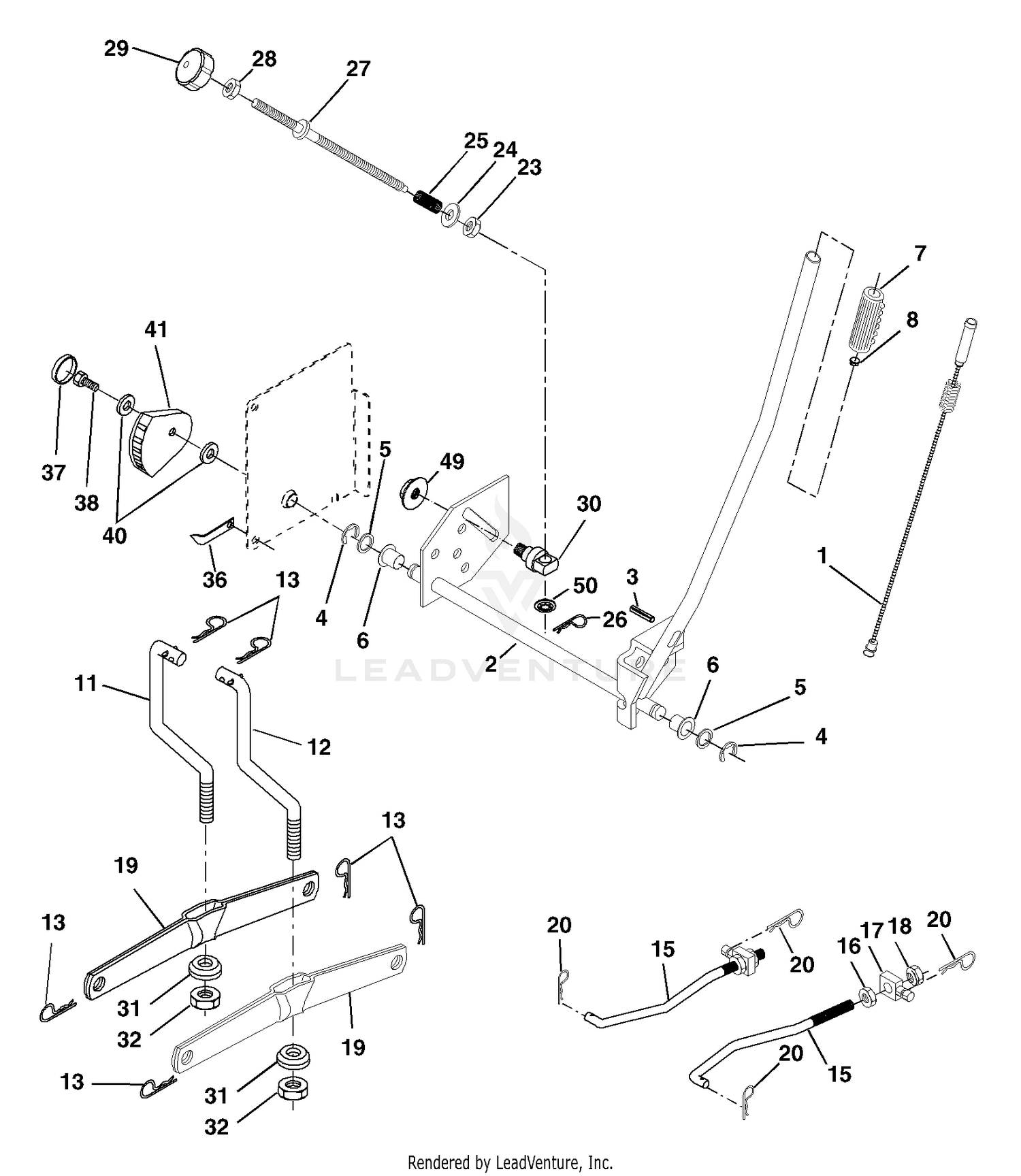

| Ref | Part Number | Description |
|---|
| 1 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 1 |
532159460 |
WIRE ASM INNER W/ PLUNGER LT Price: $22.99 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 2 |
93-7832 |
DECAL-CAUTION Price: $26.67 |
| 3 |
21-2660-01 |
PLATE-SIDE Price: $299.86 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
105-2596-01 |
FENDER ASM Price: $104.53 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
107-2918 |
DECAL-DANGER This part replaces 93-7806. Price: $30.43 |
| 10 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 11 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
32103-2 |
NUT-WING Price: $0.68 |
| 15 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
2412-4 |
CLAMP-R Price: $4.22 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 22 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
38-4550-03 |
COVER-INSTRUMENTS Price: $448.71 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 25 |
93-7823 |
DECAL-OIL Price: $17.79 |
| 26 |
105-2565 |
BATTERY COVER ASM Price: $83.52 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 27 |
532126971 |
ROD ADJ LIFT Price: $5.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 28 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 29 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
93-7822 |
DECAL-REFUELING Price: $17.17 |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 32 |
93-3183 |
TOOL BOX ASM This part replaces 93-3182-03. Price: $240.67 |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 34 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 37 |
68-8610-01 |
EXTENSION-FENDER Price: $186.20 |
| 38 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 39 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 40 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532155098 |
IND. HEIGHT STLT Price: $4.99 |
| 41 |
88-0070-01 |
PLATE-FLOOR Price: $169.68 |
| 42 |
93-7839 |
DECAL-DANGER Price: $37.36 |
| 43 |
93-7626-01 |
FENDER-RH Price: $177.45 |
| 44 |
93-3177-03 |
COVER-BOX, TOOL Price: $56.35 |
| 47 |
98-3879 |
DISCONTINUED Price: Call Us |
| 48 |
93-7410-01 |
PANEL-FOOTREST Price: $44.33 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 49 |
66-3200 |
TREAD-FOOTREST, LH Price: $7.38 |
| 51 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 52 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 53 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
